12. Card Cage

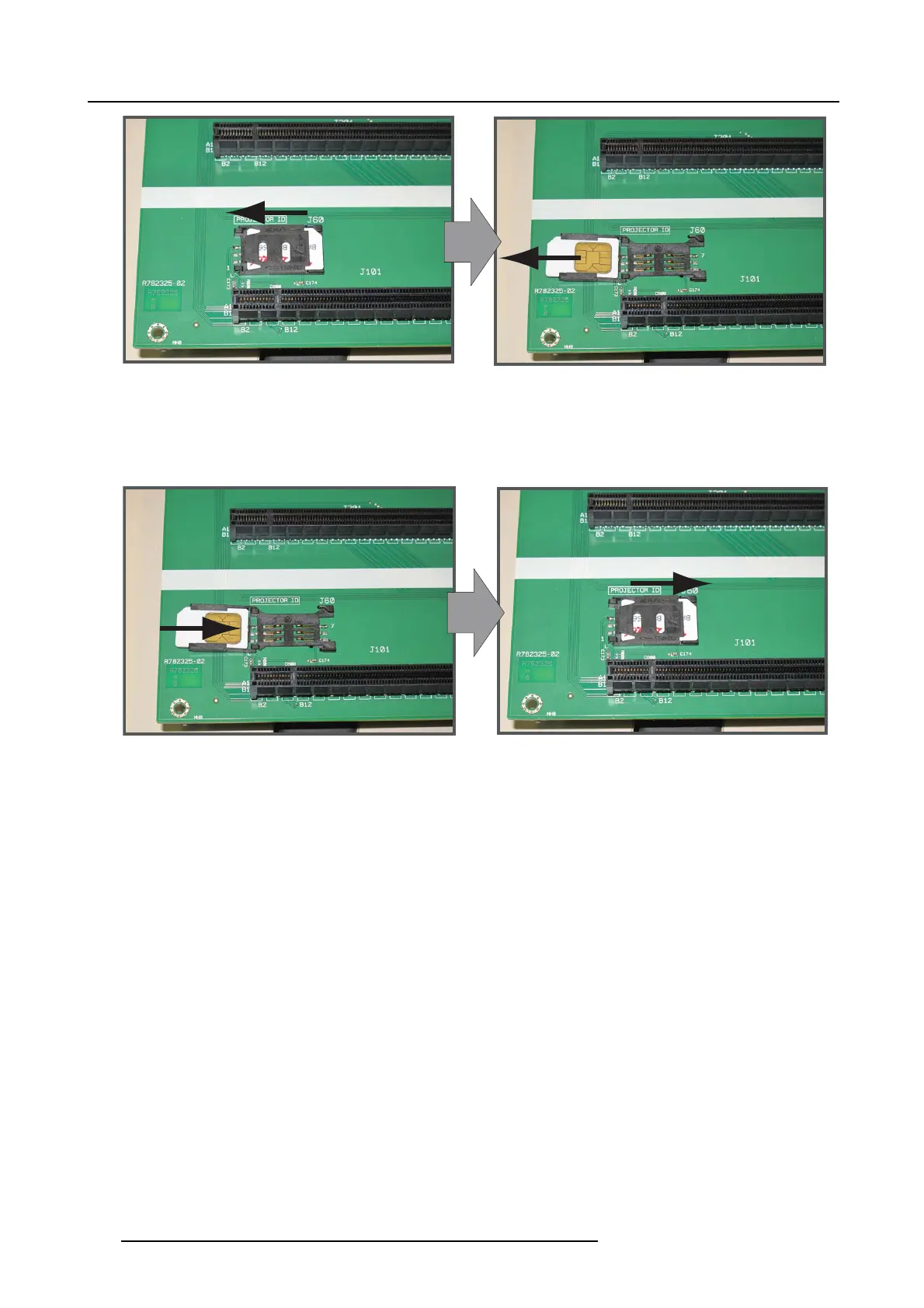

Image 12-45
Projector ID card removal
Mounting new signal backplane
1. Open the Projector Id car d h older by pushing it a few millimeters to the left and turn it over.
Insert the Projector ID card with the chip upward s.
Turn the holder ba ck, pus h it a little bit down while sliding it to the right until it locks.
Image 12-46
Projector ID card, installation
2. Take the ne w backplane and slight the right side under an angle through the gap in the side of the card cage.
Pivot the bac kplane on its place.
236
R5905043 DP2K-12C/11CX 19/02/2018
