12. Card Cage
1 2 3 4

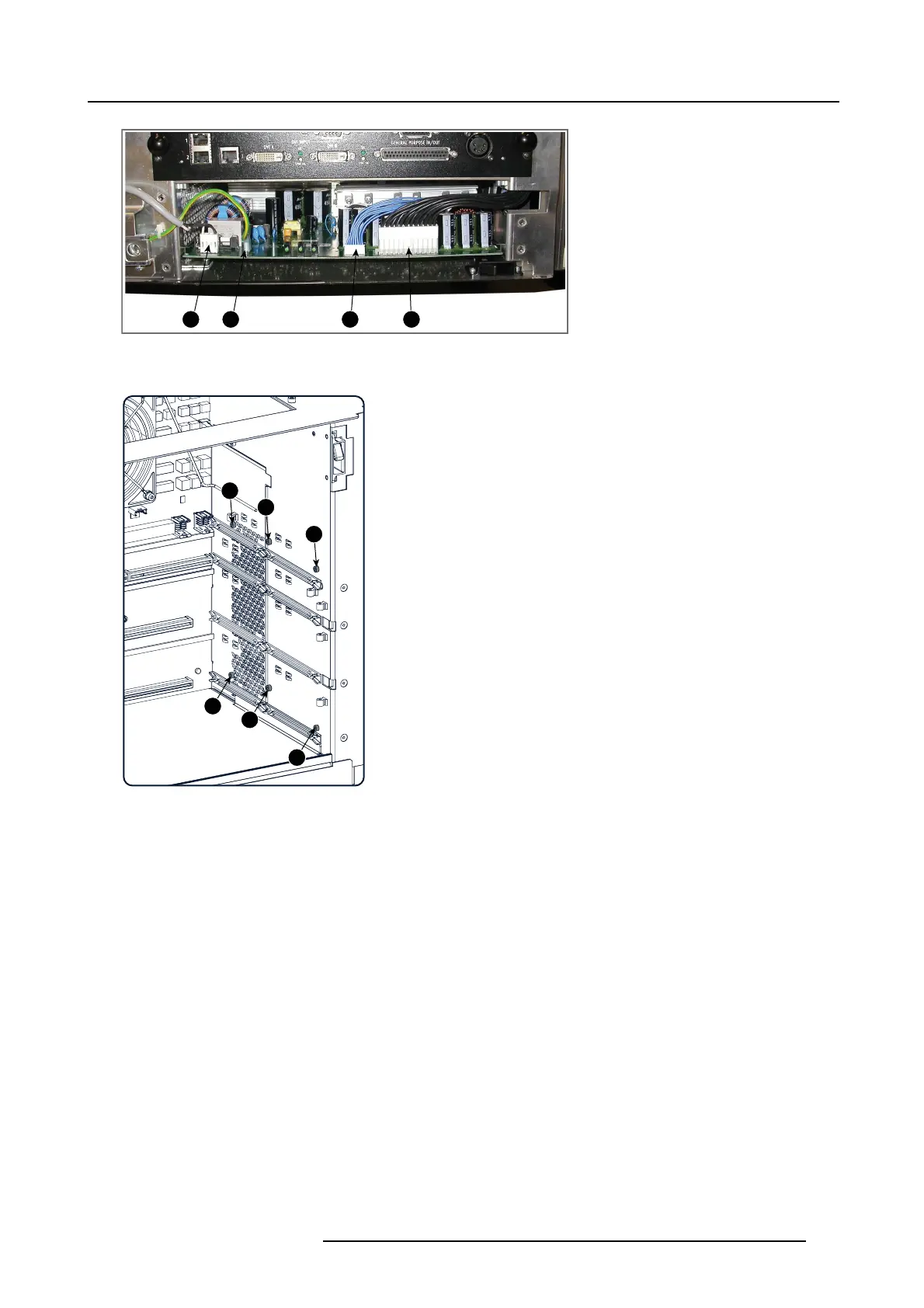

Image 12-51
SMPS connections
6. From the inside of the car d cage, drive in screw 1 to 6 to fixate the fan assembly.
1
2
3
4
5
6
Image 12-52
Side card cage, screws
7. Make all electrical connections. See “Electrical connections” further in this topic for more info
8. Insert the lower intermediary plate and drive in both fixation screws.
Repeat for th e sec ond interme diary plate and the upper plate (plate with fan)
R5905043 DP2K-12C/11CX 19/02/2018
239
