Barco DP2K-12C

20. Fan replacement procedure

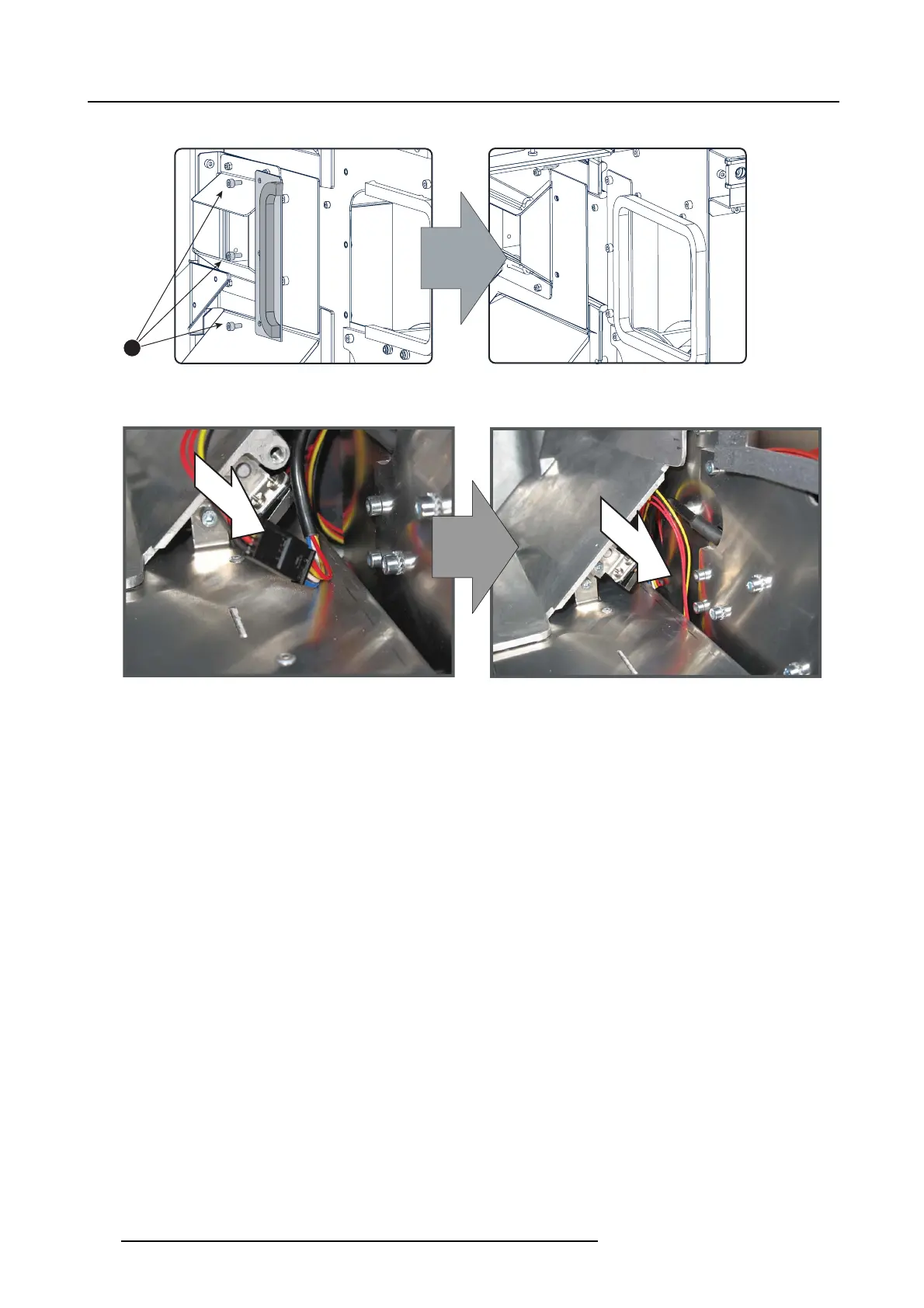

8. Install the sm all side plate of the air channel with three screws (reference 9).
9
Image 20-17
Small side plate, mounting
9. Reconnect the wire unit of the cathod e fan a nd hide the connec tor behind the p late.
Image 20-18
Cathode fan, power connection
10.R einstall t he left side panel o f the lamp compa rtment with six screws (reference 10).
322
R5905043 DP2K-12C/11CX 19/02/2018
