20. Fan replacement procedure
6

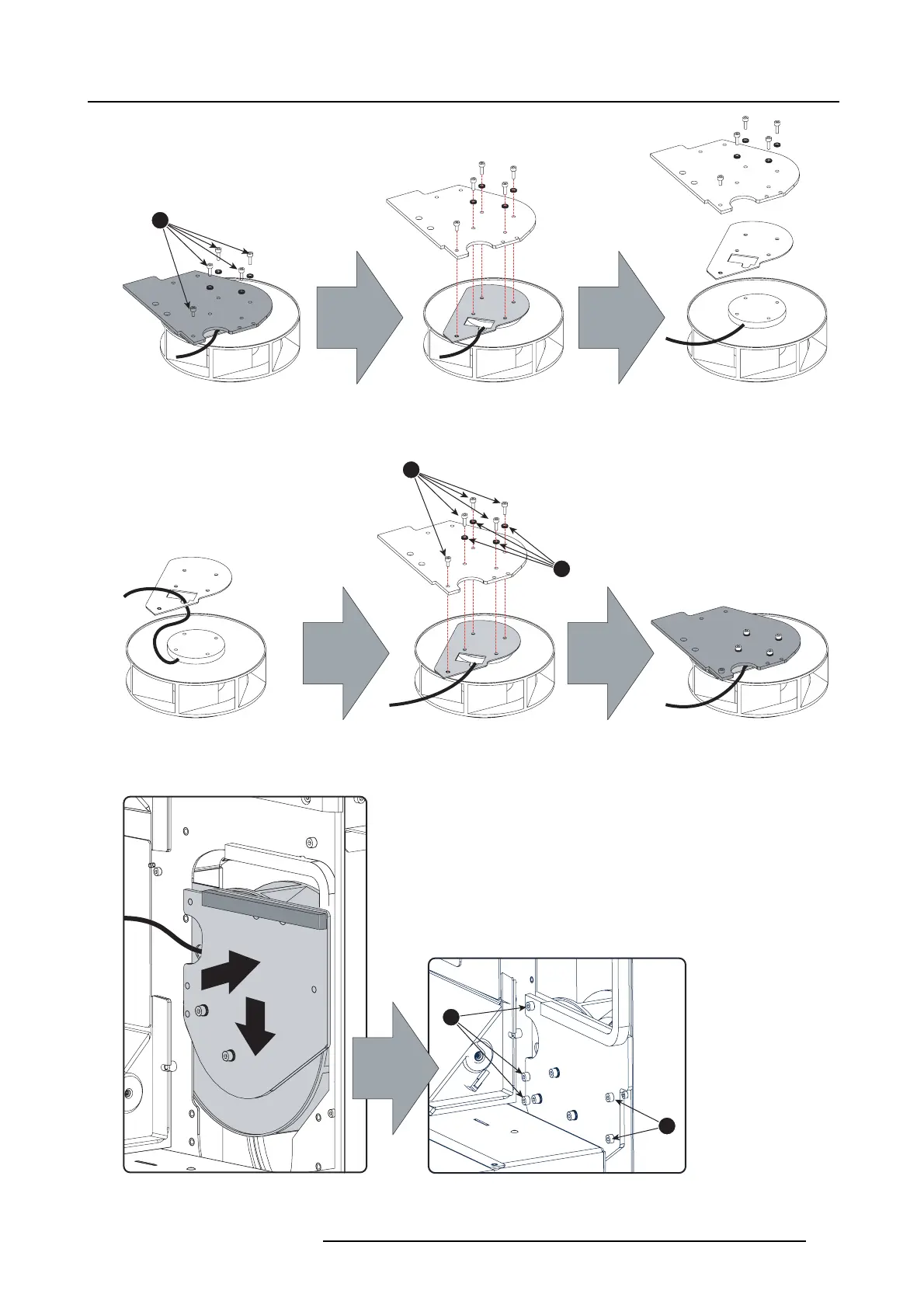

Image 20-14
Cathode fan disassembling unit
6. Fasten the two plates upon the new cathode fan with five screws (reference 6). Provide the four screws in t he center with a
washer (reference 7). Note that the wire unit of the fan must be guided trough the hole of the lower plate.
6
7
Image 20-15
Assembling the unit
7. Install the fan assembly back in its com partment with five screws (reference 8). U se a 3 mm Allen wrench.
Caution: Make sure that the wire unit of the fan does not get jammed.
8
8
Image 20-16
Cathode fan assembly, mounting
R5905043 DP2K-12C/11CX 19/02/2018 321
