20. Fan replacement procedure
9
9

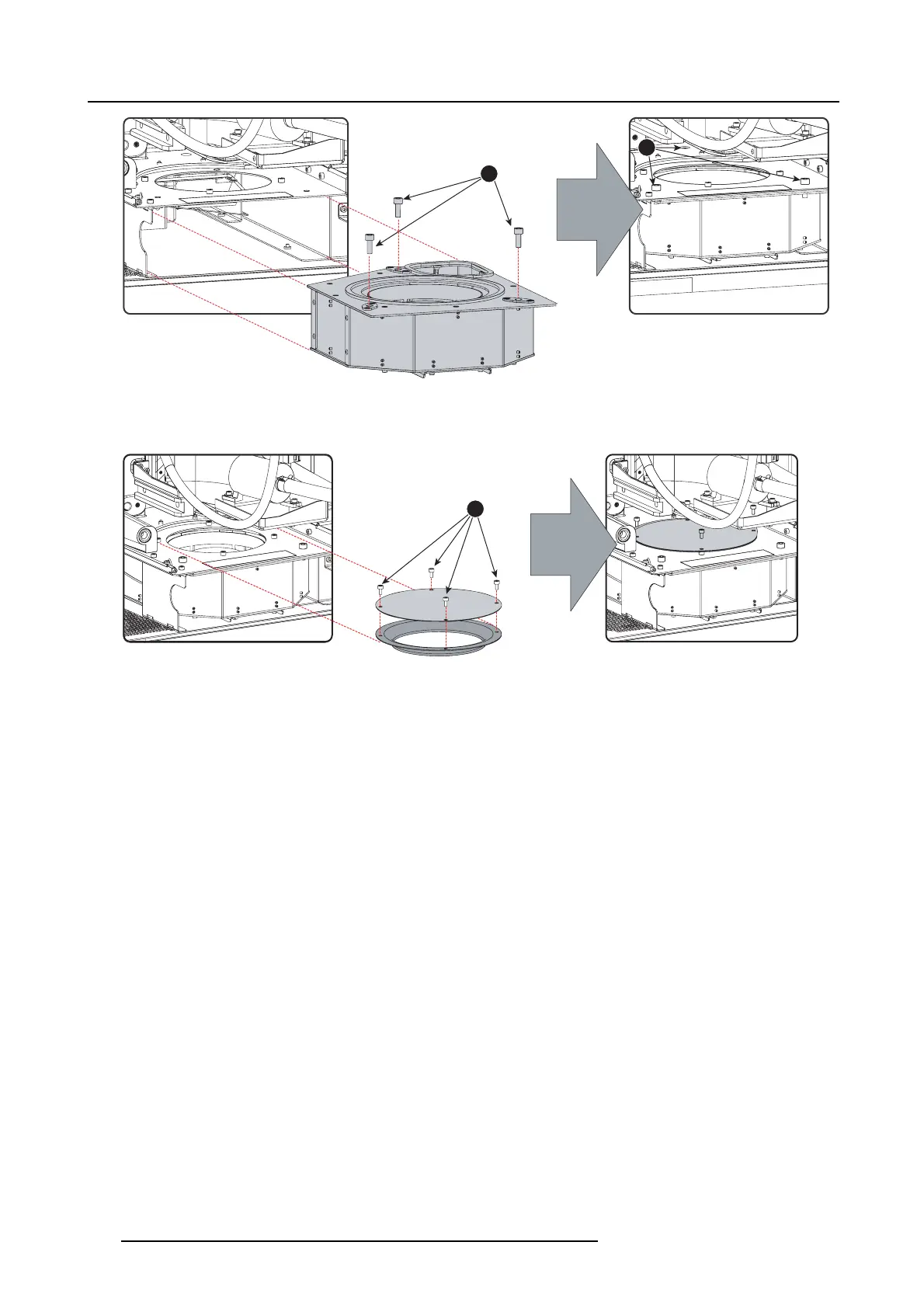

Image 20-25
Insert fan assembly
7. Reinstall the anode fan bez el and security guard. Use a 3 mm A llen wrench to sec ure the four hexagon socket head cap s crews
(reference 10).
10
Image 20-26
Mount fan security guard
8. Reconnect the wire unit of the anode fan (reference 1 on image 20-20).
326
R5905043 DP2K-12C/11CX 19/02/2018
