5.8. Module Configuration with configuration data
Note:
For every connection which includes configuration data (see entries with “+ Config”) the configured data is
downloaded at connection establishment (“Forward Open” event, e.g. at power-on).

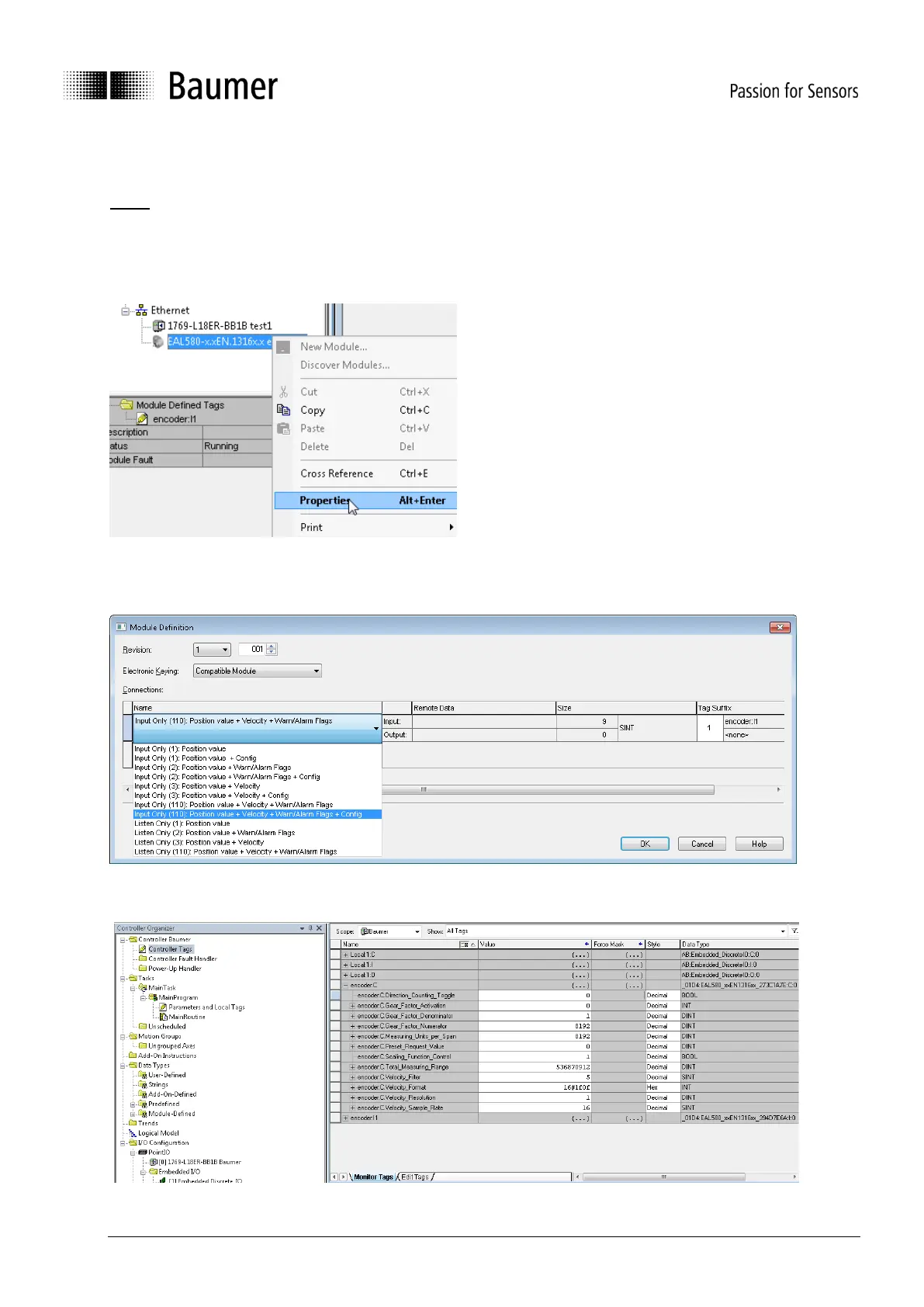

Right-click on symbol of EAx580 EtherNet/IP encoder in Controller Organizer window:
Click on “Properties”. Select “Change” on Tab “General”. Select appropriate connection:
View and edit configuration data in “Controller Tags”:
