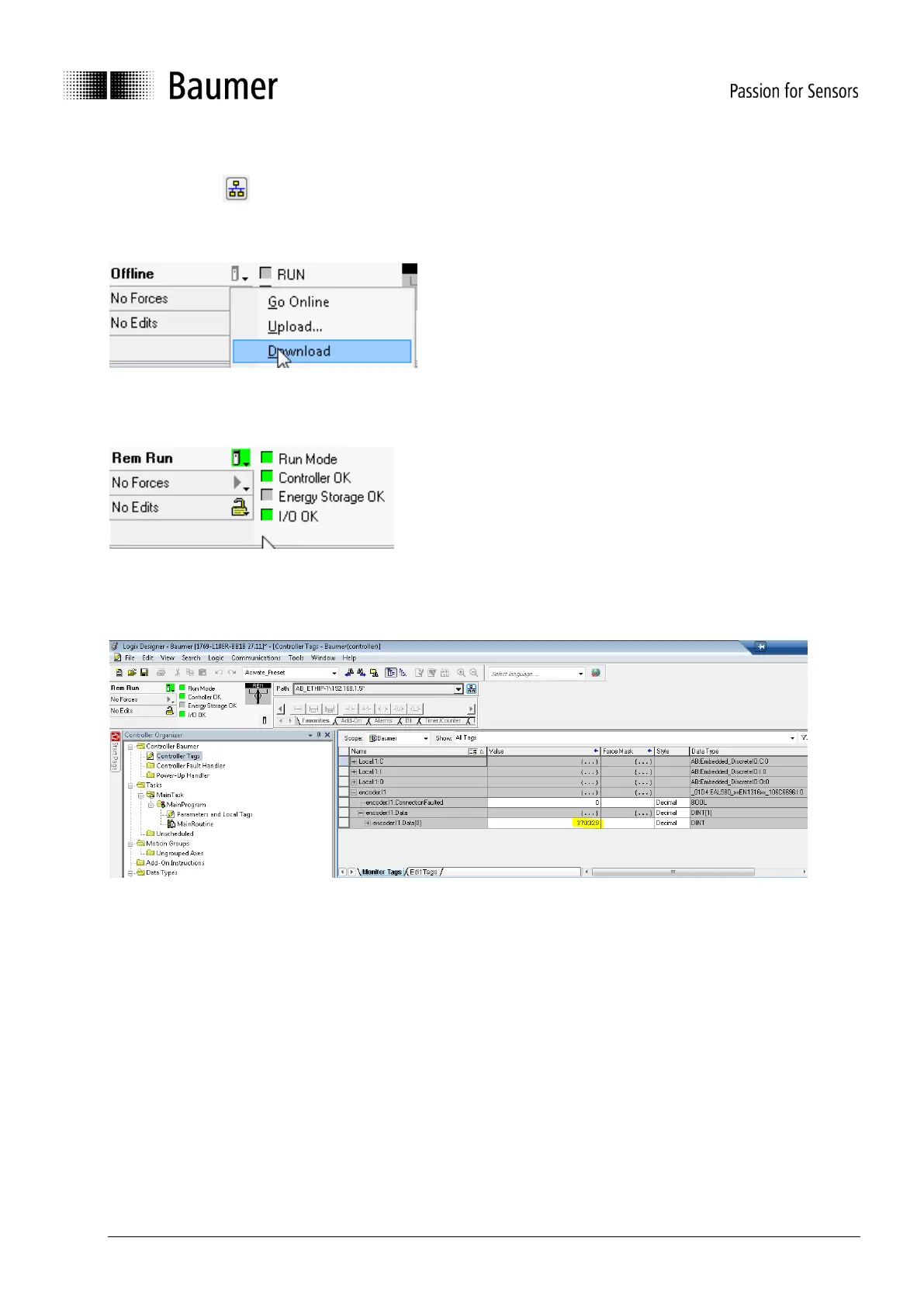

Baumer_EAx_EtherNetIP_EN_MNL 20/81 www.baumer.com
02.20
5.4.2. Set network path and download configuration
Click on symbol to select the network path to the PLC.
Click “Download” to download the project to the PLC:
If the encoder is configured and running the following is shown.
5.4.3. View encoder data using controller tags
Double-click on “Controller Tags” and watch values at tab Monitor Tags”:
