Baumer EA Series User Manual

Baumer_EAx_EtherNetIP_EN_MNL 32/81 www.baumer.com
02.20

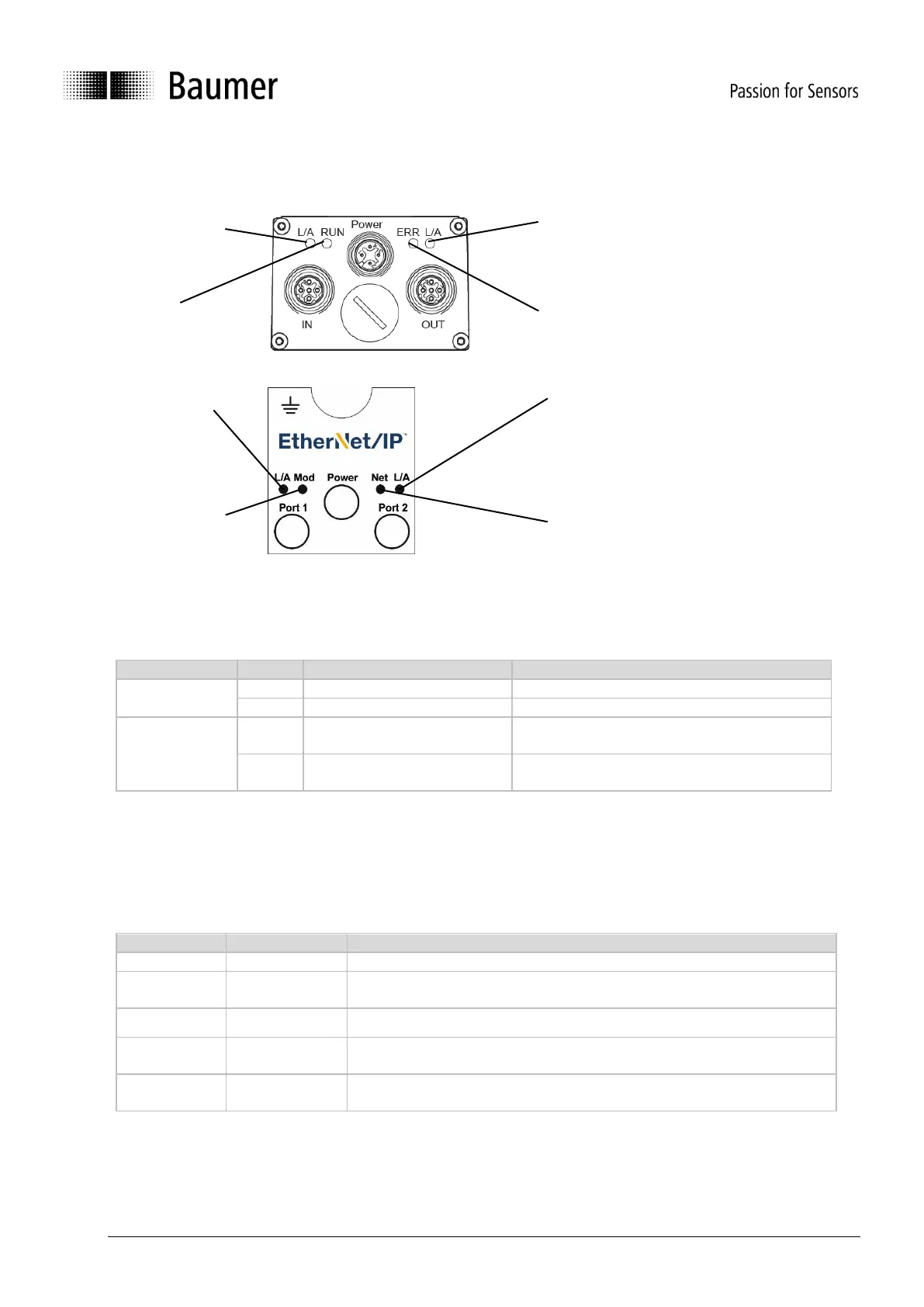

6.3. Diagnostic LEDs
The LEDs of the encoder have the following meaning.
Link / Activity
Module Status
Link / Activity
Network Status
Link / Activity
Module Status
Link / Activity
Network Status
6.3.1. Link/Activity (L/A) LEDs
The encoder provides two Duo LEDs to indicate the status of the Ethernet ports. The following table shows
the different possible states of the link/activity LEDs.
LED
Color
Status
Description
LINK
(Port 1 and 2)
Green
On
The device is linked to Ethernet.
Green
Off
The device has no link to Ethernet.
ACT
(Port 1 and 2)
Red
Flickering (load dependent)
The device sends/receives
Ethernet frames.
Red
Off
The device does not send/receive Ethernet
frames.
If the device is linked to Ethernet and sends/receives Ethernet frames the related L/A LED will give a visual
impression of a mix of the colors green and red.
6.3.2. Network Status Indicator
The encoder provides a Duo LED to indicate the network status of the device.
Color
Status
Description
Green
On
Connected: The device has at least one established connection.
Green
Flashing (1 Hz)
No Connections: The device has not established connections but
has obtained an IP address.
Green/Red
Flashing (1 Hz)
Self-test: The device is performing its power-up testing.
Red
On
Duplicate IP: The device has detected that its IP address is already
in use.
Off
Off
Not powered, no IP address: The device does not have an IP
address or the power supply of the device is switched off.
