Baumer_EAx_EtherNetIP_EN_MNL 27/81 www.baumer.com
02.20

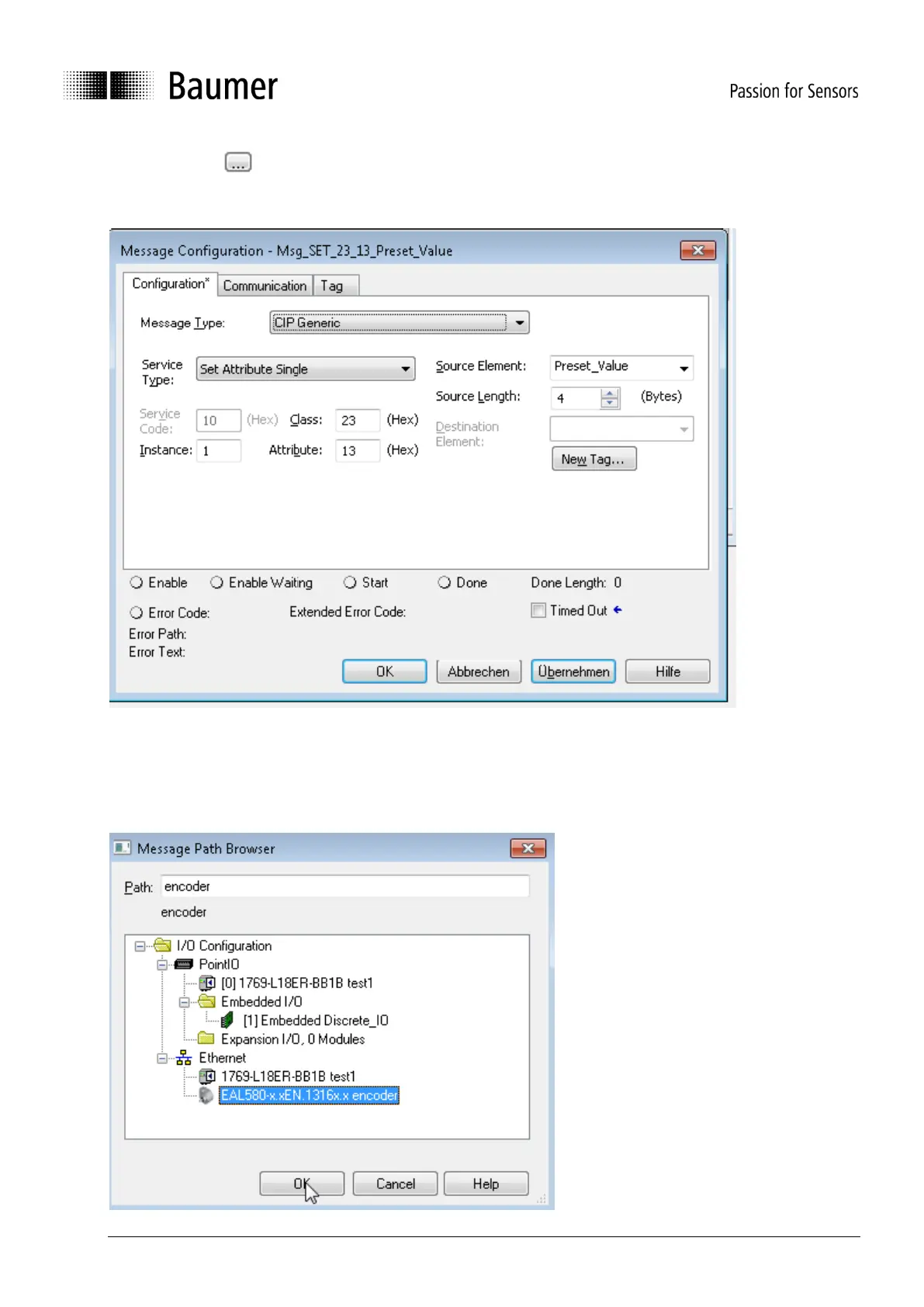

Click on symbol of “MSG” box (see above). A configuration window appears. To write the preset value
(instance attribute 0x13 of Position Sensor Object) insert the following values in the configuration window. Be
careful to set all fields as shown below.
Before you can click on “Übernehmen” (apply) in tab “Configuration” you have to open tab “Communication”
to set the path to the encoder.
Click on “Browse…”, select encoder and click OK.
