4-28
TotalAlert Innity™ HTM Medical Gas Notication System
4107 9016 60.01

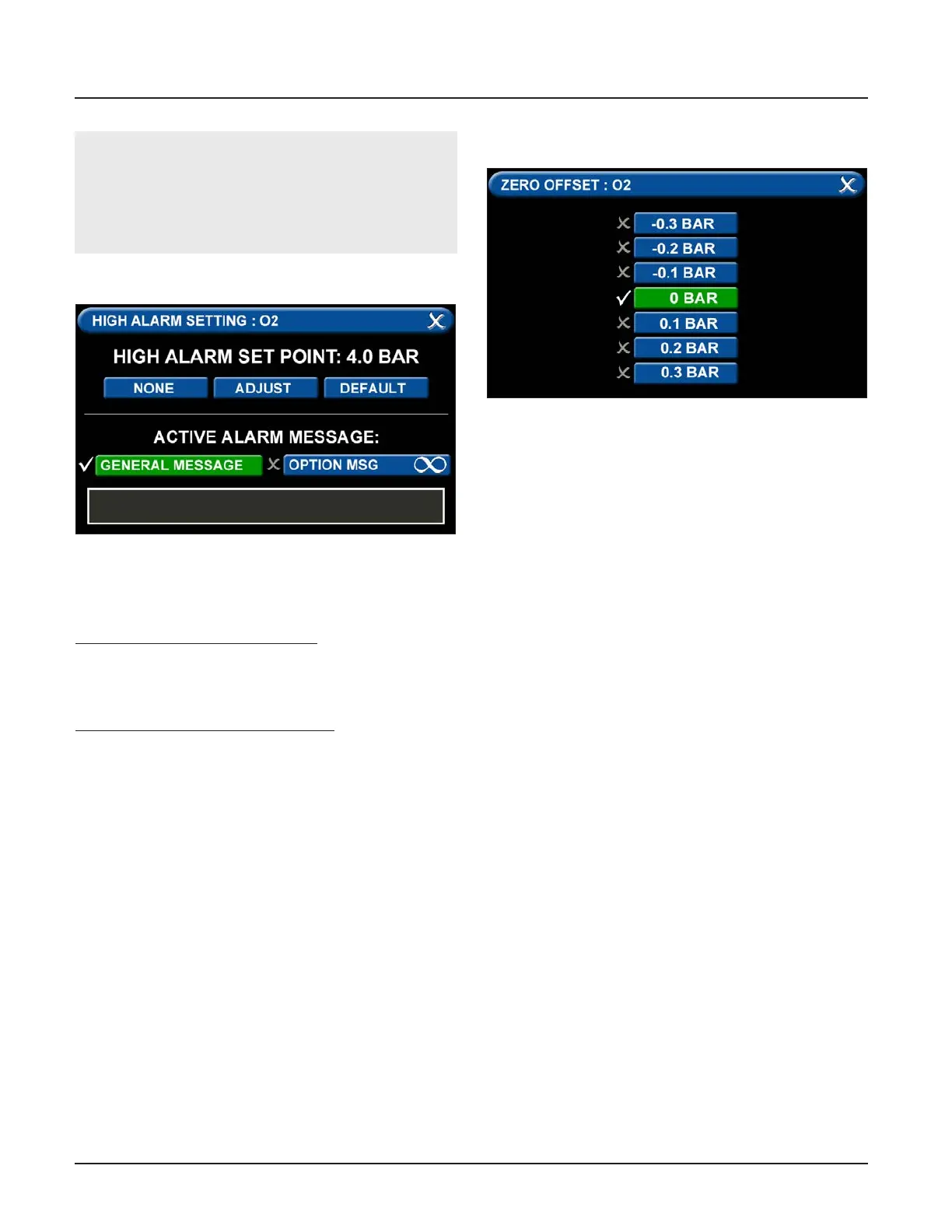

Figure 96: High Alarm Settings Tab
Figure 97: Zero Oset Tab
H = Zero Oset Tab
In some cases, facility dial gauges may show slightly
dierent readings than the TotalAlert alarm (e.g., 3.1
BAR versus 3.0 BAR). To match the TotalAlert alarm
exactly to a facility dial gauge:
1. Select the oset amount.
2. Touch the Save button to close the screen.
Conguring Additional Area Badges
Congure additional area badges by touching the
number on the numeric display that corresponds with
the area badge and repeating the steps listed above.
Active Alarm Instruction:
To set facility instructions for active alarms, touch
either the GENERAL MESSAGE or OPTION MSG tab.
The alarm defaults to GENERAL MESSAGE. See Sec-
tion 4.6 for how to set up custom instructions.
G = High Alarm Settings Tab
You can remove the high alarm set point or customize
the high alarm set point.
To remove the high alarm set point:
1. Touch the NONE tab.
2. Touch the check on the CONFIRM SETTINGS
CHANGE screen.
To customize the high alarm set point:
1. Touch the ADJUST tab.
2. Enter the new set point.
3. Touch the Save button.
