4-34
TotalAlert Innity™ HTM Medical Gas Notication System
4107 9016 60.01
C = [Gas Name] Tab
Use the keyboard to assign a device name. Type in the
name of the device to be monitored. Touch the [<ÁÑ]
to toggle to symbols and extended Latin Characters.
Touch the [1AZ] key to toggle back to letters and
numbers.
Touch the Save button when complete.

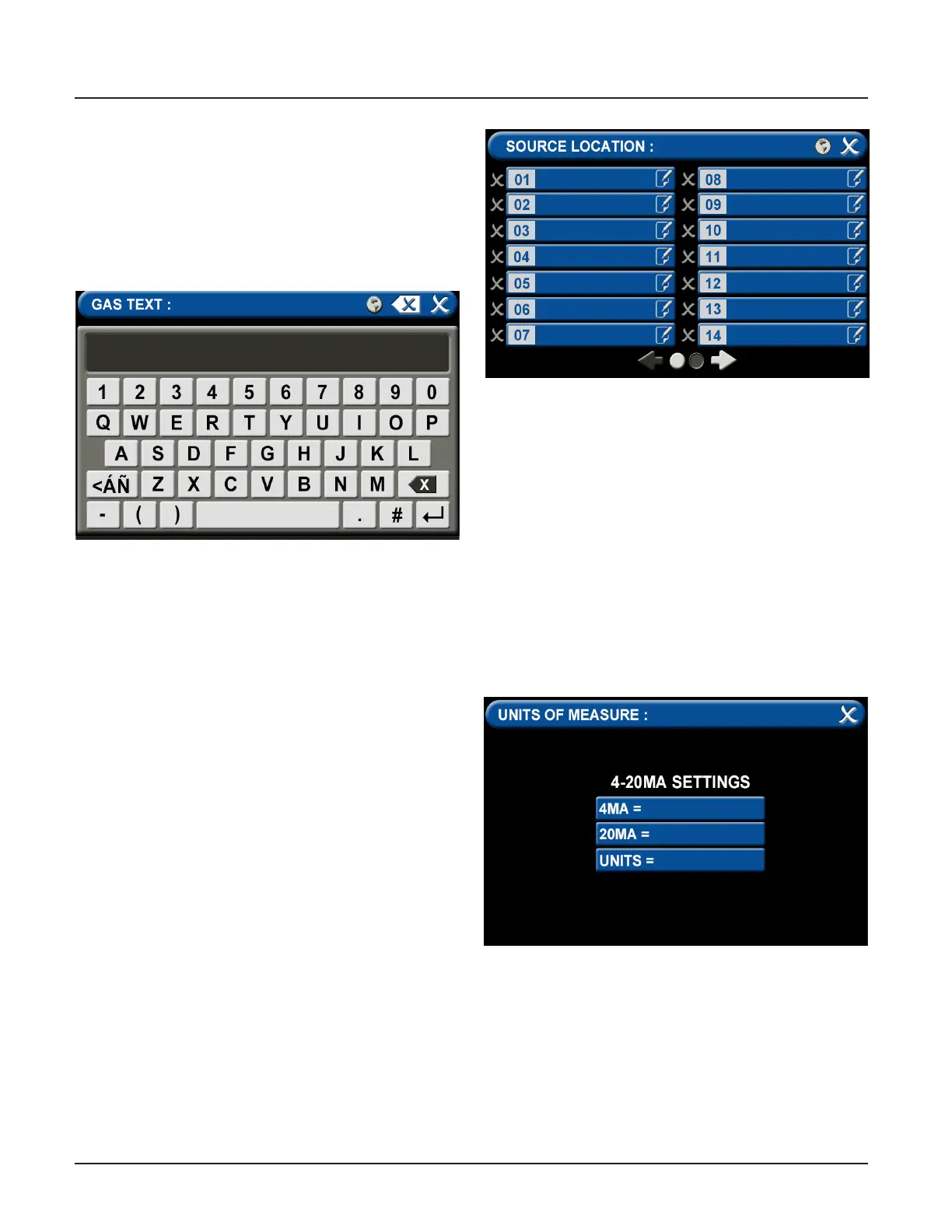

Figure 116: Gas Text Keyboard
D = Area Monitored Tab
To add locations to be monitored:
1. Touch an unused location tab.
2. Using the keyboard, enter the name of the
location that you would like to monitor (e.g., ROOM
1). Enter multiple locations as needed (e.g., Room
1, Room 2, Room 5).
3. A check appears when the location is selected, the
save button has to be pressed if the selection is
new.
To edit the location information, touch the Pencil
button.
Figure 117: Source Location
E = [Units of Measure] Tab
To set up the 4-20mA device:
1. Touch the tab for “4MA=” to set the low
measurement point of the device (zero for
example) and press the save button to exit.
2. Touch the tab for “20MA=” to set the high
measurement point of the device (100 for example)
and press the save button to exit.
3. Touch the tab for “Units=” to set the method of
measurement (percent for example), type in the
measurement type and press the save button to
exit.
4. Touch the X button in the upper right to close the
screen.
Figure 118: Units of Measure Tab
