117
20 08 CONTESSA
EQUIPMENT — 5

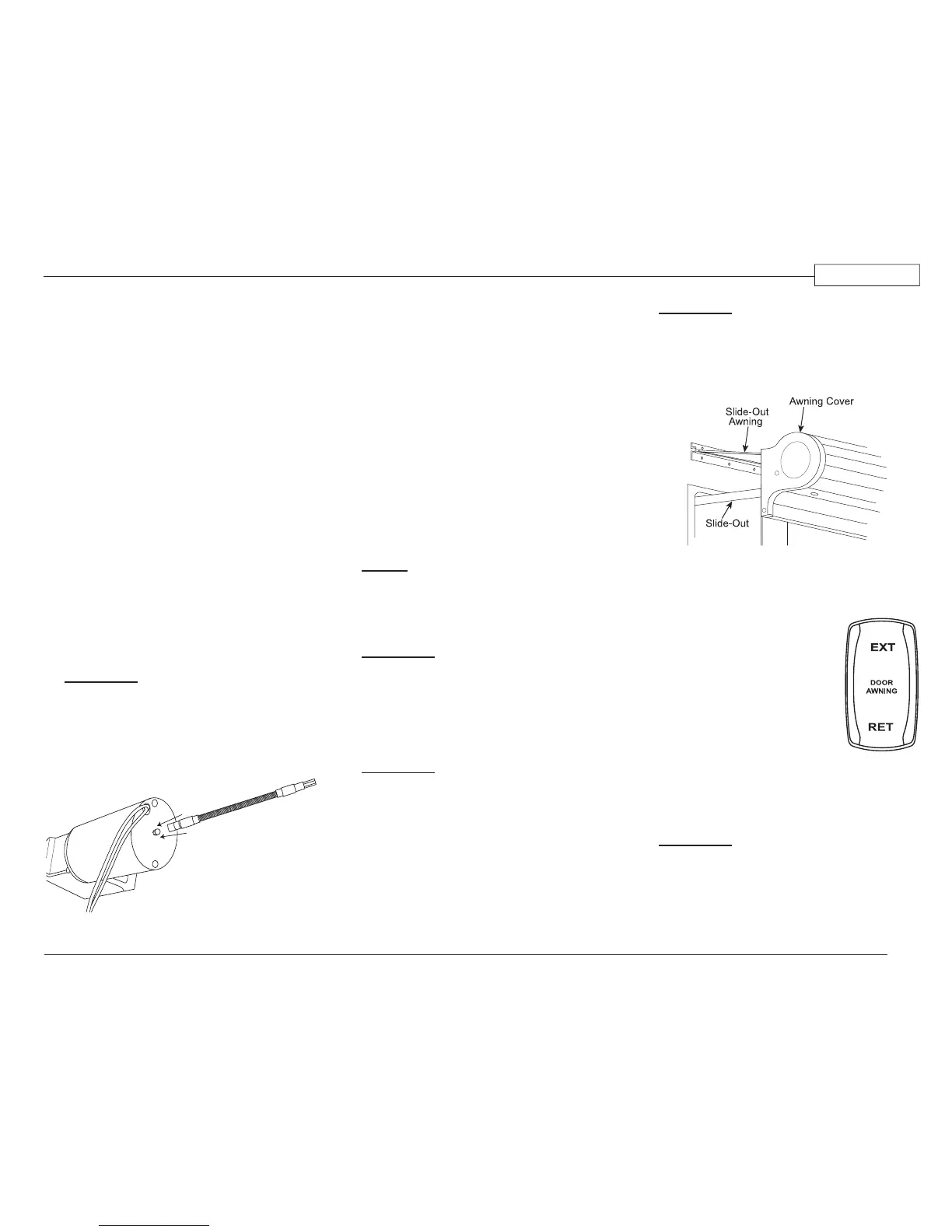

Wardrobe Slide (Electric Cable Drive):
1. Turn off both the battery and house
disconnect switches (located in rear
curbside bay).
2. Locate the slide room motor near the
ceiling of the slide-out. Remove the
fascia, valance or both. The fascia and
valance may be attached by Velcro
®
or
screws.
3. Disconnect the slide room motor
electrical plug. Locate by following the
wires that run from the motor to the
plug. This removes 12 Volt DC power
from the slide-out motor.
4. Attach the exible shaft to the ¼" tting
on the end of the slide-out motor.
5. Attach a ¼" socket and ratchet or drill
to the other end of the exible shaft.
6. Turn in proper direction to move the
room. Reverse direction if cables
tighten and the motor is difcult to turn.
CAUTION:
Over-torquing can result in severe
damage.
7. Take motorhome to an authorized
repair center.
AWNINGS
Slide-Out Cover
The slide-out cover automatically reacts to
slide-out direction. A xed edge of the slide-out
cover is installed into an awning rail, mounted
just above the slide-out. A spring-loaded roller
with special brackets mounts to the slide-out. In
a hard rain, the cover helps prevent water from
penetrating the seal of the slide-out. The slide-
out cover will automatically reach full extension
when the slide-out room is fully extended.
The slide-out cover automatically rolls up into
the travel position when the slide-out room is
completely retracted.
NOTE:
When retracting the slide-out, stop the
room approximately halfway. Confirm
that the fabric is properly rolling before
fully retracting the slide-out.
CAUTION:
The slide room and slide-out awning
should be retracted before heavy wind,
rain or snow to prevent damage to the
awning or motorhome. Wind can drive
rain under the slide-out awning and into
the motorhome.
CAUTION:
Rain water can pool on the slide-out
awning. The added weight will cause
the awning to sag. Upon retracting the
room, material can become caught in
between the top of slide room and the
opening in the motorhome. It will be
necessary to retract the room in small
increments and allow the water time to
run off.
CAUTION:
At least five feet of clearance is needed
between the side of the motorhome and
any objects, such as trees or fences, to
allow the slide room and slid-out awning
to fully extend.
Entry Door Awning
To Operate the Awning:
Ensure interior house power
is on.
Verify the extend/retract
path of the awning and
related hardware is clear and
unobstructed.
Turn the ignition key off.
Press and hold the door
awning switch to extend/
retract.
Release the switch to the neutral position
when fully extended or retracted.
CAUTION:
The awning should be retracted if the
motorhome is left unattended or high
wind conditions exist. Otherwise wind
damage to the awning may occur.
031166
Wardrobe Motor
030924b
060313f
