ELECTRICAL SYSTEMS - HOUSE — 8
174
20 08 CONTESSA

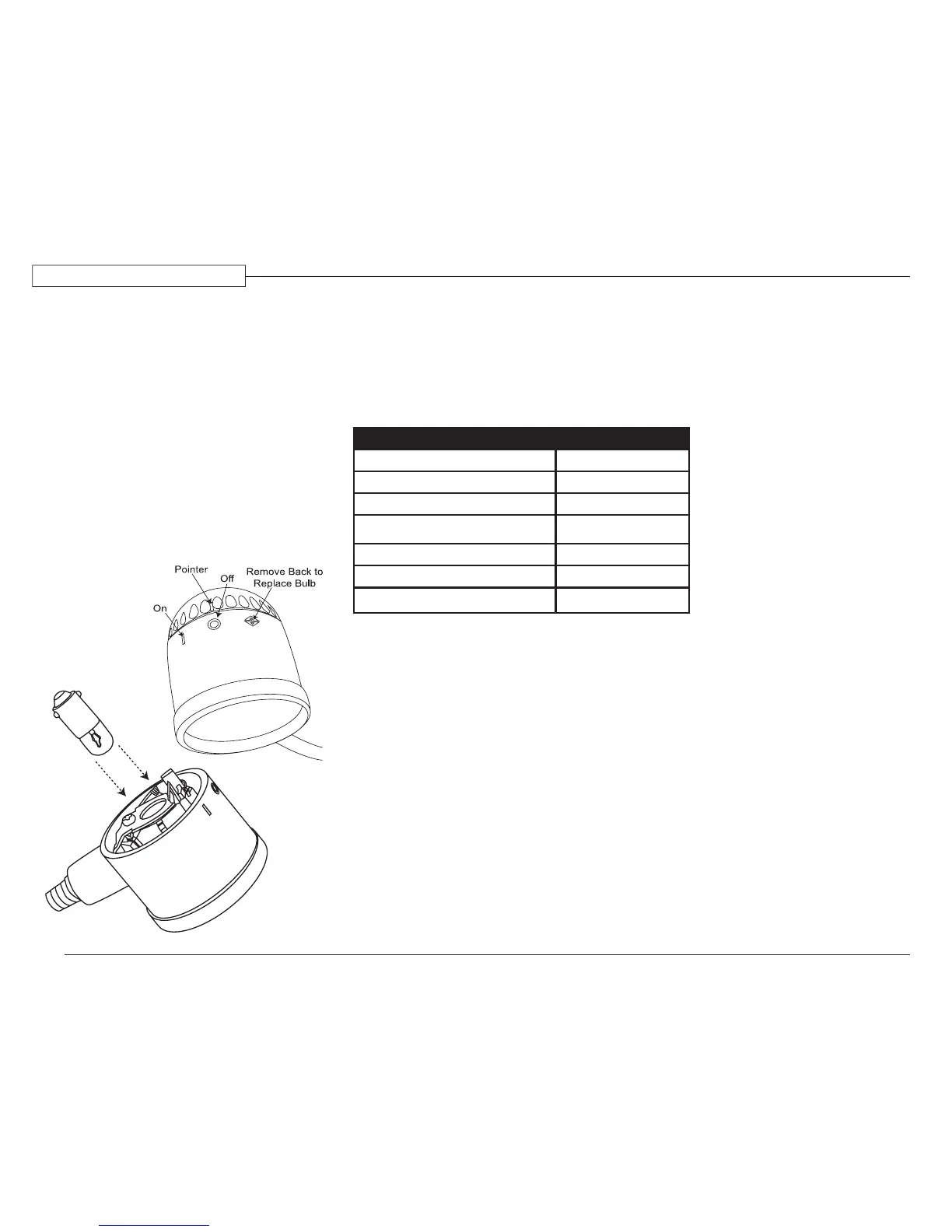

MAP LIGHTS
Operation:
Turn the light on and off by aligning the
pointer on the back of the light with the ON and
OFF indicator on the front portion of the light.
To Replace a Bulb:
1. Align the pointer on the back of the light
to the position to remove the cover.
2. Remove cover and lift bulb from holder.
3. Replace with a 12 Volt DC 4 Watt
type 1816 bulb and install cover by
realigning the pointer to the same
location. Turn cover to OFF or ON
position.
If the map lights fail to operate:
Ensure interior house power is turned ON.
Check fuses in front electrical bay on the
roadside.
BULB USAGE – INTERIOR


INTERIOR BULB CHART
LOCATION BULB NUMBER
FLUORESCENT CEILING LIGHTS
F15T8 - CW
DINETTE 12V DC C912 or 921
MAP LIGHT
1816 12V DC 4W
STEPWELL LIGHTS
90416
CLOSET LAMP 12V DC 10W Type T-3
OVERHEAD CEILING LIGHTS
1383
