SYSTEM MONITOR PANEL

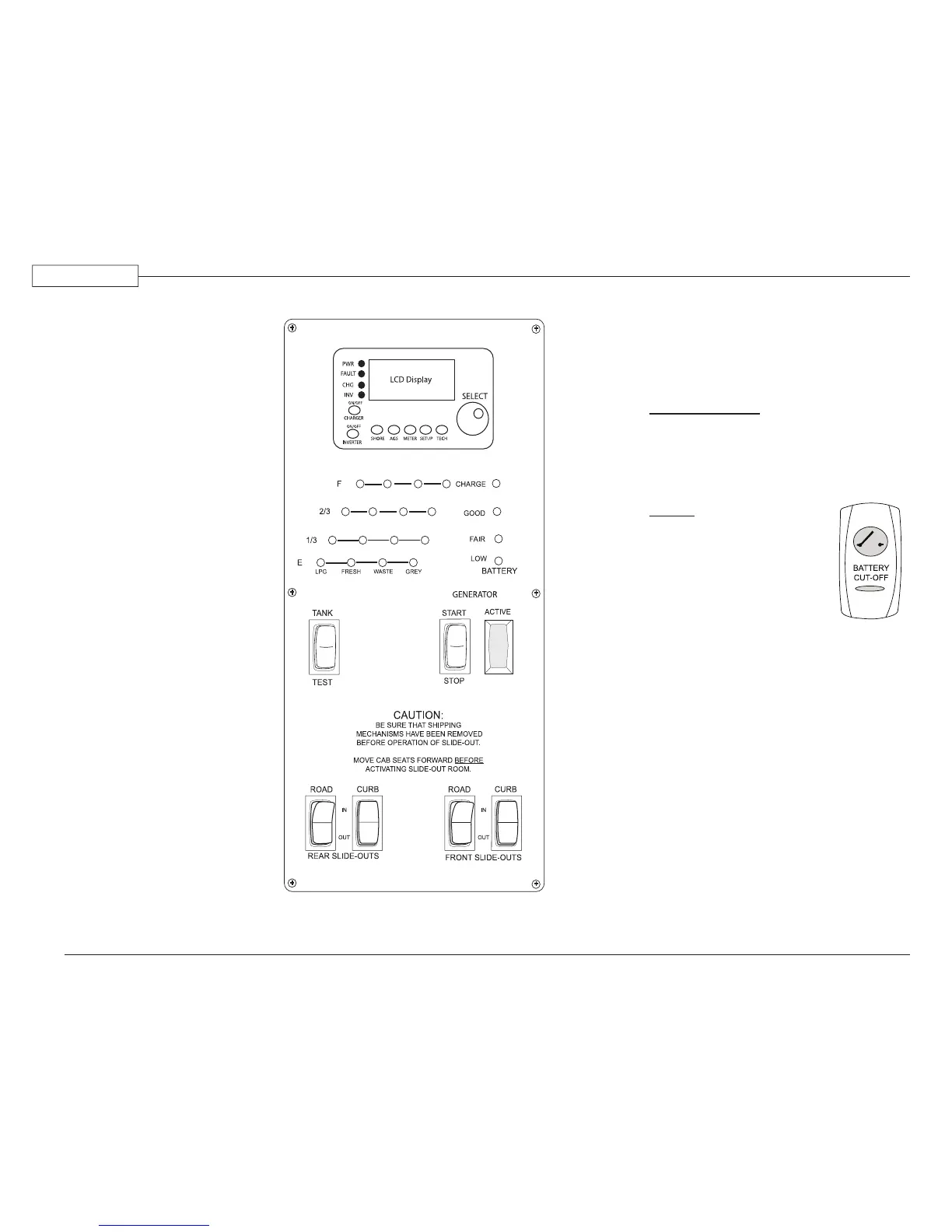

The System Monitor Panel is a
central location for many of the
switches and monitors used to
operate the motorhome. This unit is
generally located in the hallway.
1. Inverter Remote: Turns the
inverter on or off and monitors
battery charging status. See
Section 8 for more information.
2. Tank/House Battery Monitor:
Displays the status of the
holding tanks, fresh tank,
propane tank and house
batteries.
3. Tank Test Switch: Spring
loaded switch used to display
tank and house battery status
on the monitor panel.
4. Generator: Starts and stops the
generator.
5. Slide-out Room Controls:
Extends and retracts the slide
rooms.
TV & ENTERTAINMENT COMPONENTS
The following paragraphs discuss the
operations and various components that make
up the entertainment center.
INFORMATION:
It is recommended to become familiar
with individual components. Refer
to the respective manual for detailed
instructions on operating individual
components.
NOTE:
All components of the
entertainment system
require 120 Volts AC to
operate. Hook to shore
power, start the generator
or turn on the inverter.
Turn on the interior house
power using the battery
cut-off switch.
Television (Front) Lockout Feature
The ignition switch controls the outlet for the
front TV, allowing the front TV to be operated
only while the vehicle is at rest. Viewing time
of the front TV from the inverter depends on
state of charge of the house batteries and any
additional 12 Volt DC lighting being used.
060158xb
1
2
3
4
5 5
080375G
Turns on
interior house
power.
