ELECTRICAL SYSTEMS - HOUSE — 8
Typically the conductor strip in the center
of the fuse is broken, but not always, and is
best veried by use of a 12 Volt DC test light.
Located atop the blade style fuse housing are
two exposed terminals. The fuse is good if the
test light illuminates at both terminals. This may
require the circuit be activated for power to be
present at the fuse. The fuse is bad if the test
light illuminates at only one terminal.
The three types of Circuit Breakers:
Type 1 is an automatic reset type circuit
breaker. Under a short circuit condition, this
type of breaker may cause component damage,
but no damage to the circuit, installation or
present a safety risk
Type 2 is an automatic reset type circuit
breaker. Under a short circuit condition, this
type of breaker will not cause component
damage or damage to the circuit, installation or
present a safety risk.
Type 3 is a manual reset circuit breaker. This
type of breaker will open under a short circuit
condition and will need to be manually reset.
BATTERIES - HOUSE
House batteries are designed for use with 12
Volt DC operated lights, appliances and inverters.
NOTE:
Tap water contains minerals which can
alter battery chemistry and ruin the
battery. Use only distilled water when
refilling the LLA battery.
Slide Tray Operation:
The slide-out battery tray is secured in place
by a locking mechanism at the front of the tray.
To slide the tray out, lift up on the handle and
pull until the tray stops. To secure the battery
tray, push it back in until the tray latches.
060086c
080528e
Large Amperage Circuit Breaker

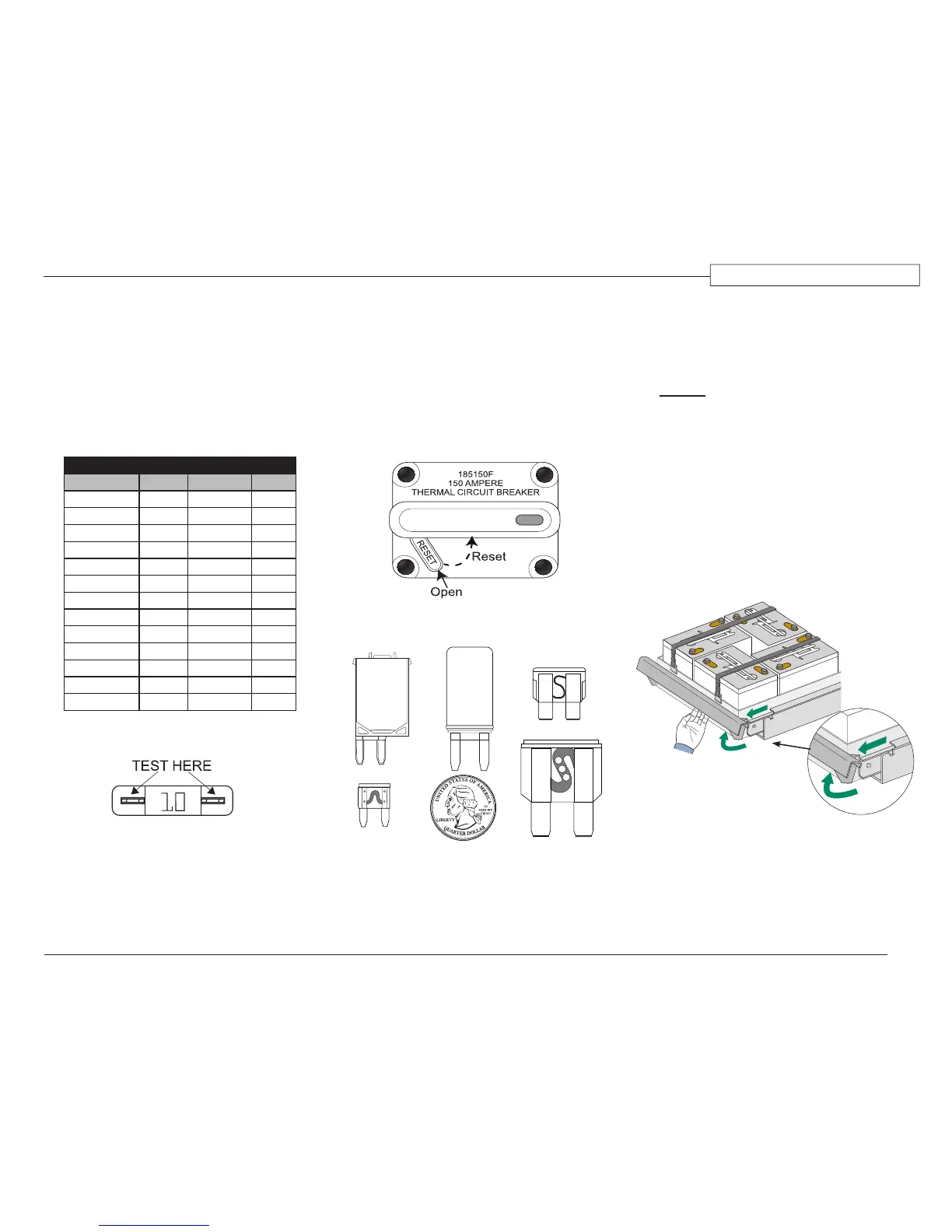

BLADE FUSE GUIDE
Mini Standard Maxi
Black 1
Gray 2 2 25
Violet 3 3
Pink 4 4
Tan 5 5 70
Brown 7 1/4 7 1/4 35
Red 10 10 50
Blue 15 15 60
Yellow 20 20 20
Clear 25 25 80
Green 30 30 30
Blue-Green 35
Orange 40 40
Mini, Standard and Maxi fuse colors and
amperage ratings
A. Manual Reset Circuit Breaker
B. Auto Reset Circuit Breaker
C. Standard Fuse
D. Mini Fuse
E. Maxi Fuse
Quarter is used for size comparison
of fuses. Not to actual scale.
080528e
A
B
C
D
E
060193i
Slide-out battery tray
