CHASSIS INFORMATION — 10
248
20 08 CONTESSA

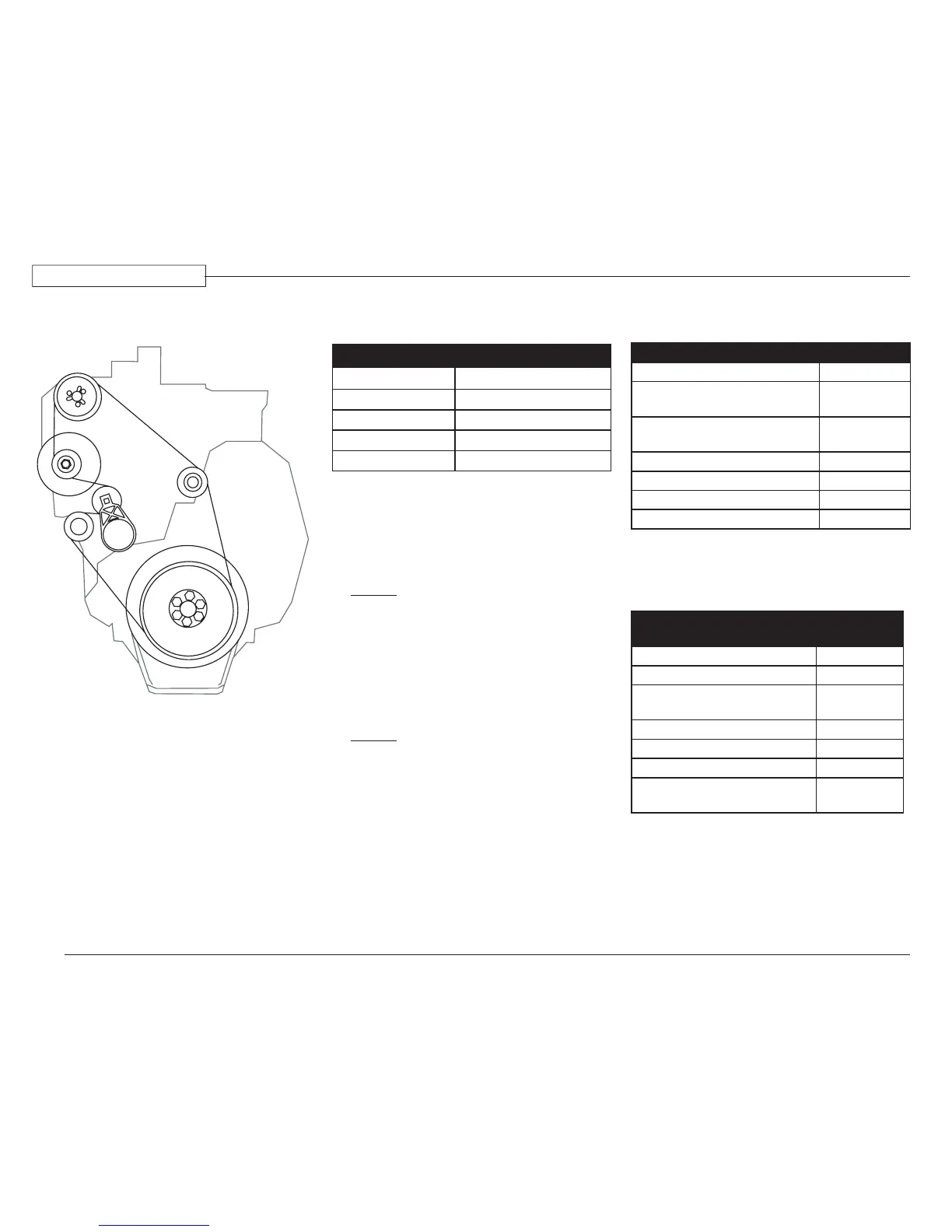

ENGINE DRIVE BELT DIAGRAM SPECIFICATION CHARTS
Tank Capacities
NOTE:
All tank capacities are estimated
based upon calculations provided
by the tank manufacturers and
represent approximate capacities.
The actual “usable capacity” may
be greater or less than the estimated
capacities based upon fabrication and
installation of the tanks.
NOTE:
This chart reflects product
specifications available at the time
of printing. Therefore any floor
plans introduced thereafter may not
be reflected in the chart. All other
information contained throughout
the manual will still apply.
Engine Specifications
Chassis Fluid Capacities
Tank Capacities (Approx. Gallons) All Models
Grey Water 78 gallons
Black Water 44 gallons
Fresh Water 100 gallons
Fuel Tank 130 gallons
Propane* 31 gallons
*Actual lled propane tank capacity is 80% of listing due to
safety shutoff required on tank.
ENGINE SPECIFICATIONS C9
Cubic Inch Displacement 9.3 L/567 CI
Engine HP
425 HP @
2300 RPM
Engine Torque
1250 lbs./ft.
@ 1400 RPM
Governed Speed 2300 RPM
Firing Order
153624
Rear Axle Ratio 4:30:1
Alternator Amp Size
160 Amp
CHASSIS LIQUID
CAPACITIES
C9
Engine Oil 36 Qts.*
Transmission Oil (initial ll) 26 Qts.*
Transmission Oil
(with service)
19 Qts.
w/lter
Radiator Coolant (initial ll) 50-55 Qts.*
A/C Refrigerant (initial ll) 4 lbs. 134 A*
Hydraulic Oil
35 Qts.*
Rear End
15 Qts.*
Approx.
* On Initial Fill. Service quantity may vary.
090457
C9
