Figure A: The
refrigerator
120 Volt AC
cord(s) must
be plugged
in (located
outside behind
refrigerator
access door).
Figure B:
The icemaker
shutoff valves
must be open if
the refrigerator
is equipped
with an icemaker.
Figure C: If controls do not light up,
check the house batteries charge status or
see if the 12 Volt DC wires are plugged
into the refrigerator’s circuit board
(located outside behind refrigerator
access door).
Control Panel
ON/OFF Button - Turns the refrigerator
ON or OFF.
- Push the ON/OFF button to start the
refrigerator in Auto mode.
- Push and hold the ON/OFF button for
two seconds to shut it off.
LED Display - This screen is used
for mode, temperature and fault code
display.
MODE Button - Controls the operation
mode of the refrigerator.
- Press the MODE button to select
between Automatic AU, AC or LP
operation.
SET TEMP Button - Adjusts the
temperature.
- To adjust, push and hold the SET
TEMP button.
- Number “9” is the coldest setting.
Manual Mode:
When one of the two manual modes is
selected:
1. AC = The refrigerator is operating on
AC electric.
2. LP = The refrigerator is operating on
propane.
Automatic Mode (AU):
This feature selects AC over propane
operation. If AC discontinues, the refrigerator
switches to propane operation. If the
refrigerator fails to light, the alarm sounds and
a code displays.
Press the MODE button until AU
displays.
Press and hold the SET TEMP button
until the desired temperature displays.
Release button.
In AUTO mode, AU/AC or AU/LP will
alternate three times when a mode has
changed.

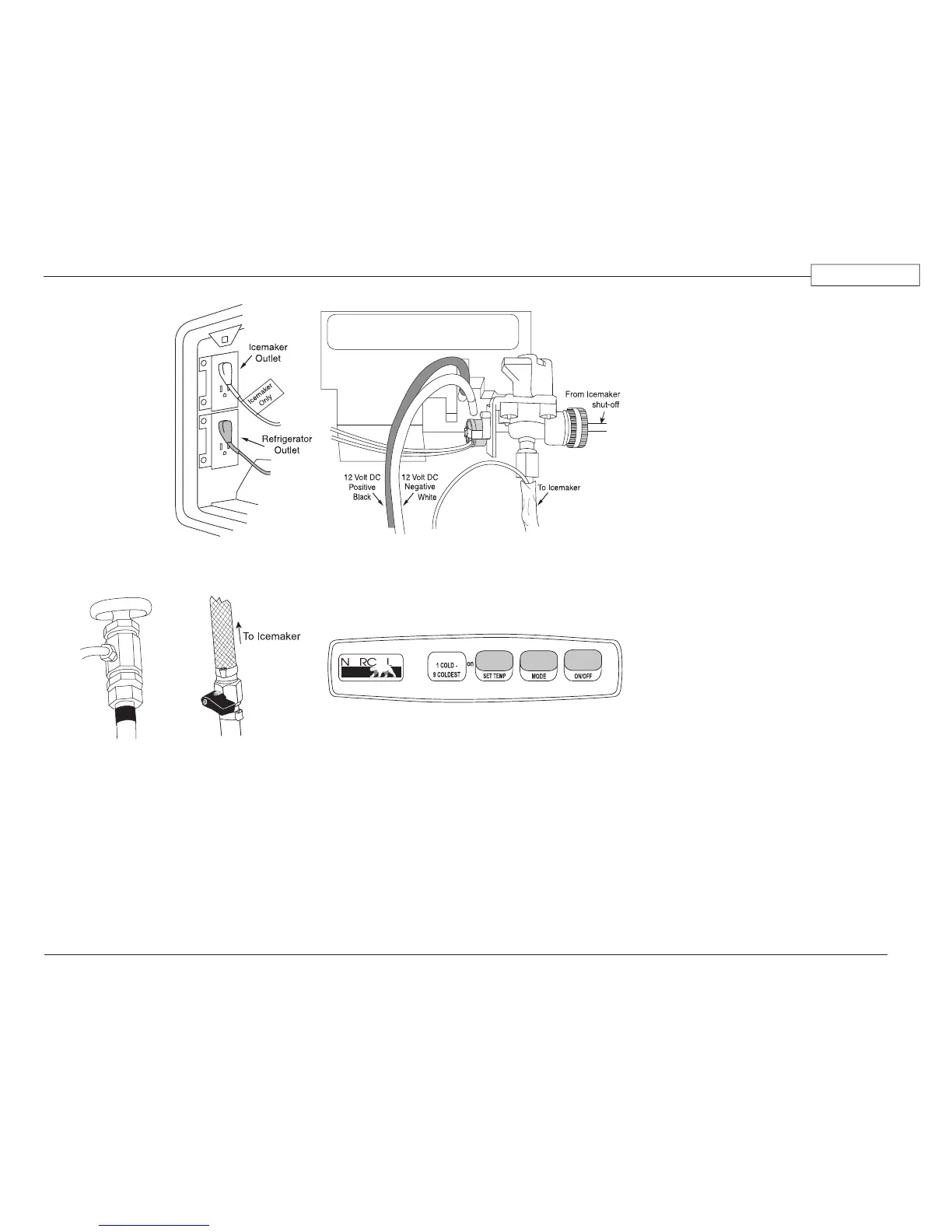

Figure A
030967c
Located behind
water service
center
Figure B
040502n
Figure C
030974d
030864d
Located in the
refrigerator exterior
access compartment
Figure B
030975
