5.2 Supported Interfaces
5.2.1 Connector Interface
The QTERM-G58 handheld terminal comes with one serial multiprotocol port through a
12-pin round connector (Hirose HR30-8R-12SC). The multiprotocol port interface is soft-
ware-selectable to EIA-232, EIA-422 or EIA-485. The EIA-485 interface includes AC termi-
nations and a fail-safe network, each of which can be set in software.

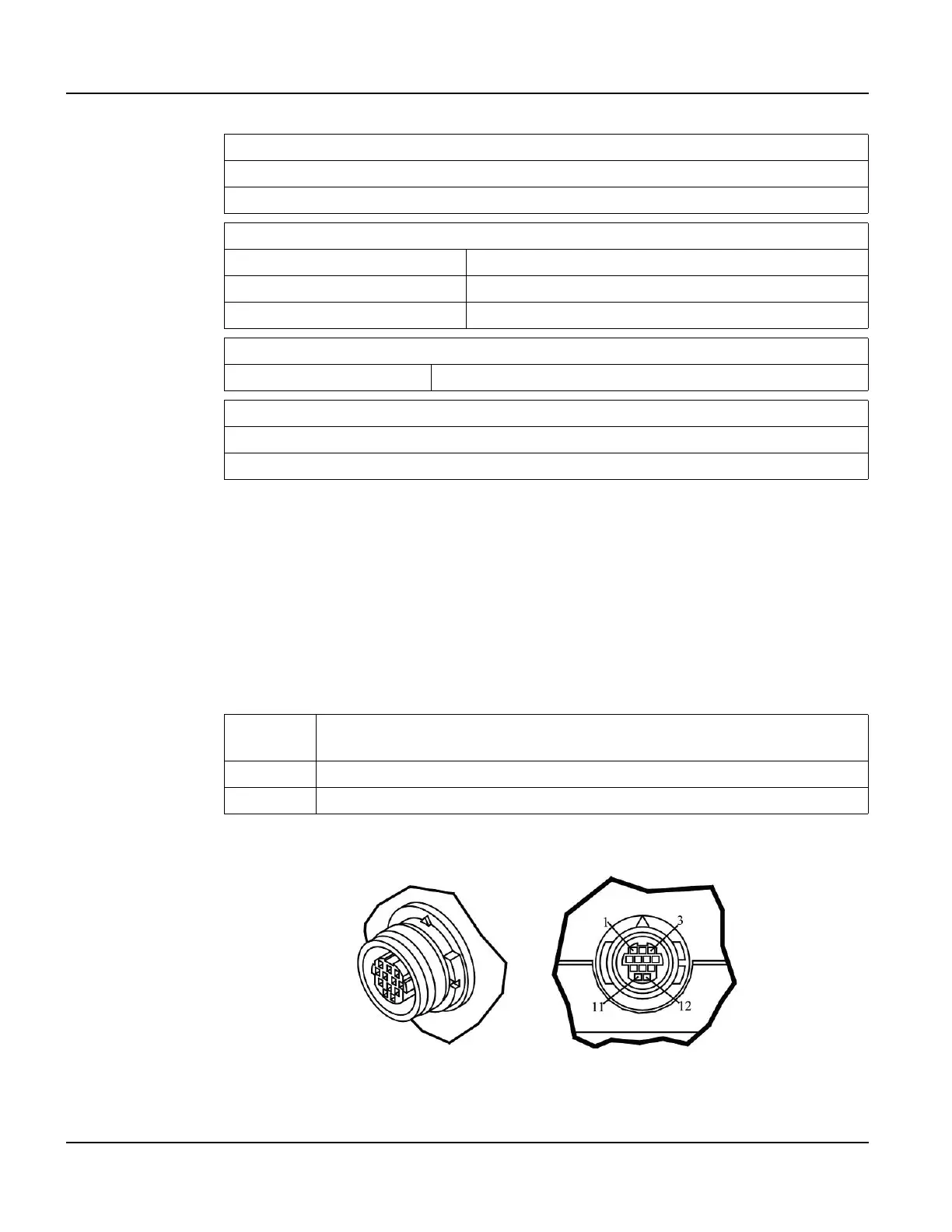

Figure 25 shows the handheld unit connector orientation.
POWER
8 to 32 VDC (See section 5.3.7 for current consumption)
5 VDC USB Host Port (Wireless Ethernet disabled)
SOFTWARE
Programming language Qlarity (object-based)
Design environment Qlarity Foundry (Windows)
Command line compiler Qlarify (Win32 or Linux)
CUSTOMIZING
Keypad legend Customize with logo/name or graphics
CERTIFICATION
FCC Part 15, Class A
CE Certification
EIA-232
with proper cables and grounding the terminal can communicate up to five
meters at a top speed of 115,200 bps
EIA-422 permits operation at distances up to 2,000 meters
EIA-485 permits multiple terminals to be connected in a multi-drop chain
Figure 25
QTERM-G58 Handheld Connector
