Installing to NEMA-4X Specifications QTERM-G72 Terminal
94
Qlarity-Based Terminal Hardware
• Landscape
When looking at the front of the unit, the back panel serial port(s) should be facing
down.
• Portrait
When looking at the front of the unit, the back panel serial port(s) should be facing left.
Refer to Figure 39 for an example of a portrait installation.
3. On the back of the panel, align the terminal mounting ring holes with the mounting studs,
and place the mounting ring against the back of the panel. Refer to Figure 40 for the loca-
tion of the mounting studs.

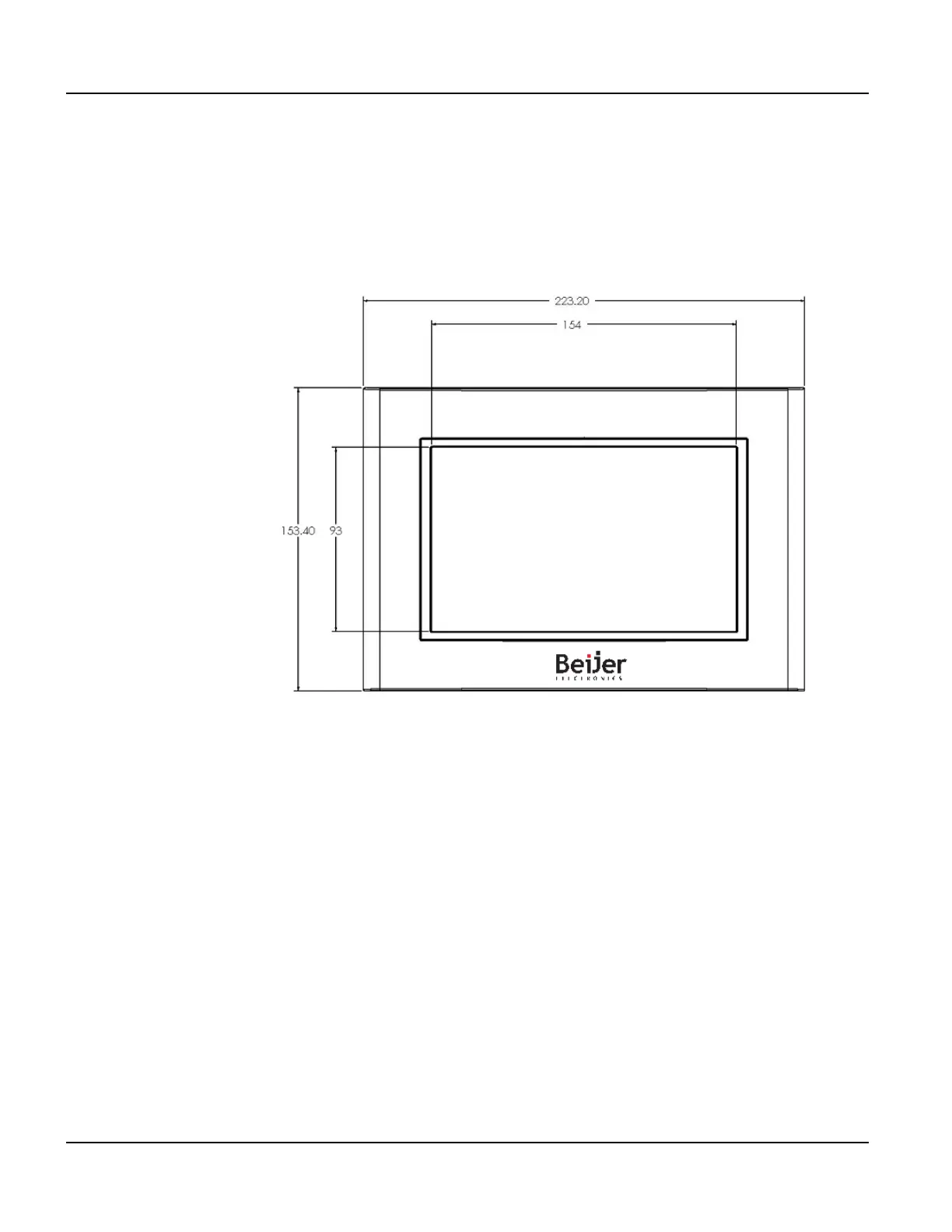

Figure 39
QTERM-G72 Front Panel Mount
