QTERM-Z60 Terminal Terminal Components
Qlarity-Based Terminal Hardware 77
6.2.3 External Reset Input
Pin 11 of the interface connector is a reset signal compatible with 5 VDC and 3.3 VDC logic
signals. By applying a 3.3 VDC or 5 VDC pulse to this input, the terminal will perform a com-
plete hardware reset.
6.3 Terminal Components
6.3.1 Touch Screen
The QTERM-Z60 touch screen provides user input through any number of touch keys located
on or around the display. The standard key legend shown in Figure 28 provides areas for five
soft keys down each side of the display. A custom legend underlay can be ordered to personal-
ize the terminal for your application for shipments of over one hundred.
Touch keys can also be defined in your user applications at any location on or around the dis-
play. Touch keys may be any size.
6.3.2 Speaker
A speaker is built into the QTERM-Z60 terminal and faces to the back of the unit. Audio can
be linked to events or actions (e.g., screen press, timer, etc.). Pitch and duration are controlled
by API functions called from the user application. Refer to the “Controlling the Speaker” sec-
tion in the Qlarity-based Terminal Programmer's Reference Manual.

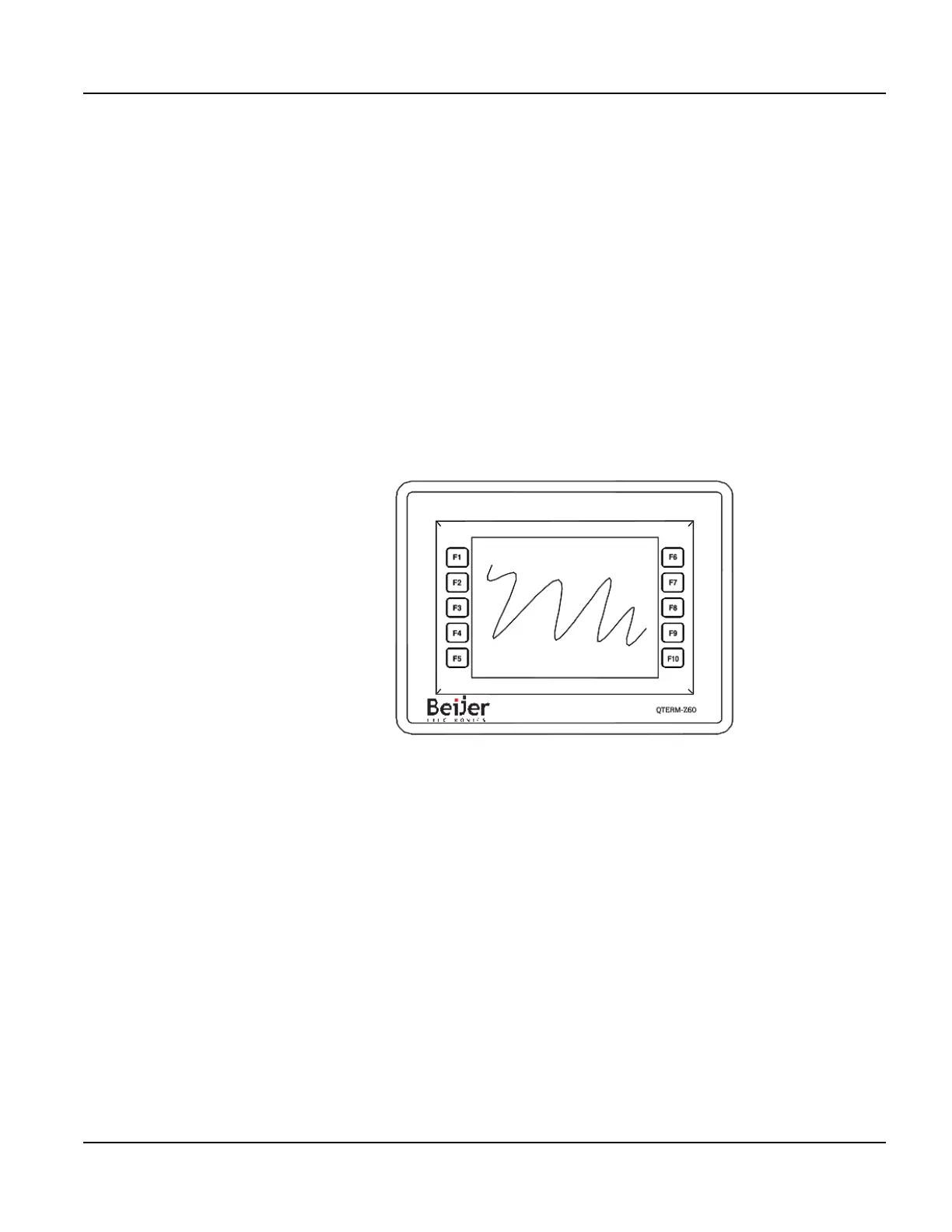

Figure 28
QTERM-Z60 Display
