Terminal Components QTERM-G58 Terminal
68
Qlarity-Based Terminal Hardware
5.3 Terminal Components
5.3.1 Display
The standard QTERM-G58 features a QVGA (320x240 pixel) transflective color TFT LCD
(256 colors). The display includes a light emitting diode (LED) backlight with software-con-
trolled dimming capability. The LED backlight provides reasonable contrast at low power con-
sumption and easy readability. The transflective display provides excellent contrast in sunlight
and high ambient light environments. Refer to Figure 26.
5.3.2 Touch Screen
The QTERM-G58 touch screen provides user input through any number of touch keys located
on the display. Touch keys can be defined in your user applications at any location on the dis-
play and may be any size. Most visible objects in the Qlarity Object libraries are inherently
touch-sensitive. The touch screen functionality can also be enabled or disabled in software
(either in the user application or via the Power On Setup utility).
9 Yellow Pair #4 6
10 Blue Pair #4 13
11 Orange Pair #5 2
12 Gray Pair #5 3
No Connect Violet – 8
No Connect Green with Black Stripe – 12
No Connect Drain – 15
Round
Connector Pin
Wire Color Twisted Pairs
Demo Cable
DB15f Pin

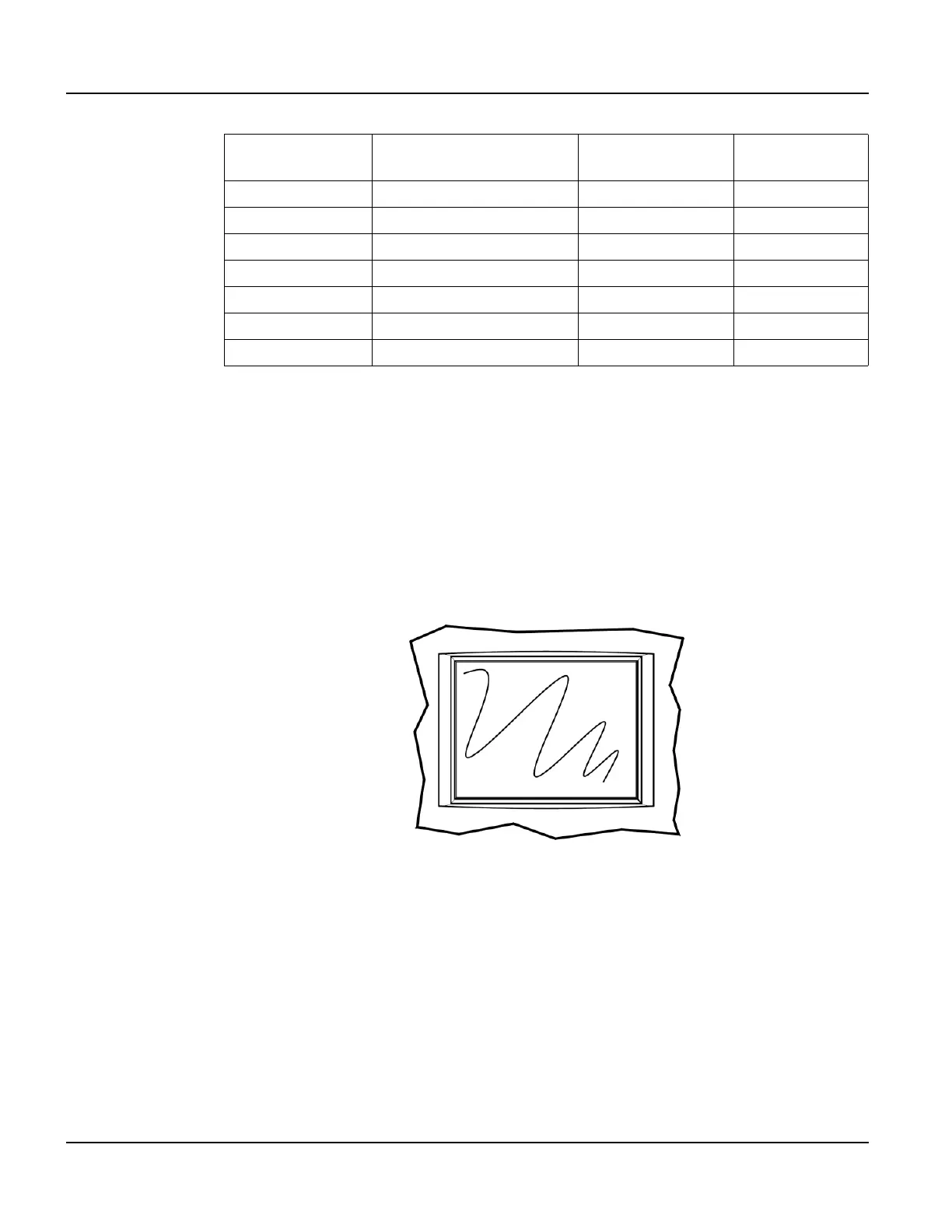

Figure 26
QTERM-G58 Display
