Installing to NEMA-4 Specifications QTERM-G55 Terminal
46
Qlarity-Based Terminal Hardware
3.4.1 Cutout for Panel Mount Configuration
The QTERM-G55 terminal can be mounted in panels from 0 to 7 mm thick. No screw holes
need to be drilled to install the terminal in the panel.
Make a rectangular hole in the panel using the following dimensions.
File any rough edges smooth, especially on the face of the panel.

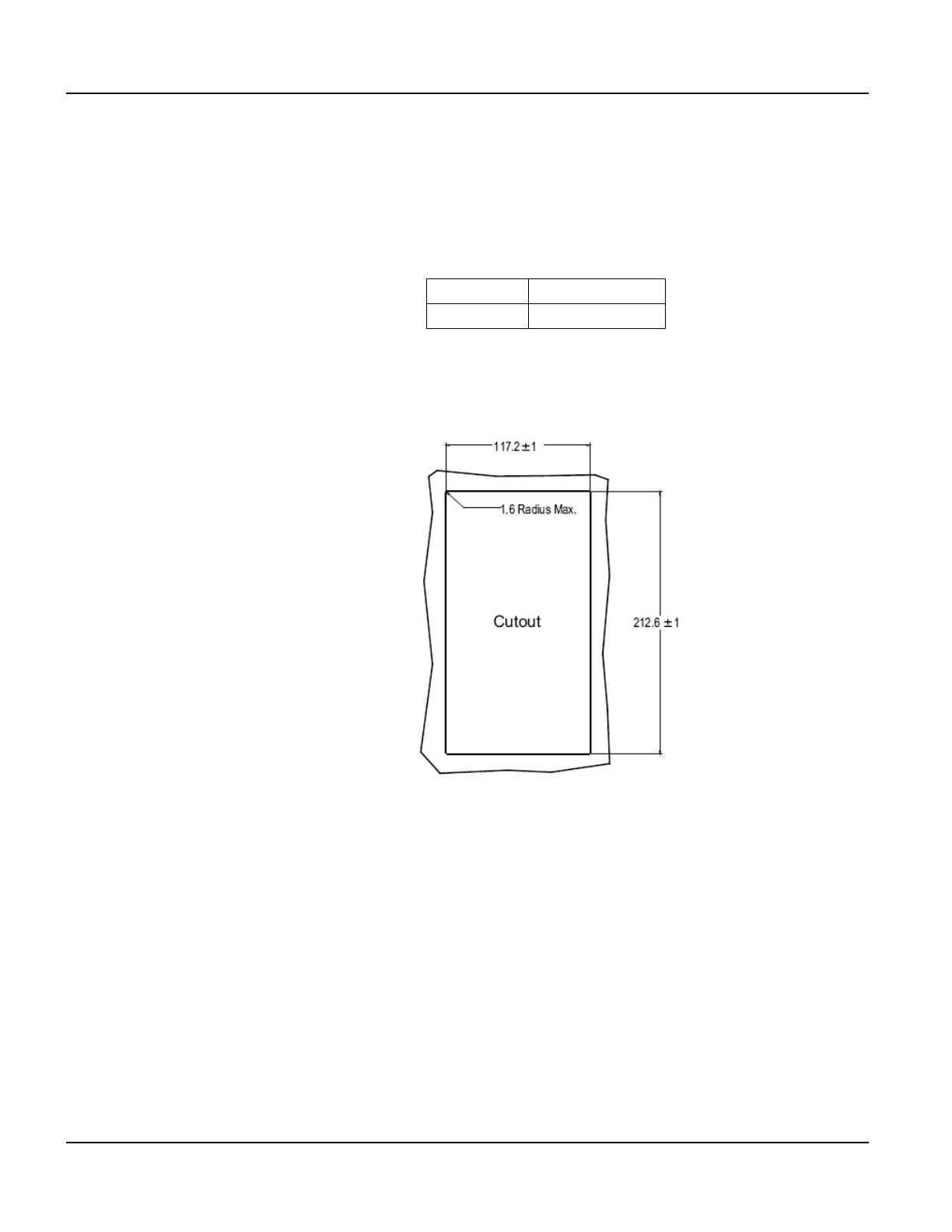

Figure 21 is a diagram of the panel mount cutout.
3.4.2 Installing the Panel Mount Terminal
NOTE
☞
Use of an anti-static strap is recommended when performing installation and maintenance.
Take the following steps to install the terminal. Refer to the illustrations on the next page.
1. Verify that the panel surface around the cutout is clean and free of rough edges. A gasket
built into the terminal will seal against this surface. Dirt or imperfections on the panel may
prevent a proper seal.
2. Place the terminal into the panel cutout and verify that the terminal is oriented correctly.
Horizontal: 117.2 ± 1 mm
Vertical: 212.6 ± 1 mm
Figure 21
QTERM-G55 Panel Mount Cutout
