QTERM-Z60 Terminal Installing to NEMA-4 Specifications
Qlarity-Based Terminal Hardware 79
Figure 29 is a diagram of the landscape cutout.
File any rough edges smooth, especially on the face of the panel.
6.4.2 Installing the Terminal
NOTE
☞
Use of an anti-static strap is recommended when performing installation and maintenance.
Take the following steps to install the terminal.
1. Verify that the panel surface around the cutout is clean and free of rough edges. A gasket
built into the terminal will seal against this surface. Dirt or imperfections on the panel may
prevent a proper seal.
2. Place the terminal into the panel cutout and verify that the terminal is oriented correctly.
The touch screen legend may indicate the orientation. If not, you can determine which side
should be at the top by the position of the serial port on the back panel as follows:
• Landscape
When looking at the front of the unit, the back panel serial port should be on the top of
the terminal.
• Portrait
When looking at the front of the unit, the back panel serial port should be on the right
side of the terminal.
Refer to Figure 30.

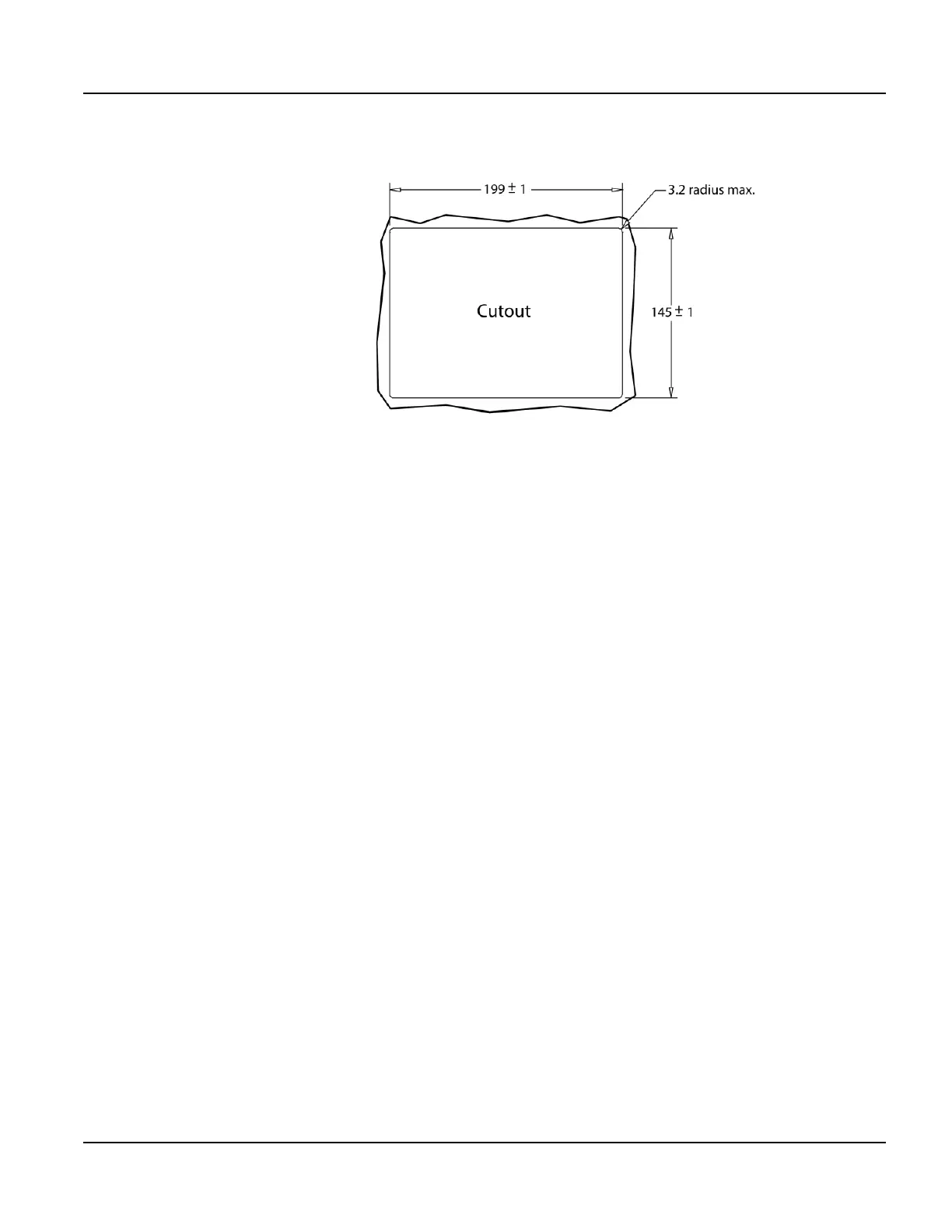

Figure 29
QTERM-Z60 Landscape Cutout
