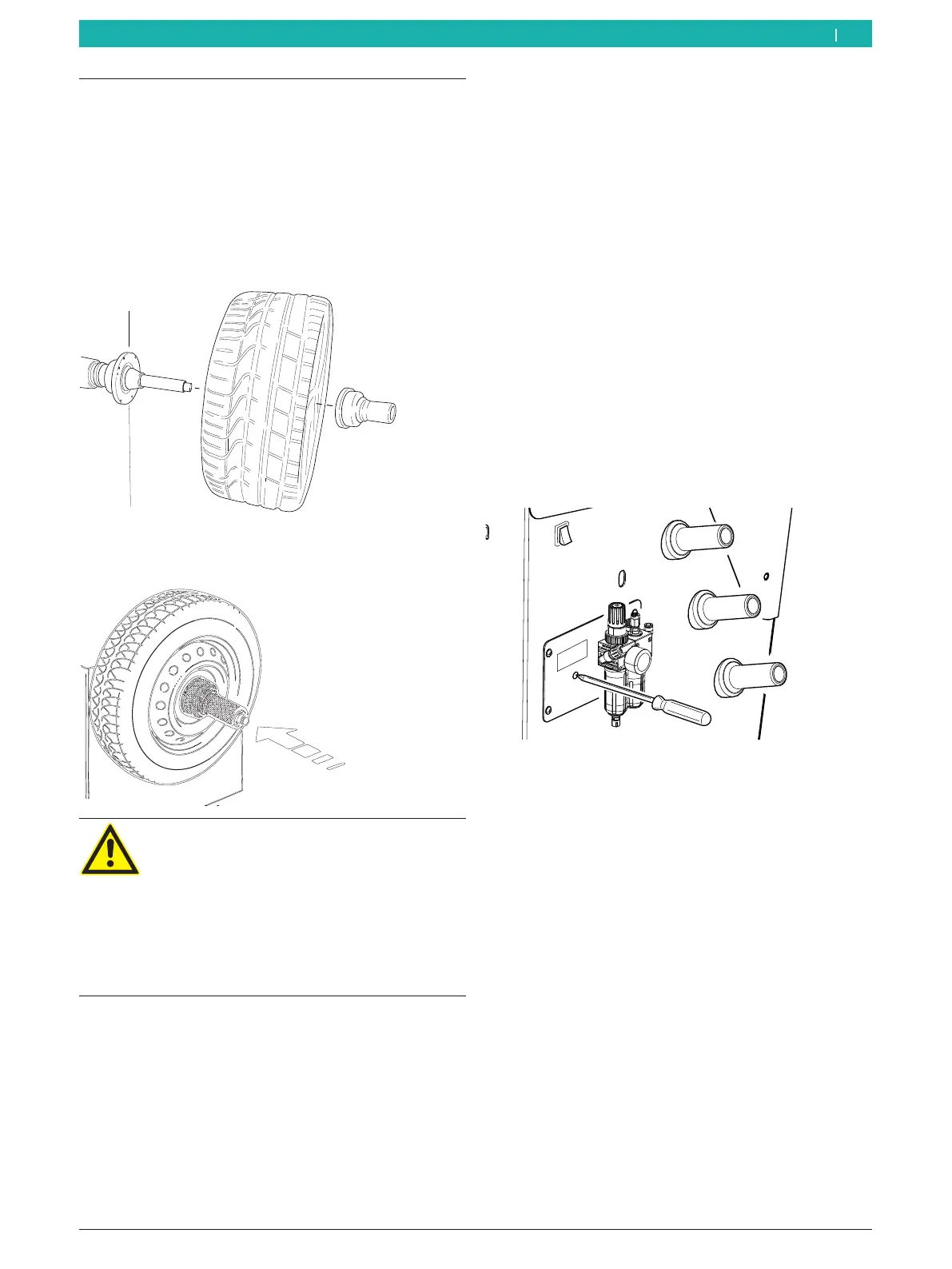

Attaching and removing a wheel | MT ZERO 6 LCD | 93
6.2 MT ZERO 6 LCD AWxP
6.2.1 Attaching a wheel
1. Switch on the MT ZERO 6 LCD AWxP using the on/
off switch.
Wait for the software to load completely.
2. Push the pedal up.
The tie rod will move to the right.
3. Remove any dirt with a wire brush.
4. Position the correct cone and the wheel on the shaft
(flange).
651003-09_Rf
5. Slide the spacer plate onto the shaft, and press it
against the wheel.
651003-10_Rf
WARNING – risk of crushing hands!
When the wheel is clamped using the pedal,
there is a risk of hand injury by crushing.
¶ Do not hold the spacer plate with
your hands within range of the locking
mechanisms.
¶ Do not place your hands between the
spacer plate and the wheel.
6. Push the pedal up.
" The tie rod will move to the left.
" The spacer plate will be pressed against the wheel.
" Wheel secured.
! Make sure the wheel is held in place securely by the
clamping device.
6.2.2 Removing a wheel
1. Push the pedal up.
The tie rod will move to the right.
The wheel will be released.
2. Pull the spacer plate off the shaft supporting the
wheel with one hand.
3. Pull the wheel off the shaft.
6.2.3 Wheel removal in the event of faults
In the event of faults of the compressed-air system or
a loss of power of the MT ZERO 6 LCD AWxP, the
clamping mechanism can be moved by hand and the
wheel can be removed.
i Before doing so, check the compressed-air supply
and try to resolve the fault by switching the machine
off and on again.
1. Press the unlocking button and simultaneously
insert a screwdriver into the left side of the casing.
The tie rod will move to the right.
651127-43_BM
2. Pull the spacer plate off the shaft supporting the
wheel with one hand.
3. Pull the wheel off the shaft.
i When the machine is switched on after the wheel
has been forcibly removed, the flange will stay
disengaged until the pedal for locking is operated
again.
! If the fault persists, contact customer service.
