Beissbarth MT ZERO 6 LCD - Clamp XXX; Mechanical Quick-Action Clamp (NA) Parts Set; Parts Set, Pneumatic Quick-Action Clamp

1 695 600 968 2019-01-28| Beissbarth GmbH
Product description | MT ZERO 6 LCD | 75

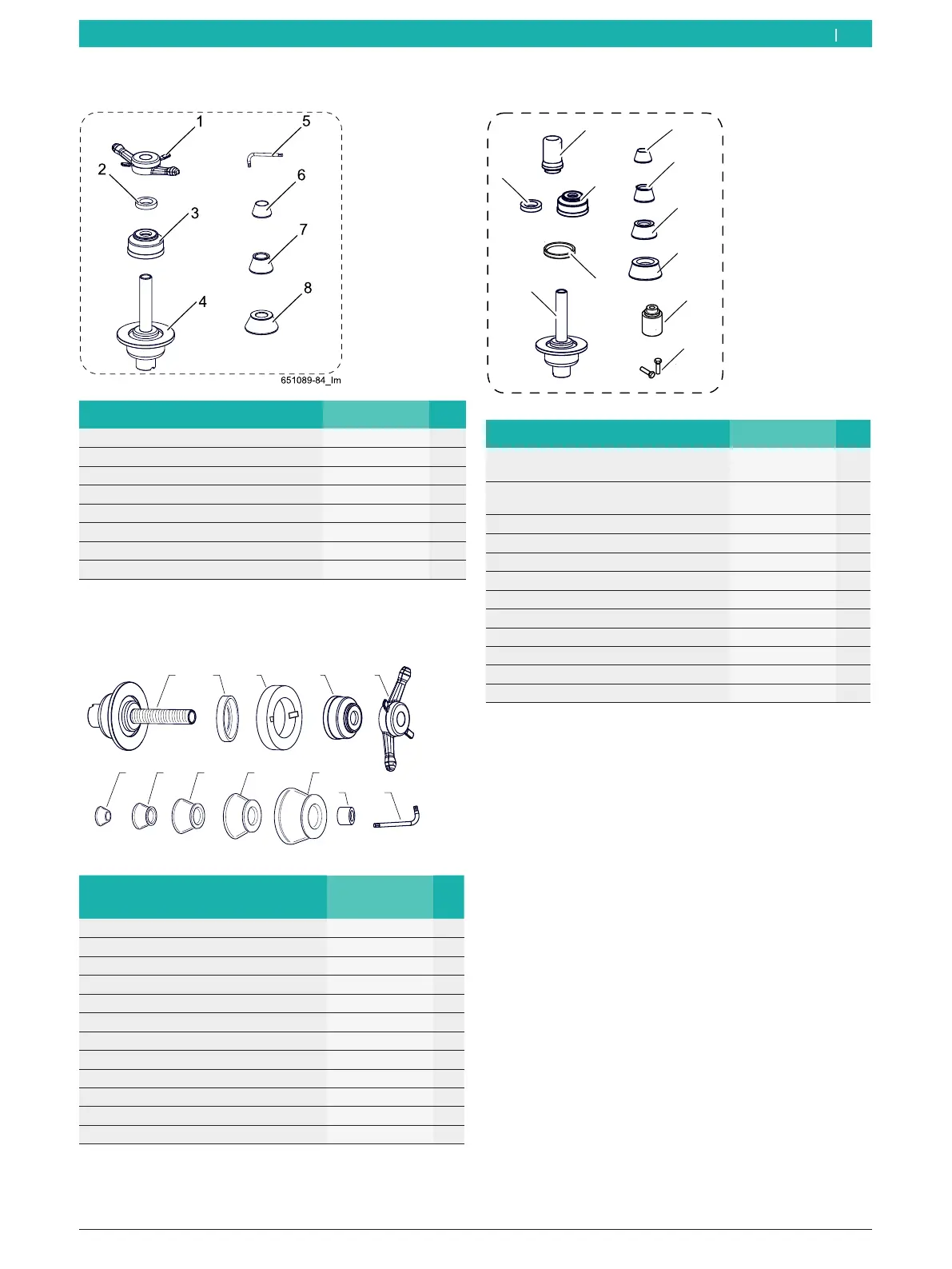

3.3.2 Parts set, mechanical quick-action clampxxx
Designation Order number Qty.
1 Quick locking nut 1 695 616 200 1
2 Spacer ring 1 695 616 100 1
3 Concave socket 1 695 616 500 1
4 Basic centering flange - 1
5 Allen key 1 695 635 000 1
6 Centering cone 42 – 65mm 1 695 632 500 1
7 Centering cone 54 - 80mm 1 695 652 862 1
8 Centering cone 75 - 110mm 1 695 605 600 1
3.3.4 Parts set, pneumatic quick-action clamp
651115-17_BM
1
2
3
4
5
6
7
8
9
10
11
Designation Order number Qty.
1 Wheel locking sleeve
L=100mm
1)
1 695 653 212 1
1* Wheel locking sleeve
L=130mm
1)
1 695 600 999 1
2 Spacer ring 1 695 616 100 1
3 Concave socket 1 695 616 500 1
4 Rubber cap 1 695 624 800 1
5 Basic centering flange - 1
6 Centering cone 42 – 65mm 1 695 632 500 1
7 Centering cone 54 - 80mm 1 695 652 862 1
8 Centering cone 75 - 110mm 1 695 605 600 1
9 Centering cone 120 - 174mm 1 695 606 300 1
10 Basic centering flange 1 695 653 255 1
11 Hexagon bolt ISO 4017 MA8x30 1 695 020 514 2
¹
)
May be included in the scope of delivery depending on the version
ordered
en
3.3.3 Mechanical quick-action clamp (NA) parts set
651113-46_BM
1 2 3 4 5
6
7 8 9 10
11
12
Denomination Code for
ordering
No.
1 Basic centering flange - 1
2 Rubber cap 1 695 624 800 1
3 Spacer ring 1 695 655 316 1
4 Concave sleeve 1 695 616 500 1
5 Quick-locking nut - 1
6 Centering cone, 42–65mm 1 695 632 500 1
7 Centering cone, 60–74mm 1 695 655 841 1
8 Centering cone, 72–94mm 1 695 655 840 1
9 Centering cone, 89–132mm 1 695 653 449 1
10 Centering cone, 90–112mm 1 695 655 839 1
11 Spacer ring 1 695 654 895 1
12 Allen key 1 695 635 000 1
