Belden thinklogical SMP2 - Connection Interaction and Group Tag Usage

System Management Portfolio 2.0 Product Manual Rev. C, Feb. 2020
Page 50

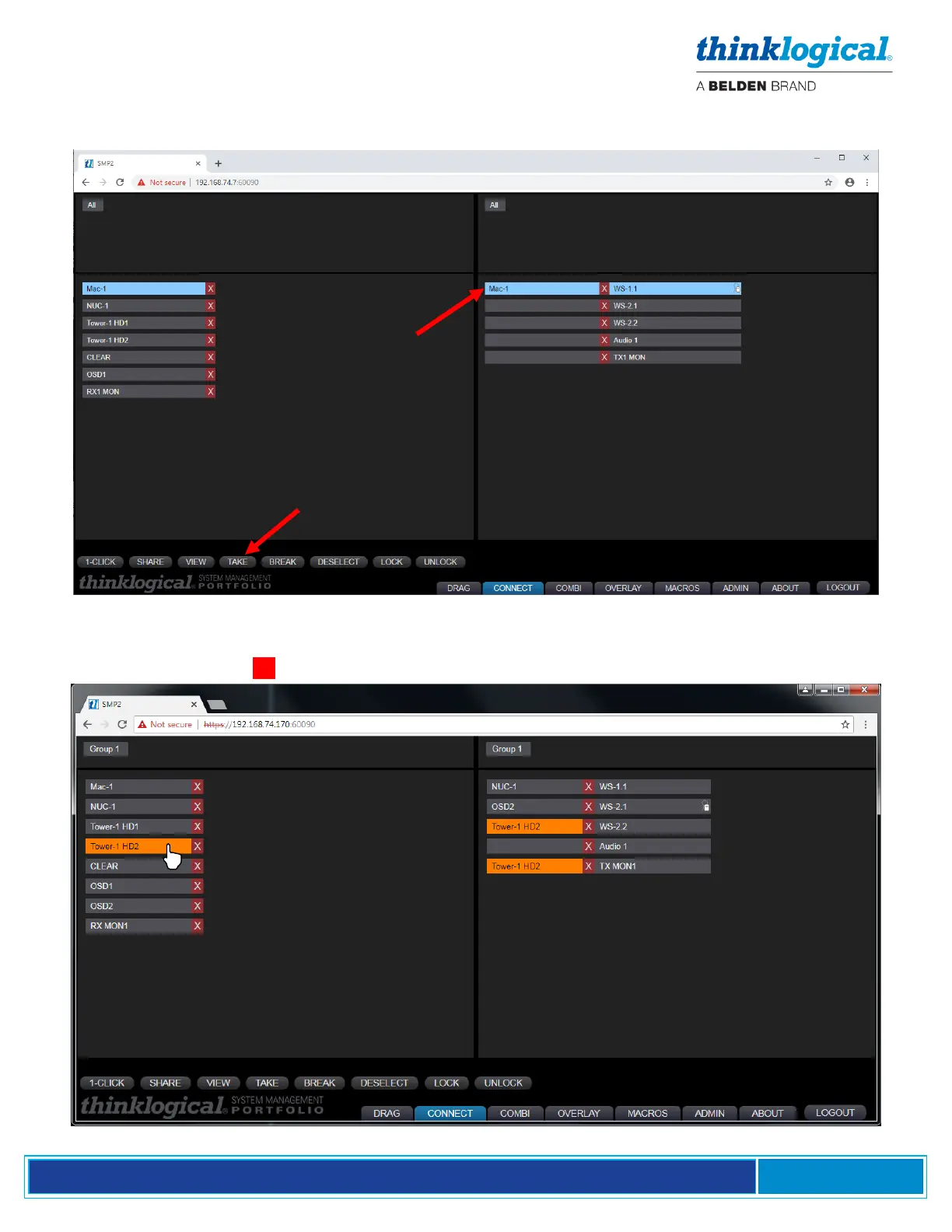

By clicking the TAKE button, Source MAC-1 will be switched to WS-1.1 with KM control.
Destinations with active sources will show the names of those sources on the left side. Hovering the
cursor over a source or destination will highlight in orange any connections involving that source or
destination. Clicking on X will break that connection.
