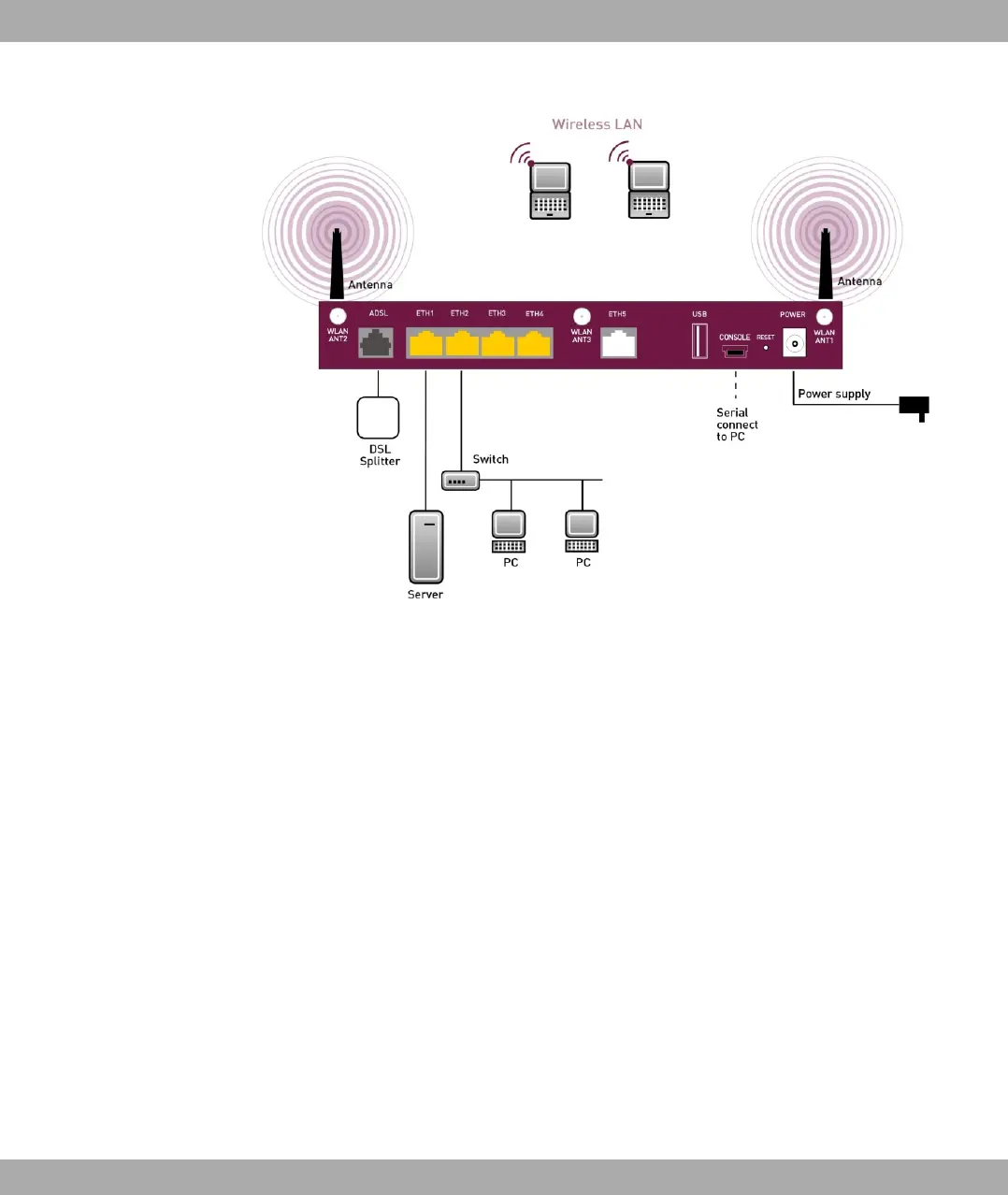

Fig. 11: Connection options using the example of bintec RS230aw
When setting up and connecting, carry out the steps in the following sequence:
(1) Antennas
With bintec RS230aw screw the external WLAN antennas supplied to the RSMA
connections provided for this purpose. With bintec RS230au+ screw the two UMTS/
LTE antenna to the SMA connections.
(2) Place your device on a solid, level base.
(3) LAN
For the standard configuration of your device via Ethernet, connect the first switch
port (1, yellow connector) of your device to your LAN using the Ethernet cable
(yellow cable) supplied. The device automatically detects whether it is connected to
a switch or directly to a PC.
(4) ADSL
Connect the ADSL interface (ADSL, grey connector) of your device to the DSL out-
put of the splitter using the DSL cable (grey cable) supplied.
(5) Mains connection
Connect the device to a mains socket using the mains device supplied.
You can set up further connections as required:
