3.3.2 Connectors
bintec RS230a , bintec RS230aw and bintec RS230au+ have a 4-port gigabit switch, an
ADSL interface (Annex A), a serial interface and a USB connector. bintec RS230aw has
connectors for 3 external WLAN antenna. bintec RS230au+ has connectors for 2 external
UMTS antenna.
The connections are arranged as follows:

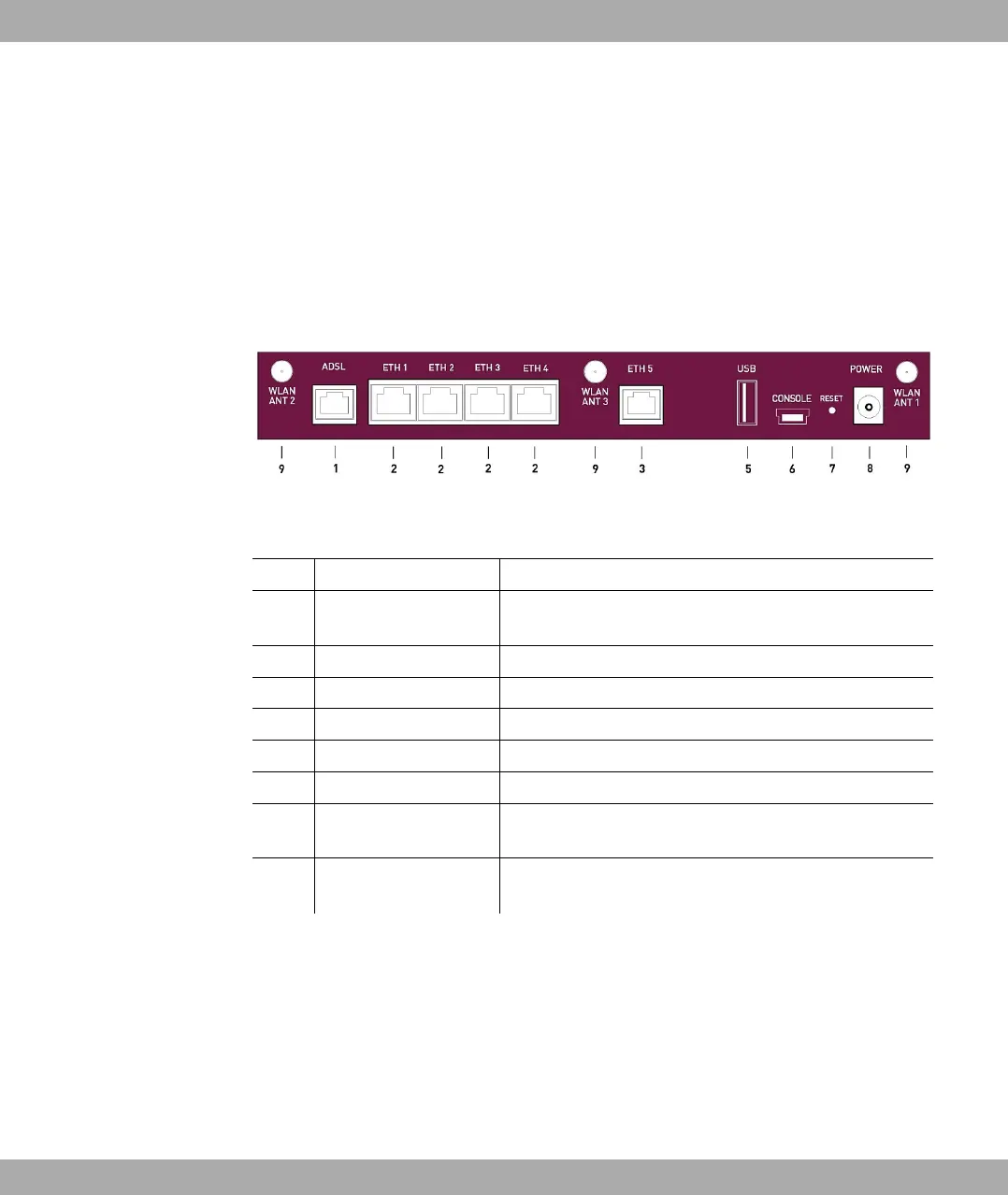

Fig. 12: bintec RS230aw rear panel
Rear panel
1 ADSL (grey) ADSL2+ interface
2 ETH1 / ETH2 / ETH3 /
ETH4 (yellow)
10/100/1000 Base-T Ethernet interface
3 ETH5 (white) 10/100/1000 Base-T Ethernet interface
5 USB USB connector
6 CONSOLE Serial interface
7 RESET Reset button
8 POWER Socket for plug-in power pack
9 WLAN ANT1 / ANT2 /
ANT3
RSMA connection (only bintec RS230aw )
without
Fig.
UMTS MAIN/AUX Connectors for UMTS antenna (only bintec RS230au+ )
3.3.3 Antenna connectors
The devices bintec RS230aw have 3 connectors for the external WLAN antenna. The
devices bintec RS230au+ have two connectors for the external UMTS/LTE antenna (SMA
connectors). The assignment of the two antenna connectors is shown in the following
graphic:
