Pin Position
4 Pair 2 +
5 Pair 2 -
6 Pair 1 -
7 Pair 3 +
8 Pair 3 -
3.6.3 ADSL interface
bintec RS230a and bintec RS230aw , bintec RS232j and bintec RS232jw as well as
bintec RS230au+ and bintec RS232j-4G have an ADSL interface (grey).
The ADSL interface is connected via an RJ11 plug.
For Annex A ( bintec RS230a , bintec RS230aw and bintec RS230au+ ), a cable with RJ
11 plug for the device connection and RJ 11 plug for connection to the ADSL splitter is re-
quired. (cable included.)
For Annex B/J ( bintec RS232j , bintec RS232jw and bintec RS232j-4G), a cable with RJ
11 plug for the device connection and RJ 45 plug for connection to the ADSL splitter is re-
quired. (cable included.)
Only the two inner pins are used for the ADSL connection.

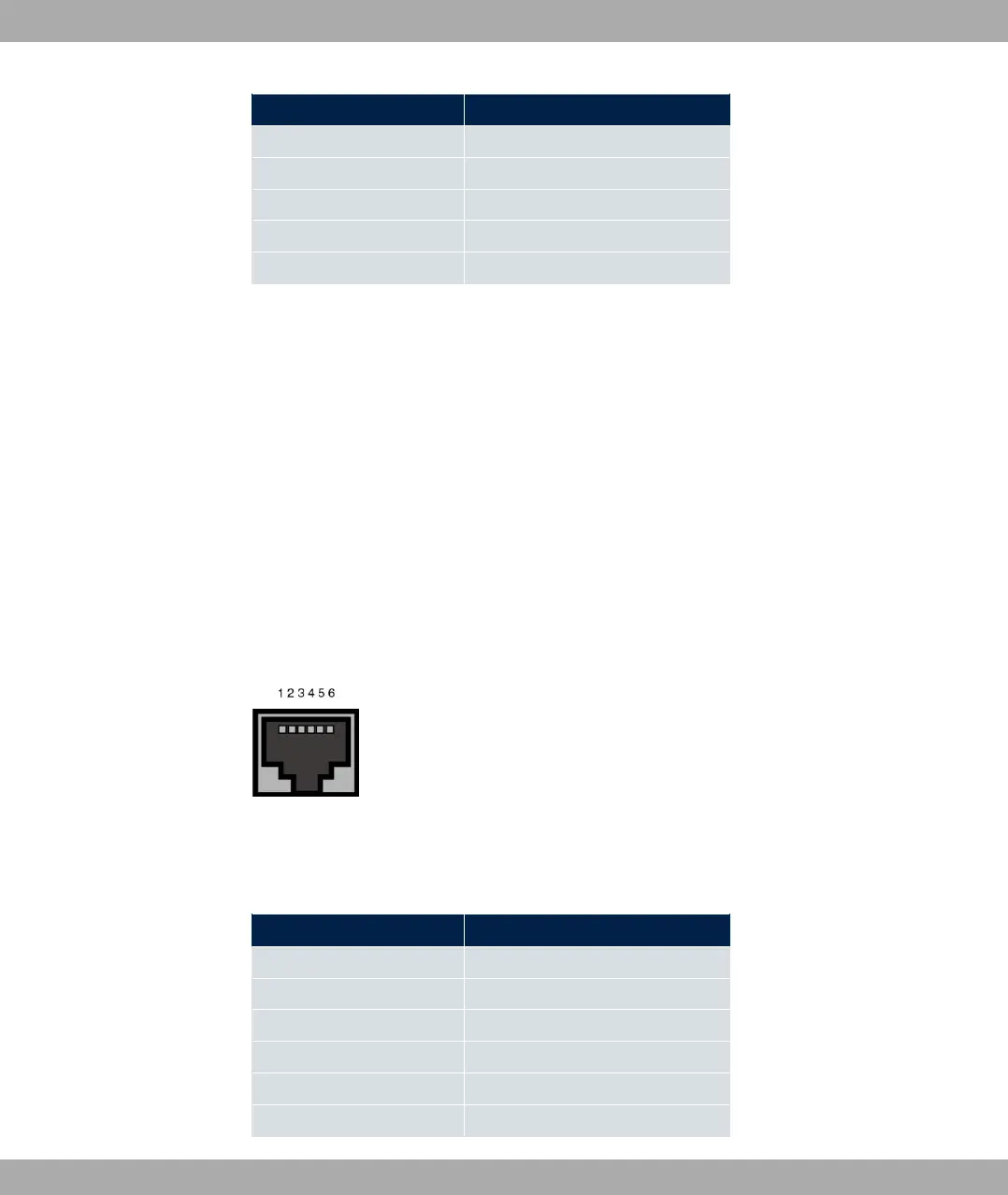

Fig. 23: ADSL interface (RJ11)
The pin assignment for the ADSL interface (RJ11 socket) is as follows:
RJ11 socket for ADSL connection
Pin Position
1 Not used
2 Not used
3 a
4 b
5 Not used
6 Not used
bintec elmeg GmbH
3 Installation
bintec RS Series 45
