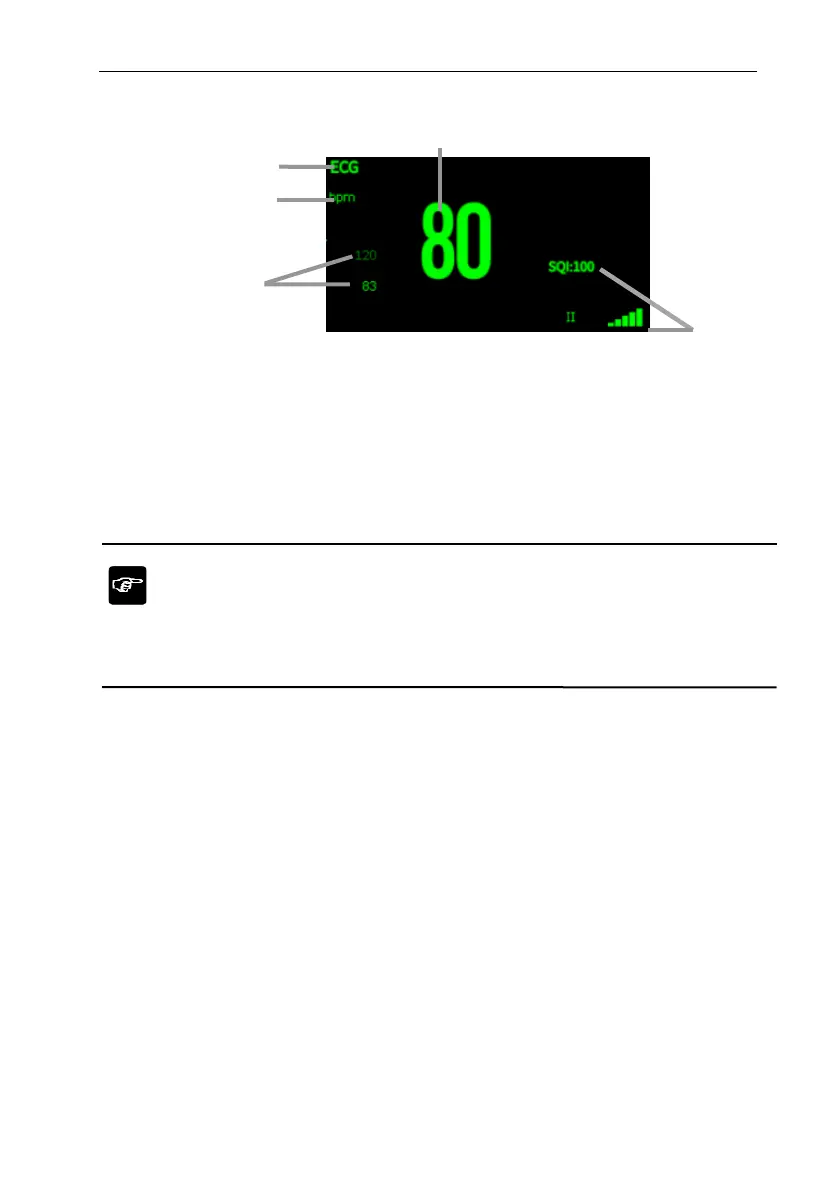

Parameter Display
(1) Parameter label
(2) HR unit
(3) HR alarm limit: If the HR alarm is turned off, the alarm close icon is displayed here.
(4) HR value
(5) ECG signal quality index: Indicates the signal quality of the primary
calculation lead.
NOTE
：
The ECG parameter area and waveform area are configured to be different for
different lead type and ECG settings.
8.4. Preparing for ECG Monitoring
8.4.1. Preparing the Patient Skin
Proper skin preparation is necessary for good signal quality at the electrode sites, as the
skin is a poor conductor of electricity. To properly prepare the skin, choose flat areas and
then follow this procedure:
1. Shave hair from skin at chosen electrode sites.
2. Gently rub skin surface at sites to remove dead skin cells.
3. Thoroughly cleanse the site with a mild soap and water solution.
4. Dry the skin completely before applying electrodes.
3
5
1
2
4
