Biotage Isolera Four - Shoulder Slope and Valley Fractionation; Fractionation Using the Shoulder Slope Parameter

411829-L, Collection and Fractionation April 2012 Page A-5
A
A.2 Shoulder Slope and Valley Fractionation
A.2.1 Fractionation Using the Shoulder Slope Parameter
When the Shoulder Slope parameter is enabled (the range is 1 to 5000 mAU/CV), the Isolera
system fractionates on rising and falling shoulders and double fractionates on valleys.

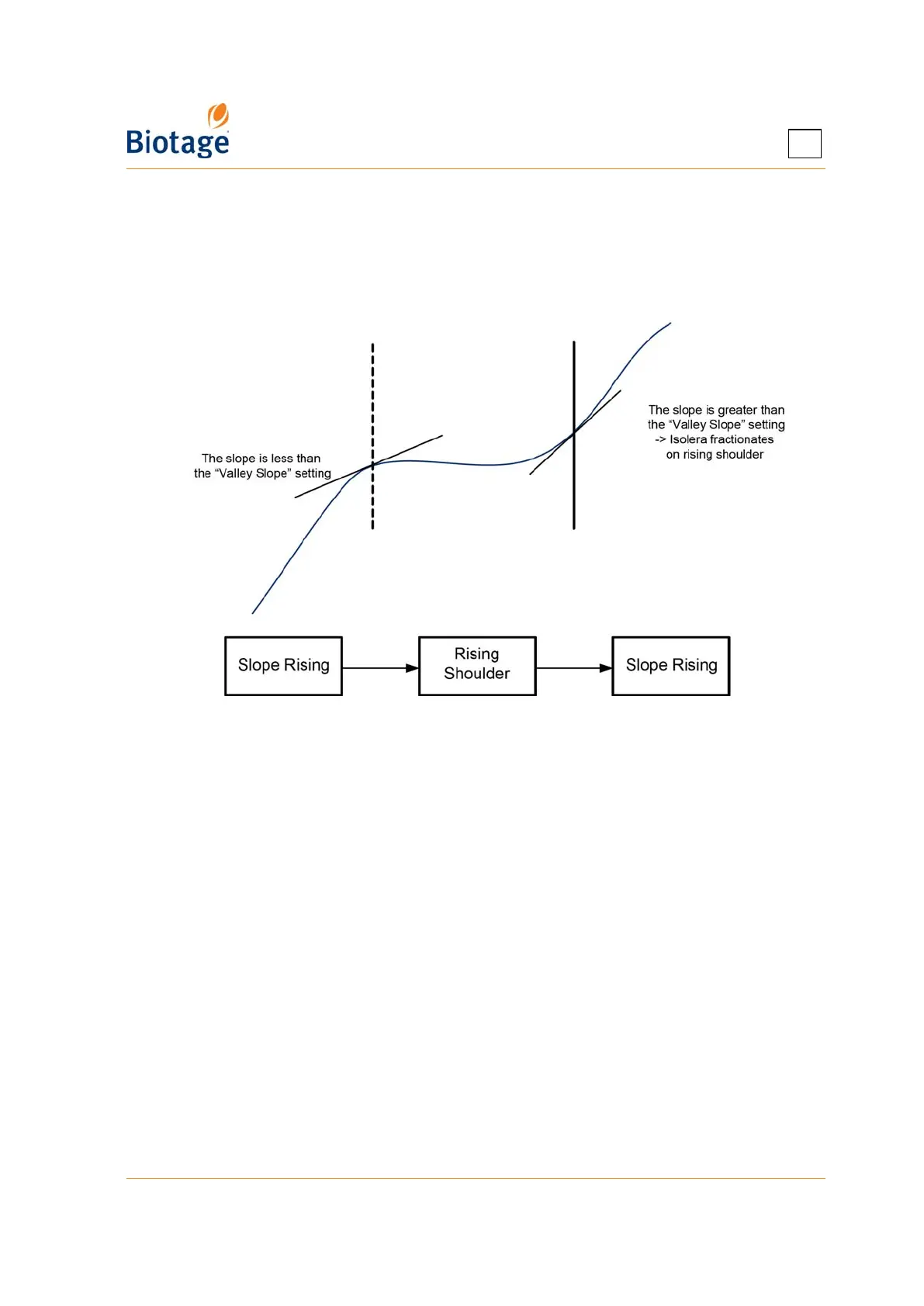

Figure A-1. Fractionation on Rising Shoulder
