Instruction manual NSF VSI / VSI W / VSI T / VSI
TW Maintenance
38065447002 en-US 67 / 101

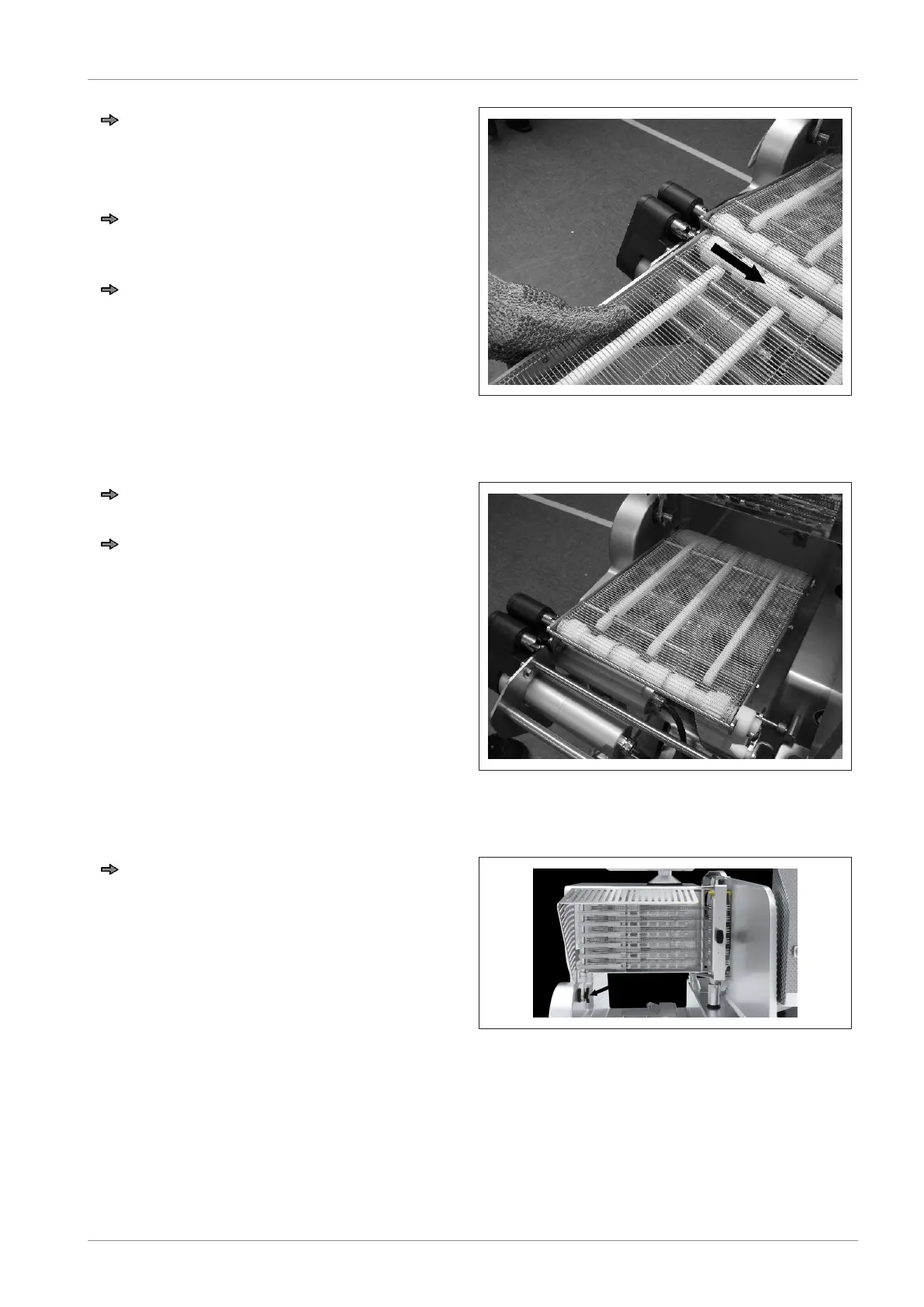

Pull conveyor belt on support bar to the
right.
Conveyor belt has been decoupled from
drive.
Use both hands to hold on to the sides of
the center of the conveyor and remove it
downwards.
Carefully place conveyor on an even sur-
face.
Fig.67: Decouple conveyor belt VSI TW
Weighing conveyor VSI TW
Lift weighing conveyor on the back, lift
up right shaft end from the guidance.
Remove weighing conveyor from the
coupling to the right.
Fig.68: Weighing conveyor
Depositing arm
Loosen screw connection and remove
hub of depositing arm from bearing to
the right.
Fig.69: Depositing arm
