Maintenance
Instruction manual NSF VSI / VSI W / VSI T / VSI
TW
68 / 101 38065447002 en-US

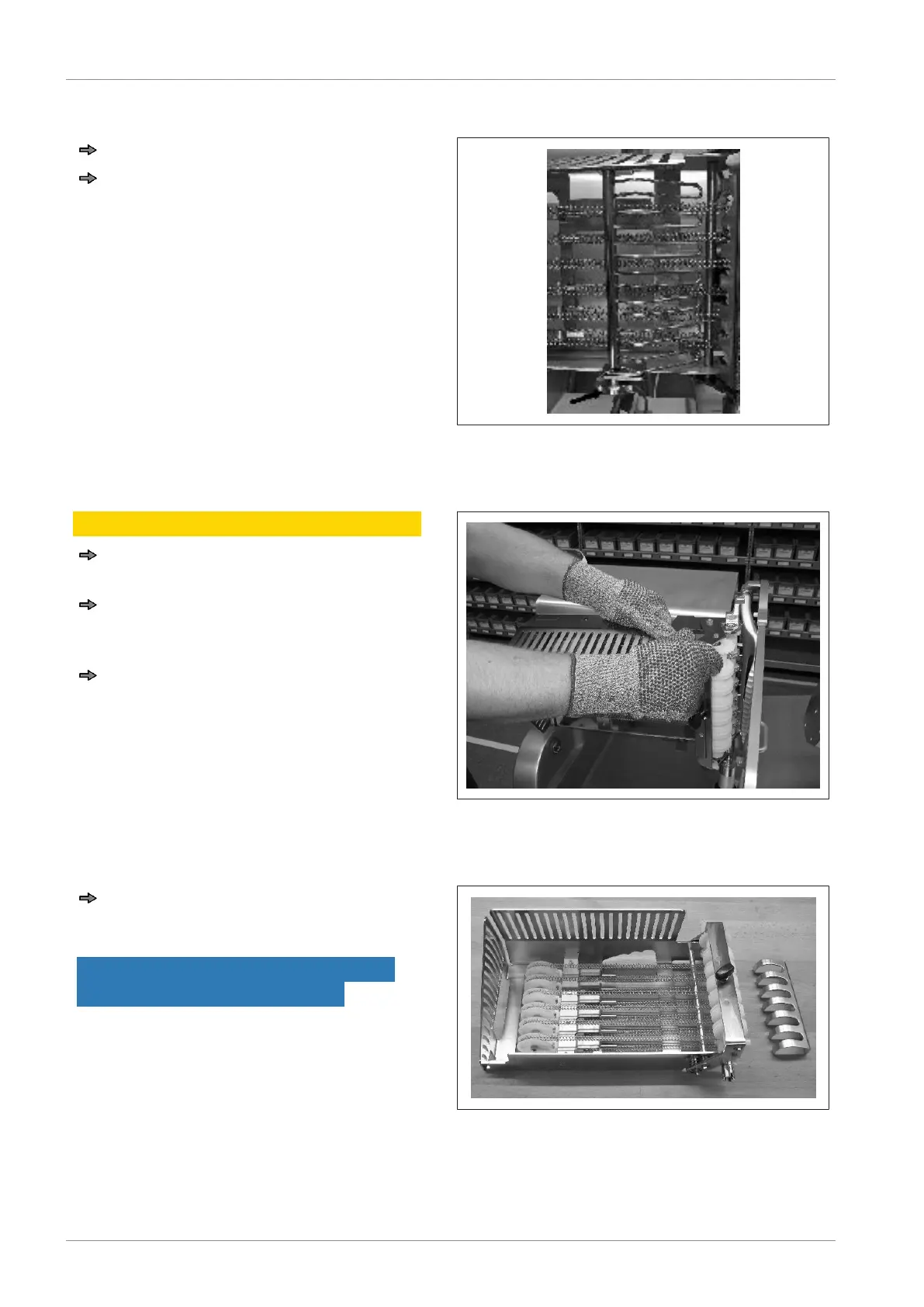

Shaving deflector
Loose screw.
Remove shaving deflector from chain-
frame first to the operator side and then
down.
Fig.70: Shaving deflector
Chain frame
CAUTION!Risk of injury at chain spikes.
Using the right hand, swivel feed roller to
the left and hold it firmly.
Using the left hand lift the complete
chain frame out of the bearing in the up-
ward direction.
Put chain frame aside with rear side
downward.
Fig.71: Chain frame
Guide cam
Loosen clamp handle on frame and re-
move guide cam from between the con-
veyor chains.
NOTICE!Twisted guide cam or chain
spikes can cause malfunctions.
Fig.72: Guide cam
