BK Precision 894 - Page 102

102
Note: In the List Sweep Comparator the signals for /BIN1 - /BIN9, /OUT, /AUX, /PHI, /PLO and /SREJ are
different from those of the BIN Comparison function.

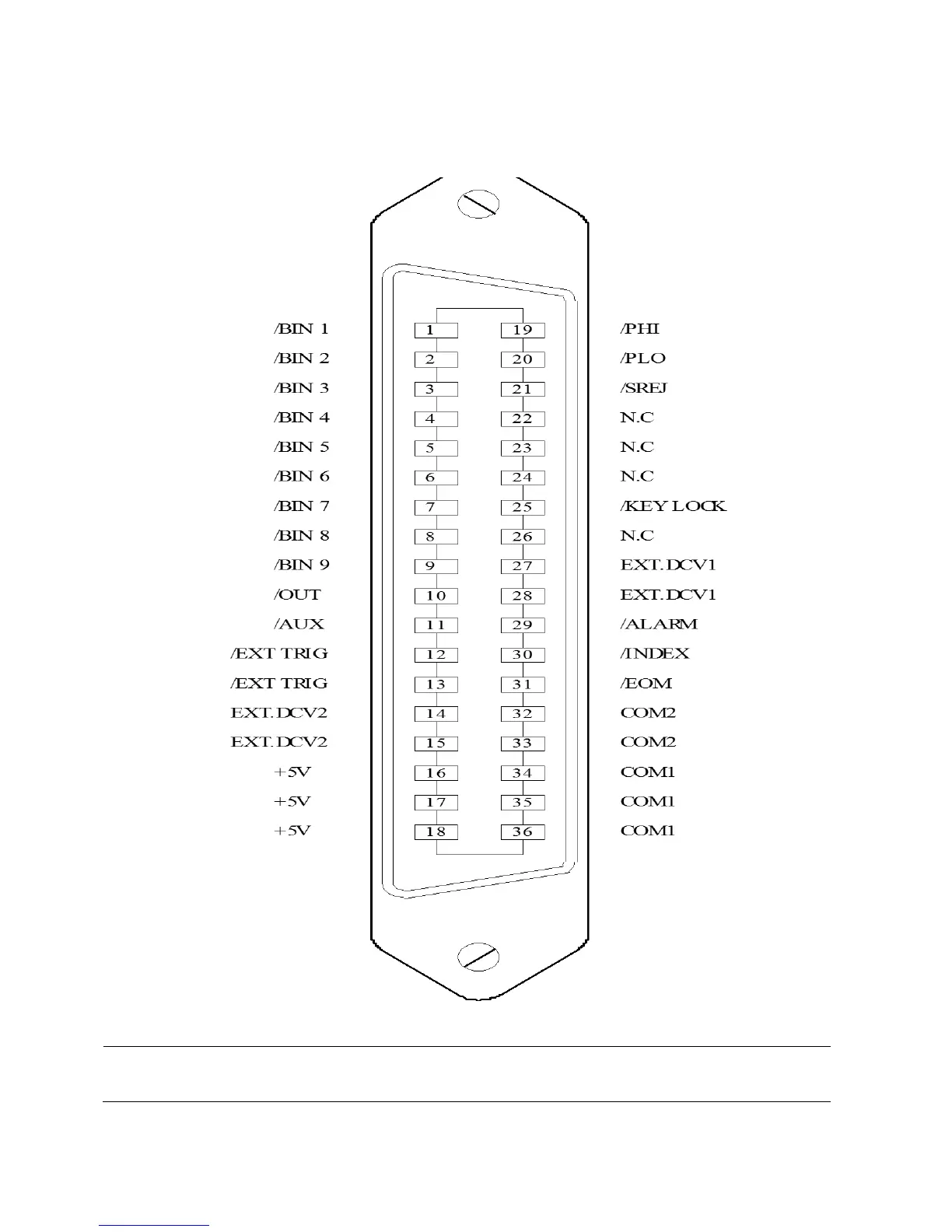

Figure 33 - Handler's Pinout
Figure 32 - Signal Distribution for BIN Comparison
