Measurement Parameters
The Measurement Parameters field lets the user select different settings for the measurement
to be taken.

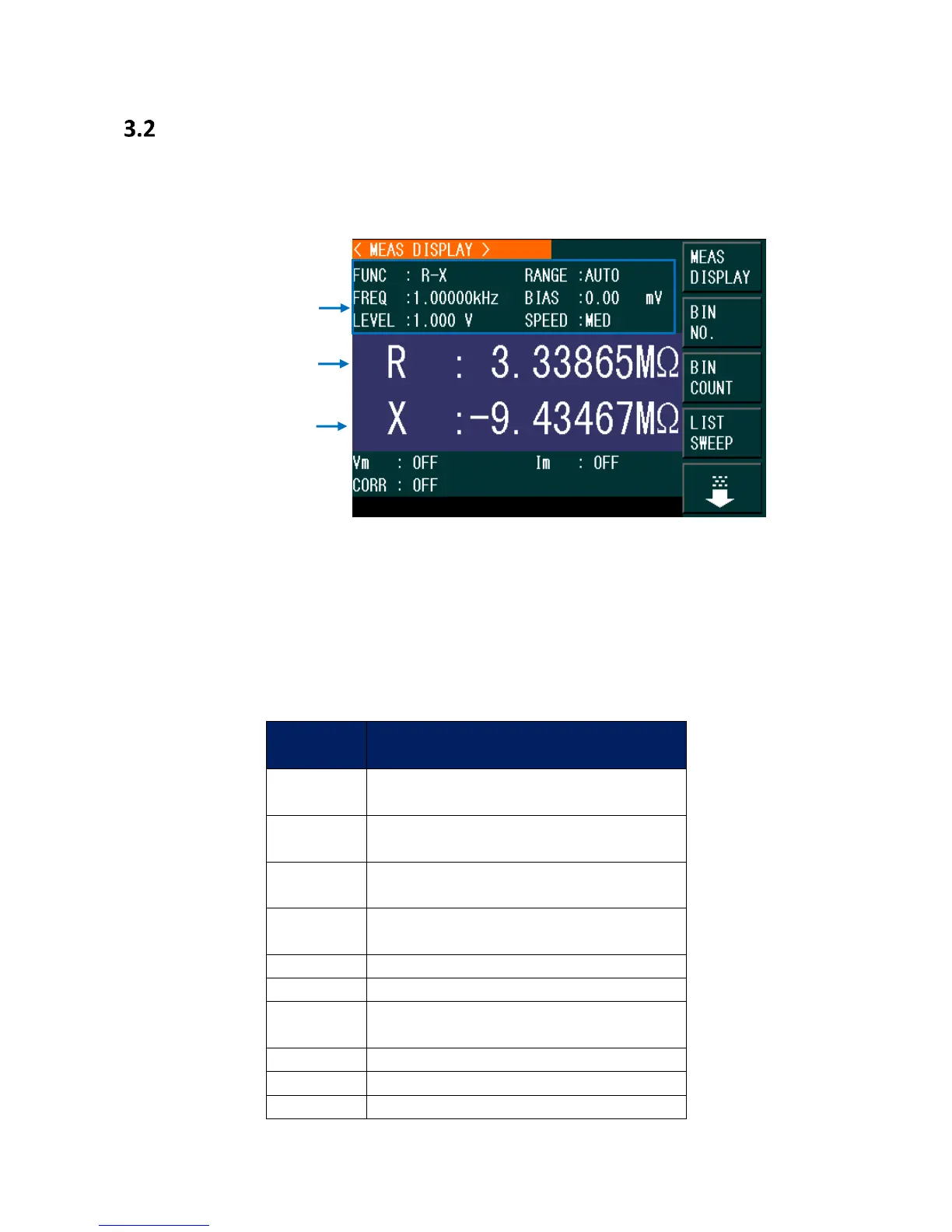

Figure 8 - Measurement Function Display
Test results of the primary and secondary parameters are displayed in two lines. The primary
parameter is displayed in the upper line while the secondary parameter is displayed in the lower
line.
Primary Parameters
Parameter
Description
Cp
Capacitance measured using a parallel
equivalent circuit model
Cs
Capacitance measured using a series
equivalent circuit model
Lp
Inductance measured using a parallel
equivalent circuit model
Ls
Inductance measured using a series
equivalent circuit model
Z
Impedance
Y
Admittance
R
Resistance using a specified AC
frequency and level
G
Conductance
DCR
Resistance using a DC bias.
L2-A*
Primary Inductance
Primary
Measurement
Secondary
Measurement
Measurement
Parameters
