DCR OPEN: Tests the Open resistance for DCR.
The following soft key will be displayed on the top right corner of the display:
ABORT: This soft key cancels the current open correction operation.
4) Keep the test fixture open (no connection), then press the softkey MEAS OPEN to
execute open calibration. The meter will beep when the correction is completed.
Short Correction
The short correction feature compensates for any residual impedance that may exist within the
test fixture or leads, as shown in Figure 12. Short Correction uses 48 fixed frequencies to adjust
and compensate the input.

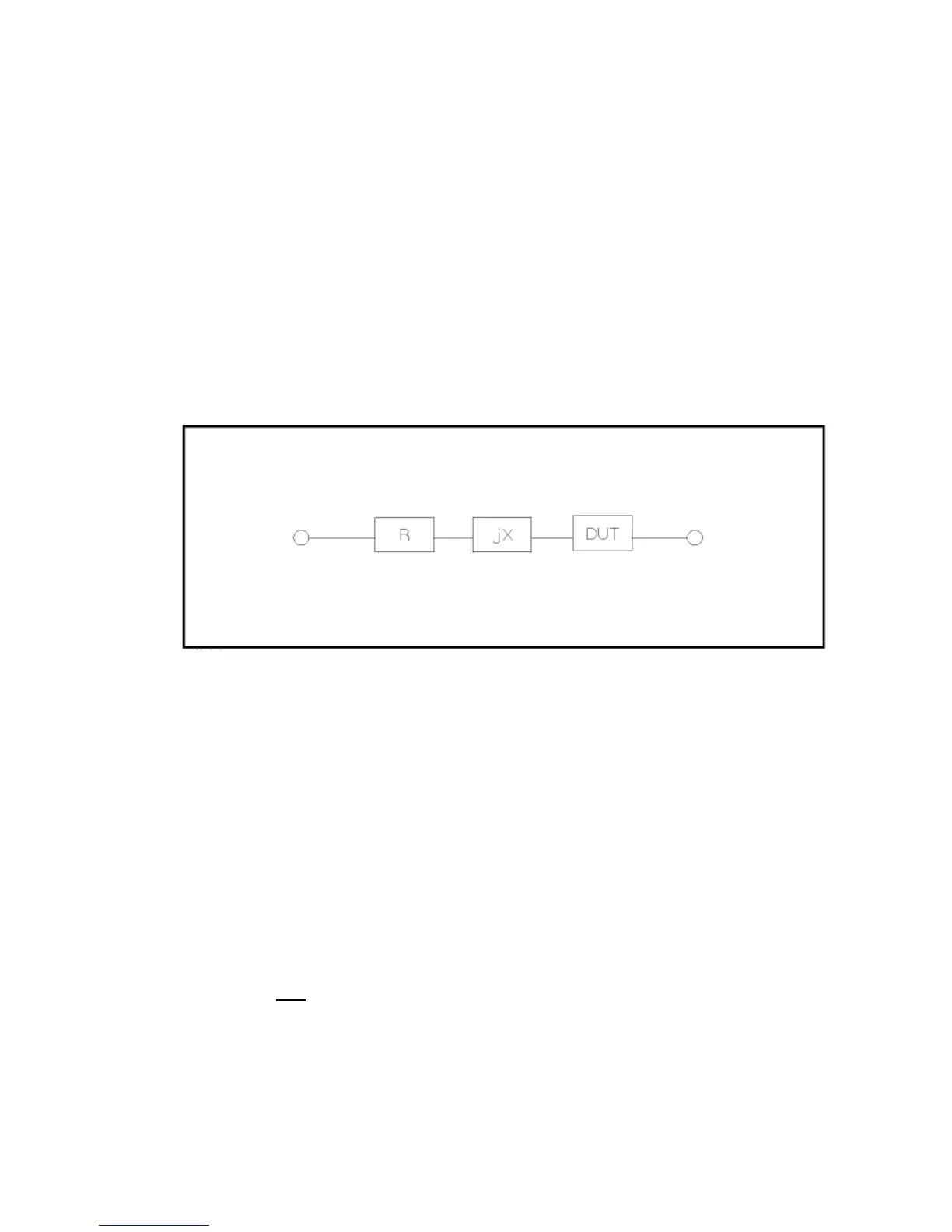

Figure 12 – Residual Inductance
Short Correction Procedure
1) Connect the test fixture to the test terminal, or insert a shorting bar into the test
fixture.
2) Press the SETUP button and enter the MEASURE SETUP menu.
3) Press the softkey, CORRECTION, to enter the Correction menu. Press the Down
Key and select the SHORT option. The following soft keys will be displayed on the
soft keys to the right of the screen:
ON: Applies a SHORT correction adjustment to the current measurement.
Press ON to perform a short-circuit correction.
OFF: Turns off the SHORT correction.
Press OFF to turn the SHORT correction function off. There will be no Short
Correction performed in measurements.
MEAS SHORT: Tests the residual impedance (resistance and reactance) over the 48 pre-
set frequencies when shorted.
