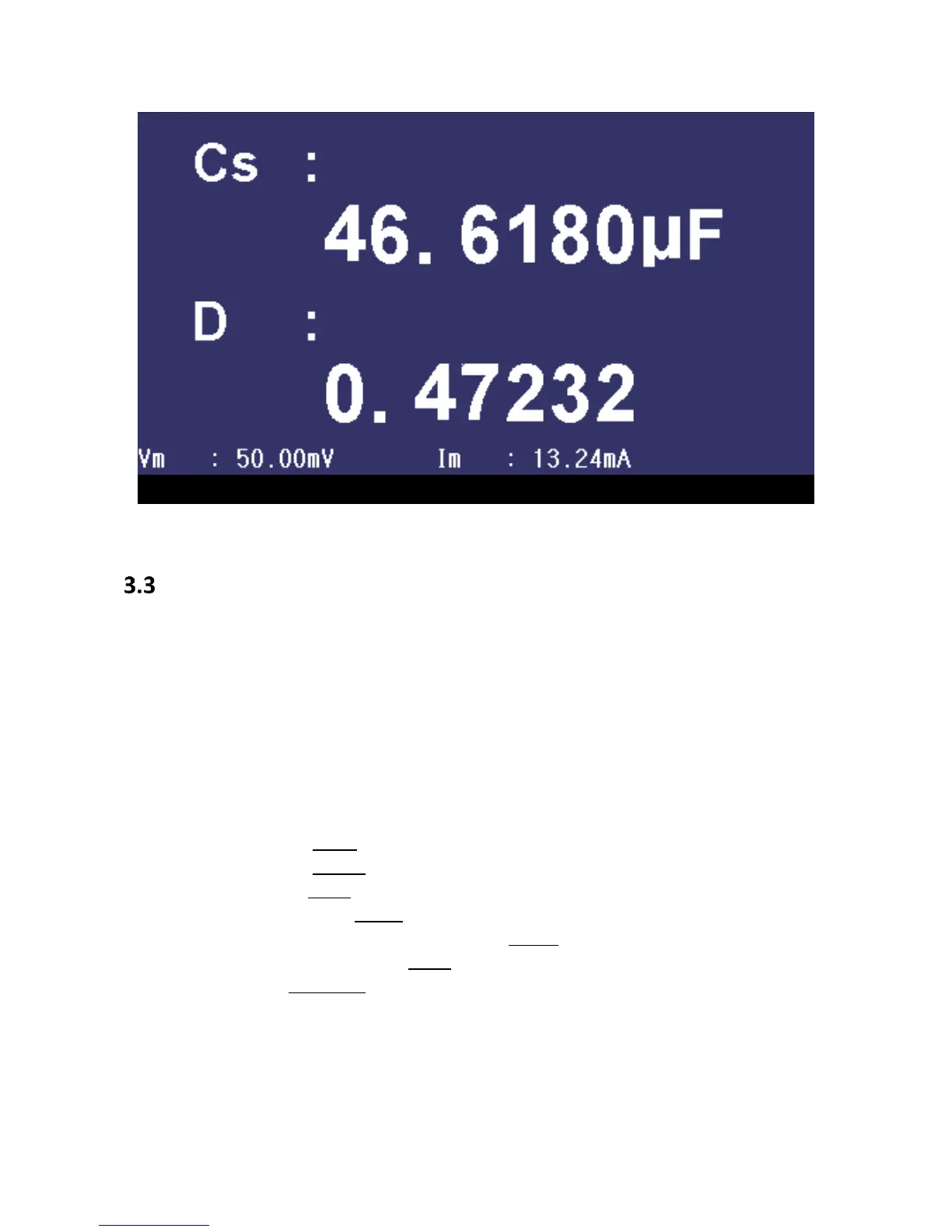

Figure 9 - Zoom
Correction
The user can perform OPEN, SHORT, and LOAD correction used to eliminate stray admittance,
residual impedances and other measurement errors. There are two correction methods.
Sweep correction: Performs an OPEN/SHORT correction at all pre-set frequency points.
Point frequency correction: Performs an OPEN/SHORT/LOAD correction at user-selected
frequencies.
The following parameters can be set on the <CORRECTION> page:
 Open Correction (OPEN)
 Short Correction (SHORT)
 Load Correction (LOAD)
 Cable length selection (CABLE)
 Single/Multiple Correction mode selection (MODE)
 Load Correction test function (FUNC)
 Spot Number (SPOT No.)
 Frequency points of OPEN, SHOR and LOAD (FREQ)
 Reference values for frequency points ( REF A, REF B)
 Open values for frequency points ( OPEN A, OPEN B)
 Short values for frequency points ( SHORT A, SHORT B)
 Load values for frequency points ( LOAD A, LOAD B)
