110

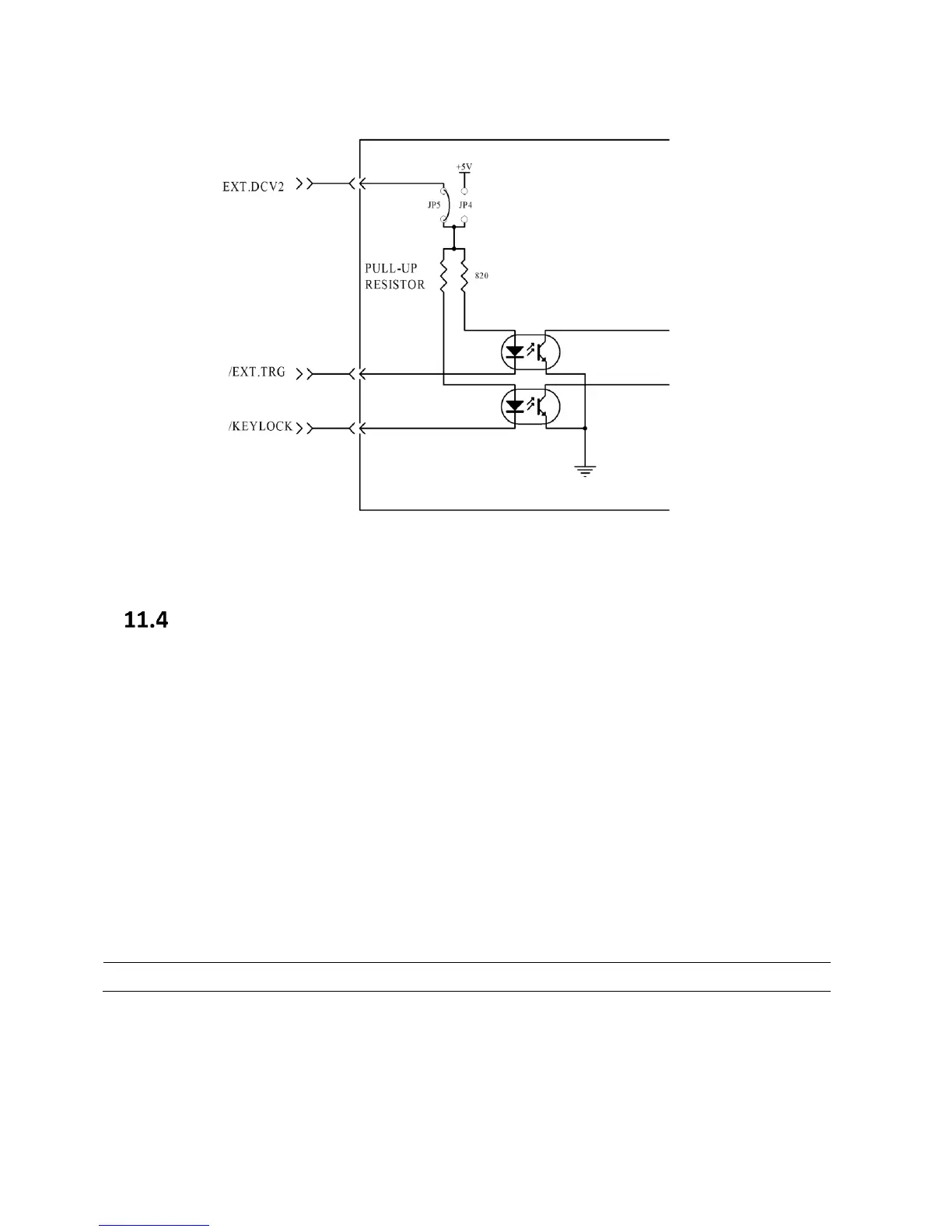

Figure 39 - Input Circuit for Control Signal
Handler Operation
The following procedure will show how to use the Handler Interface Comparison and the List
Sweep Comparison.
The procedure to set the Handler Interface Comparison is detailed below:
1. Press the softkey [LIMIT TABLE]. The LIMIT TABLE SETUP page will be displayed.
2. Set the standard value and the high limit and the low limit in LIMIT TABLE SETUP.
3. Move the cursor to COMP field. The softkey area will display :
ON
OFF
4. Press the softkey ON to enable the comparison function.
5. Press the sotfkey BIN NO. or BIN COUNT, and the DUT will be tested; at the same time,
you can set the counter for the DUT and the Auxiliary BIN.
Note: COMP ON/OFF can be set in BIN COUNT page.
The procedure to set the List Sweep Comparison is shown below:
