Blackmagicdesign URSA Mini User Manual

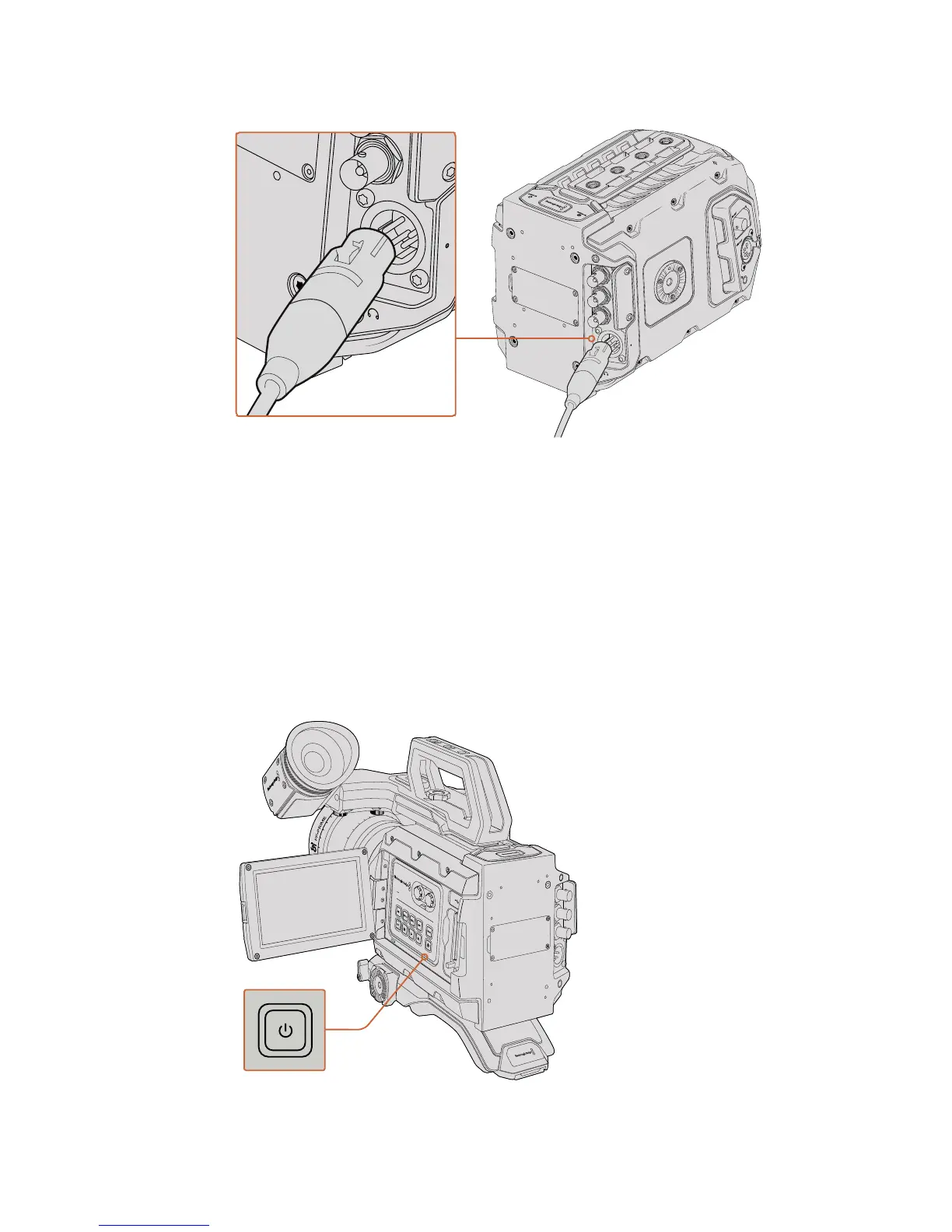

Use the supplied AC to 12V DC adapter to power your Blackmagic URSA Mini
You can use industry standard third party external batteries such as V mount or Gold
Mount batteries with your URSA Mini. Refer to the ‘mounting batteries' section for more
information about mounting the different types of battery plates to support different
batteries.
To turn on URSA Mini:
1 Press and release the ‘power’ button. On Blackmagic URSA Mini, the power button is
located on the control panel behind the fold out LCD. Simply open the LCD to access
the control panel.
2 Press and hold the ‘power’ button to turn your camera off.
You are now ready to insert CFast 2.0 cards and start recording!
To turn on your URSA Mini, open the fold out LCDtouchscreen, then press and
release the power button on the control panel. Press and hold to turn off
SDI OUT
SDI IN
REF IN
TC IN
12V
SDI OUT
SDI IN
REF IN
TC IN
12V
IRIS
REC
FOCUS
PEAK
DISP
MENU
12Getting Started

Blackmagicdesign URSA Mini Specifications

General

Dynamic Range	15 stops
Sensor	Super-35mm CMOS
Resolution	4.6K (4608 x 2592)
Lens Mount	EF, PL
Recording Formats	Blackmagic RAW, ProRes
Media	CFast 2.0, SD cards (UHS-II)
Frame Rates	Up to 60 fps at 4.6K, 120 fps in HD.
Built-in ND Filters	2-stop, 4-stop, 6-stop
ISO Range	200 to 25600
Weight	2.5 kg (5.5 lbs)
Battery Life	Approx. 90 minutes (BP-U series)
