Attaching the URSA Studio Viewfinder
The attached V-lock plate on the top of the unit lets you connect a Blackmagic Studio
Viewfinder. This positions the studio viewfinder directly at the eye level when the camera
ismounted on a pedestal or tripod.

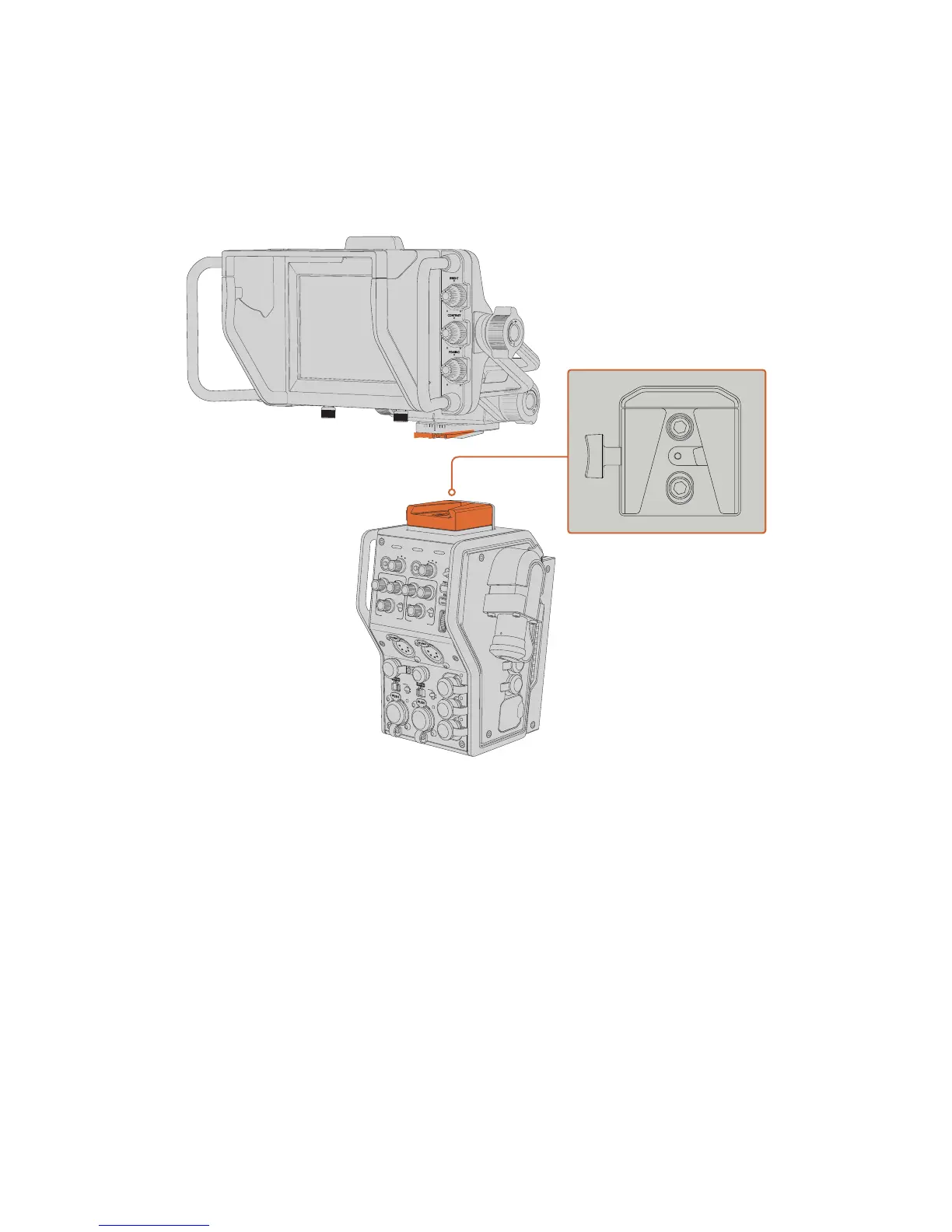

The V-Lock mount on the top of the camera unit lets you mount
the Blackmagic URSA Studio Viewfinder
Plugging in a Talkback Headset
Plug a broadcast headset into one of the two 5 pin XLR connectors on the front of the
cameraunit. Having two headset connectors allows two people to communicate with
crewsimultaneously.
That's all there is to getting started! With the fiber converters powered and video connected
viaSMPTE fiber, you can start using the converters to create your live production with greater
flexibility and efficiency. Please continue reading the manual for more information on how to
use all the features on your Blackmagic fiber converters.
POWER
RET 1
INTERCOM 1
INTERCOM 2
PGM1
MIC
ON
ENG
ENG
PROD
ON
PROD
OFF
INCOM
MIC
INCOM
IRIS
PGM2
PGM1
PGM2
RET 2
LIGH
ON
1
2
3
TALLY
FIBER
1
2
3
1
2
1
2
3
TRACKER
LINE
+48V
OFF
DC OUT
SDI OUT
ETHERNET
REF OUT
MIC
MIC
+48V
OFF
5
4
3
2
1
5
4
3
2
1
LINE
174Getting Started with BlackmagicFiber Converters
