Introduction to URSA Mini
Industry standard BNC connectors are located on the right and rear panel of your URSA Mini
forSDI connections. There are also two separate LANC inputs, one for the side handle and one
at the rear of the camera for an external LANC controller.
XLR inputs are on the top panel behind the mounting points for professional balanced analog
audio on URSA Mini and URSA Mini Pro 4.6K, and AES digital audio input on URSA Mini
Pro4.6K. A 4 pin XLR connector is provided on the rear panel for external power input, and an
output is available on the right side for powering accessories such as Blackmagic
URSAViewfinder.
The USB port above the storage media slots on your URSA Mini is for connecting to a
computerwhen updating your camera’s internal software.

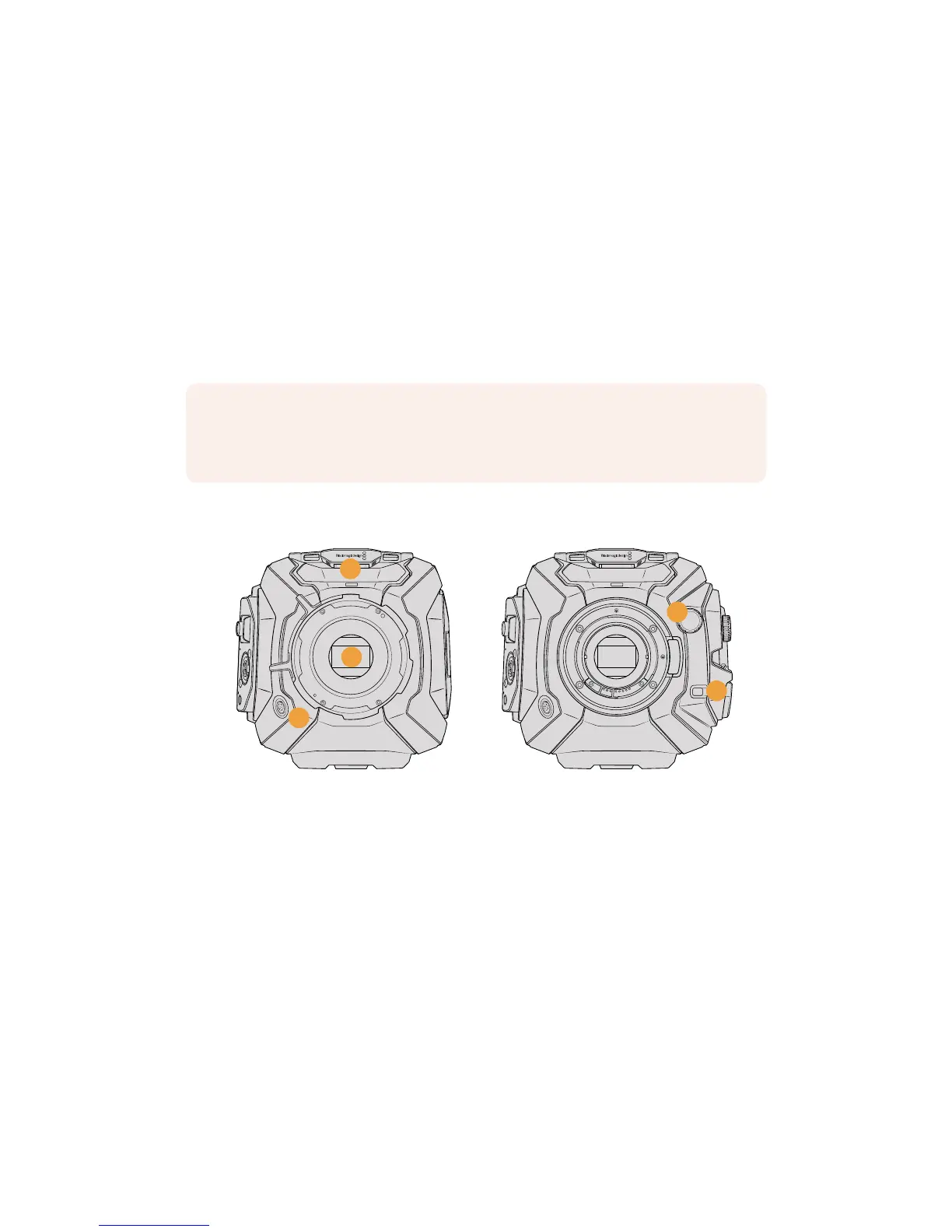

Camera Front
4.6K
LENS
SDI OUT
12V OUT
3
1
2
ND
FILTER
4.6K
AUTO
W/B
LENS
SDI OUT
12V OUT
4
5
URSA Mini PL model URSA Mini Pro 4.6K model
1 Stereo Microphone
Built in high quality stereo microphone. Refer to the ‘settings’ section for information on
microphone audio settings.
2 Lens Mount
URSA Mini cameras feature either an EF or PL lens mount. URSA Mini Pro 4.6K features
an interchangeable lens mount that allows switching between EF, F, PL and B4 mounts.
Refer to the 'interchangeable lens mount' section for more information.
3 Broadcast Lens Connector
This connector provides power and control to compatible PL and B4 mount lenses
with12 pin connections. This connector is only available on URSA Mini PL and
URSAMini Pro 4.6K models. Refer to the 'using servo zoom lenses' section in this
manual for a list of compatible lenses, including PL and B4 models.
NOTE URSA Mini Pro 4.6K features additional ergonomic controls that make it easy
toquickly access the camera’s essential settings and functions without opening the
foldout touchscreen.
