Headphones Volume
This slider adjusts the output levels for headphones attached to URSA Mini’s 3.5mm
headphone jack. Move the audio slider left or right to adjust levels. These levels will also
update when you adjust the headphone volume using the settings wheel on the forward
control panel.
Speaker Volume
This slider adjusts the output levels for your URSA Mini’s built in speaker. Move the audio slider
left or right to adjust levels. These levels will also update when you adjust the speaker volume
using the settings wheel on the forward control panel.
Pad XLR -20dB
The -20dB pad option gives you added control to further reduce the input gain levels on your
URSA Mini’s XLR audio inputs when shooting in a loud environment even after your input levels
are already turned down.
Pad Cam Mic - 15 dB
The -15dB pad option gives you added control to further reduce the microphone input gain
levels on your URSA Mini’s internal microphone when shooting in a loud environment even after
your input levels are already turned down.
Cam Mic Low Cut Filter
Tap this switch icon to enable the low cut filter for your camera’s internal microphones.
This filter helps to reduce potential wind noise or low frequency rumbling that may occur in
exterior shooting conditions. Note that the 'pad cam mic -15 dB' selector must be switched off
for this function to work.
Setup Settings
The ‘setup’ tab contains your URSA Mini’s identification settings, software version, function
button settings and other camera settings not directly linked to recording or monitoring. This
menu has four pages, which you can cycle through by tapping the arrows at the edge of the
LCD touchscreen, or swiping left or right.
Setup Settings Page 1
The first page of your URSA Mini's 'setup' tab contains the following settings.

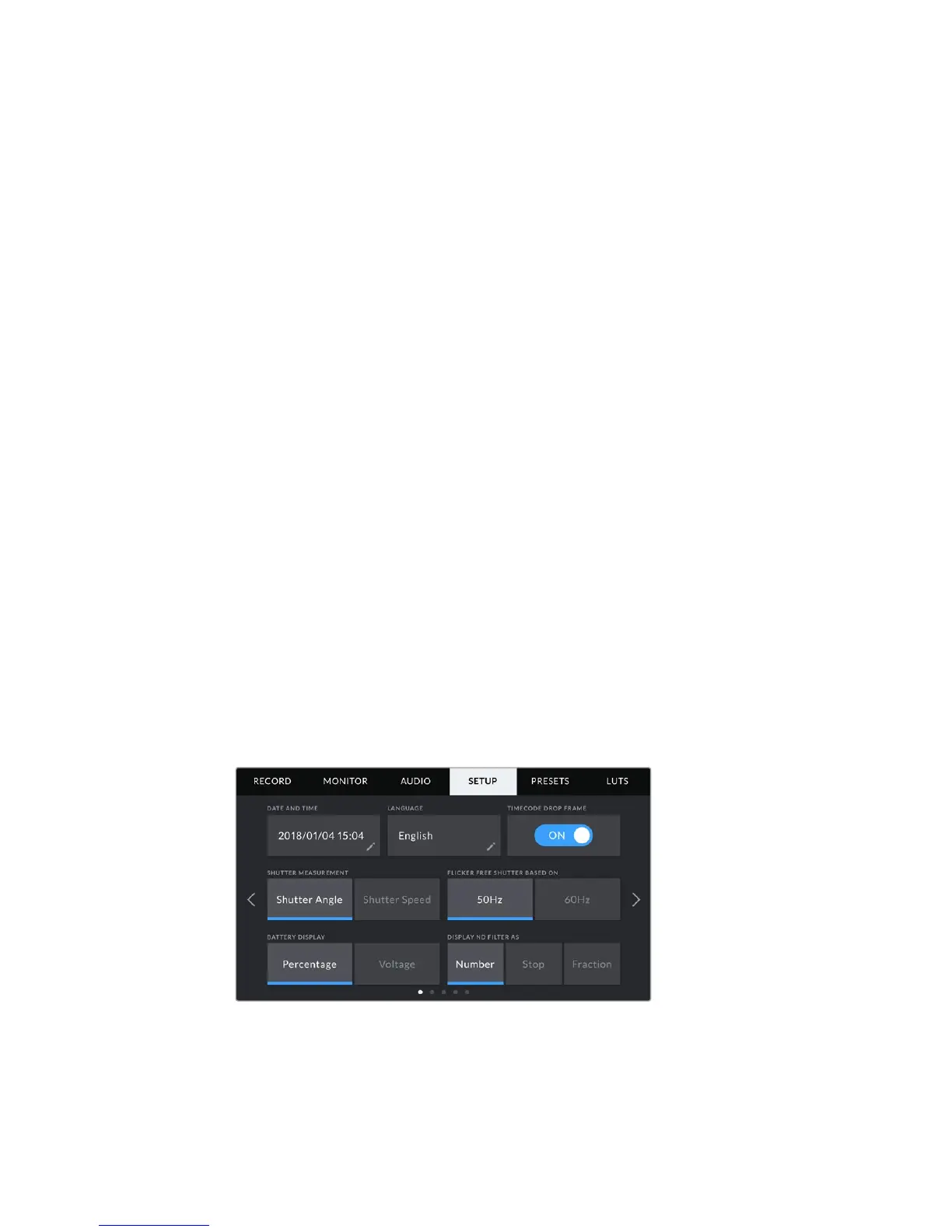

Setup menu in URSA Mini. On URSA Mini Pro 4.6K there is an additional
option to customize how the ND filter information is displayed.
108Settings
