Channel Source
Use the 'record channel 1 source' and 'record channel 2 source' buttons to select your audio
source for each audio channel. The options are
Camera Left or Right
Use this setting to record from your camera's internal microphones.
Camera Mono
Use this setting to record audio from your URSA Mini Pro 4.6K's built in microphone's
left and right channels onto a single audio channel.
XLR 1 or 2
Use this setting to record from your camera's XLR inputs. Depending on which audio
signal you've set on your URSA Mini Pro 4.6K's internal control panel switches, your
XLRinput may be listed as 'mic,' 'line,' or 'AES.' If phantom power is enabled and you
have your XLR input set to 'mic' you'll also see a '+48V' indicator here. OnURSA Mini
Pro 4.6K, it is important to ensure that the 48V switch gets turned ‘off’ when you
disconnect your phantom powered microphone.
XLR 1 or 2 - Mic Backup
Use this setting to record audio from a microphone plugged into your URSA Mini Pro
4.6K's XLR 1 or 2 input at a lower level than the standard 'mic' recording. This can
be used to avoid audio clipping in the event of an unexpected increase in loudness.
This feature will only be available as a selectable item if the XLR 1 or 2 input switch is
set to 'mic'.
None
Use this setting to disable your audio channel.
Recorded Channel 1/2 Level
Use these sliders to adjust the recording levels of your chosen channel 1 and 2 sources.
Audiometers are included with each slider to help you set the correct audio level. These levels
will also update when you adjust the audio using the audio knobs on the ergonomic
control panel.
To achieve optimum audio quality, ensure your audio levels do not reach 0 dBFS. This is the
maximum level that your camera can record, meaning that any audio that exceeds this level will
be clipped, resulting in distortion.

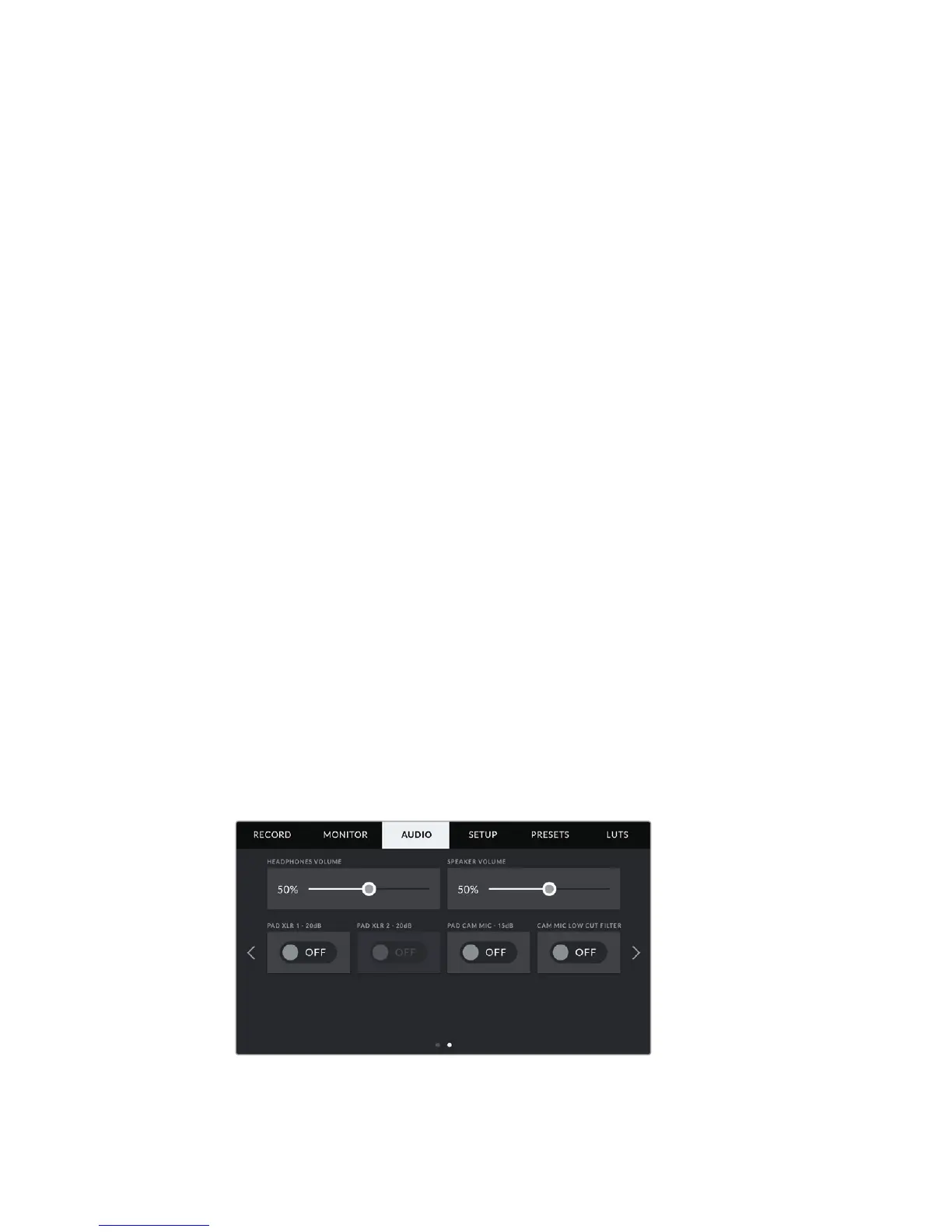

Audio Settings 2
The second page of your URSA Mini Pro 4.6K's 'Audio' tab contains the following settings
107Settings
