Blackmagicdesign URSA Mini User Manual

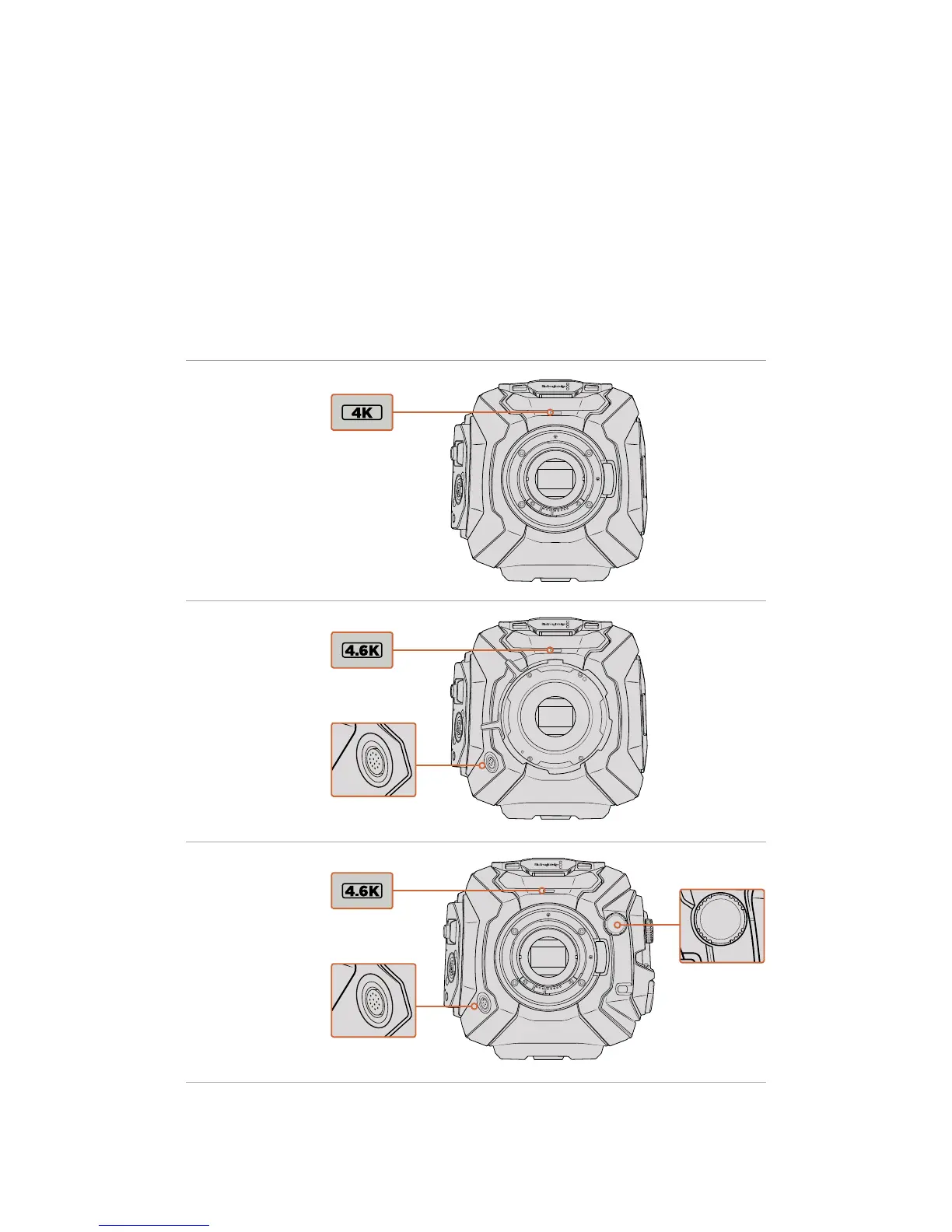

Which camera are you using?
You’ll notice while reading this manual that occasionally a feature will be specific to a particular
Blackmagic URSA Mini camera. All URSA Mini cameras produce incredible, wide dynamic range
images and share the same basic chassis. There are some differences between different
models, though.
The available models are
 URSA Mini 4K
 URSA Mini 4.6K
 URSA Mini Pro 4.6K
URSA Mini 4K EF
4K
SDI OUT
12V OUT
URSA Mini 4.6K PL
4.6K
LENS
SDI OUT
12V OUT
ND
FILTER
4.6K
AUTO
W/B
LENS
SDI OUT
12V OUT
12 pin broadcast
connector
URSA Mini Pro 4.6K
ND
FILTER
4.6K
AUTO
W/B
LENS
SDI OUT
12V OUT
ND
FILTER
4.6K
AUTO
W/B
LENS
SDI OUT
12V OUT
ND filters
ND
FILTER
4.6K
AUTO
W/B
LENS
SDI OUT
12V OUT
12 pin broadcast
connector
6Which camera are you using

Blackmagicdesign URSA Mini Specifications

General

Dynamic Range	15 stops
Sensor	Super-35mm CMOS
Resolution	4.6K (4608 x 2592)
Lens Mount	EF, PL
Recording Formats	Blackmagic RAW, ProRes
Media	CFast 2.0, SD cards (UHS-II)
Frame Rates	Up to 60 fps at 4.6K, 120 fps in HD.
Built-in ND Filters	2-stop, 4-stop, 6-stop
ISO Range	200 to 25600
Weight	2.5 kg (5.5 lbs)
Battery Life	Approx. 90 minutes (BP-U series)
