PTZ Interface
Both the studio unit and camera unit has a 9 pin DE-9 connector so you can connect a PTZ
controller at the studio end, and the remote head at the camera end. The PTZ commands are
embedded in the SDI signal connected between the units via the SMPTE fiber cable.

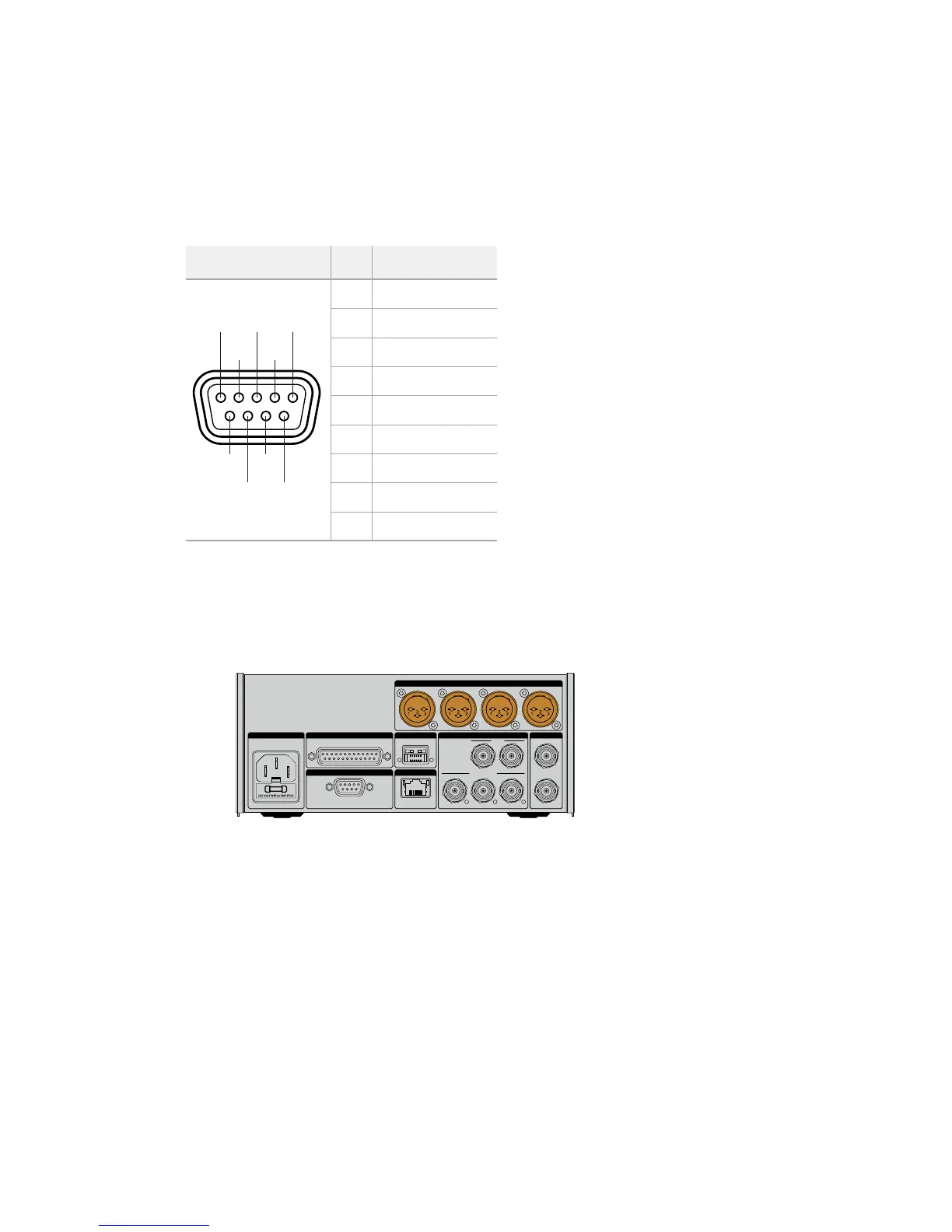

PTZ Interface Pinout Diagram
External view Pins Signal
1 GND
2 RS422 Tx-
3 RS422 Rx+
4 GND
5 N/C
6 GND
7 RS422 Tx+
8 RS422 Rx-
9-pin ‘PTZ’ connector 9 GND
Audio Outputs
The four XLR audio outputs on the studio unit give you the option to output the audio plugged
into inputs 1 and 2 from your URSA Mini or URSA Broadcast camera, and the two XLR audio
inputs on the camera unit.
Outputs 1 and 2 on the studio unit correspond to XLR inputs 1 and 2 on URSA Mini or
URSA Broadcast.
Outputs 3 and 4 on the studio unit correspond to XLR inputs 1 and 2 on the Blackmagic Camera
Fiber Converter.
