– Transmission device to the fire brigade
– Key deposit
– Signal lamp (e.g. BEGA flush-mounting lamp or BL 200)
– FSE release element monitoring
– Four freely programmable changeover relays
Notice!
The requirements of the local fire department must be taken into account during
programming.
The module is used almost exclusively in Germany.

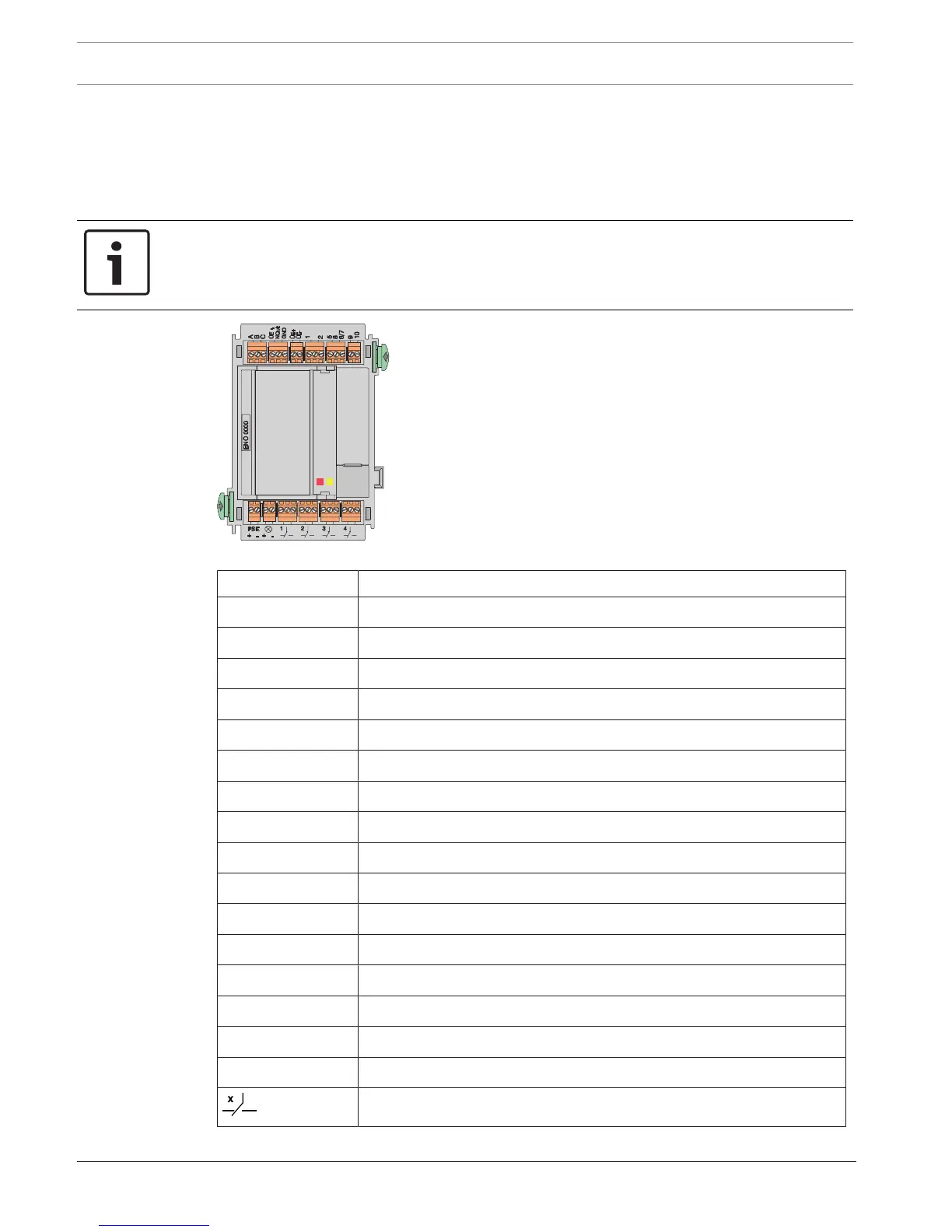

Figure4.59: ENO0000B Fire Service Interface Module
Labeling Connection
A Ground
B Transmission unit control
C Feedback contact
ÜE Automatic dialer and transmission unit fault
NQuit Acknowledge
GND Ground
ÜE+ | ÜE- Power supply of transmission unit
1 Monitoring key deposit
2 Ground
5 Door release magnet, +12V/24V, approx. 10W
8 Key deposit lock monitoring
6 | 7 Ground
9 Heating, +24V, approx. 8W
10 Ground
FSE+ | − FSE release element monitoring
⊗ + | − Signal lamp, e.g. BEGA lamp +24V, approx. 10W
Relay 1-4
Information on the redundant connection of the module can be found in Redundancy, page 40.
