4.9.14 RML 0008 A Relay Module for Low Voltage
Relay module for low voltage with eight changeover relays (type C relays) for connecting
external elements e.g. notification appliances, smoke dampers etc.
Each relay has one NO (normally open) and one NC (normally closed) contact.
The maximum permissible contact load is 30VDC/1A.

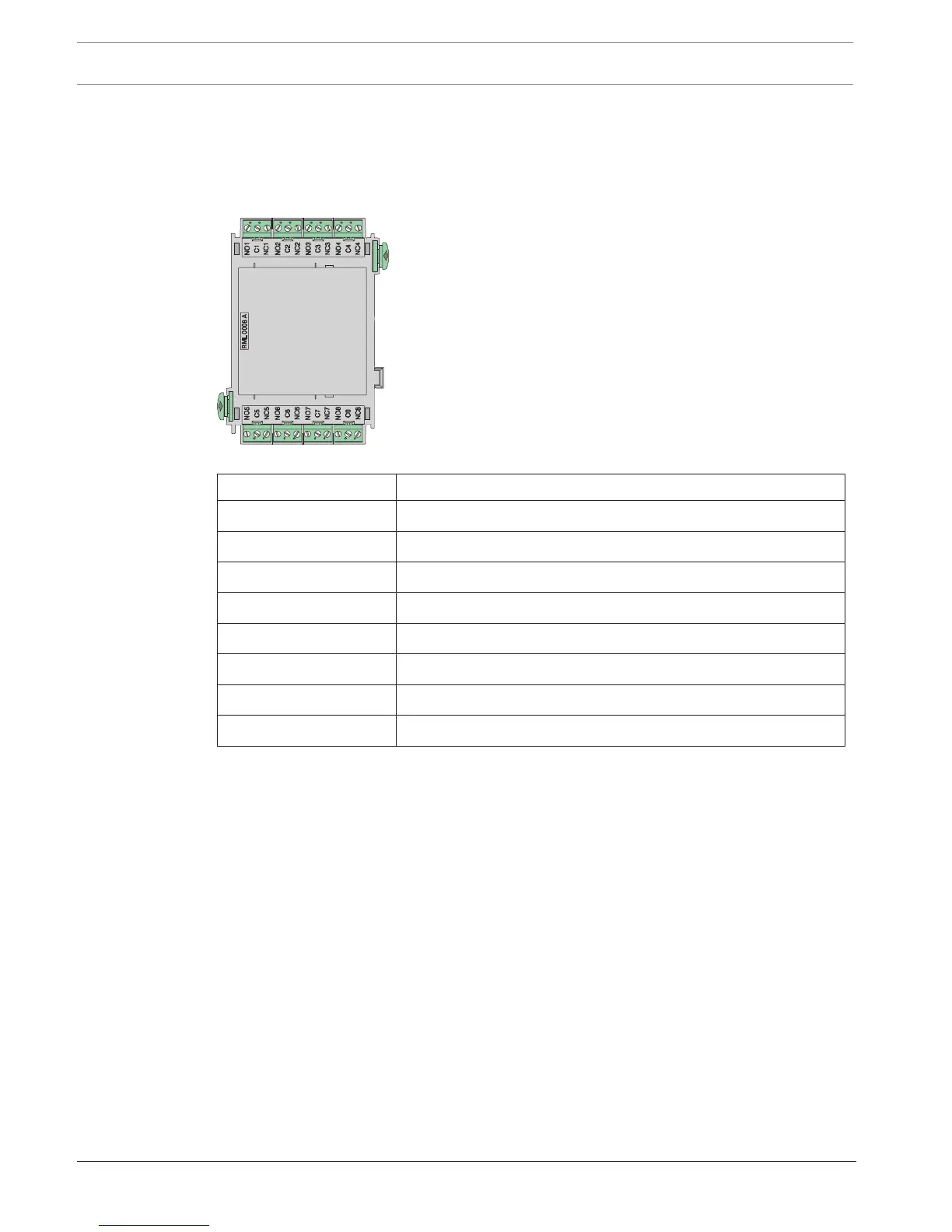

Figure4.71: RML 0008 A Relay Module for Low Voltage
Labeling Connection
NO1 | C1 | NC1 Relay 1
NO2 | C2 | NC2 Relay 2
NO3 | C3 | NC3 Relay 3
NO4 | C4 | NC4 Relay 4
NO5 | C5 | NC5 Relay 5
NO6 | C6 | NC6 Relay 6
NO7 | C7 | NC7 Relay 7
NO8 | C8 | NC8 Relay 8
The technical data can be found in RML 0008 A Relay Module for Low Voltage, page 156.

Bosch FPA-5000 Specifications

General

Max Number of Detectors per Loop	254
Display	LCD
Network Capability	Yes
Power Supply	24 V DC
Operating Temperature	-5°C to +50°C
Communication Ports	Ethernet
Humidity Range	95% non-condensing
