Bosch FPA-5000 System Information Guide

114 en | Installation Modular Fire Panel
09.2017 | 11.3 | F.01U.028.089 System Information Bosch Sicherheitssysteme GmbH
4.9.11 LSN1500A LSN improved Module 1500mA
This module can be used to connect an LSN loop with
– up to 254 LSN improved elements with a max. line current of 1500mA and a cable length
of up to 3000m (depending on configuration and cable type)
– up to 127 classic LSN elements with a max. line current of 300mA and a cable length of
up to 3000m (depending on configuration and cable type).
!
Caution!
The module may only be connected to a PRD0004A Panel Rail Long, where it requires two
slots (see ).
The module must be connected to the first two slots on the left of the panel rail.
Notice!
To ensure that the fire detection system is operated in compliance with EN 54‑13, each LSN
stub and T-tap must be terminated with EOL modules.

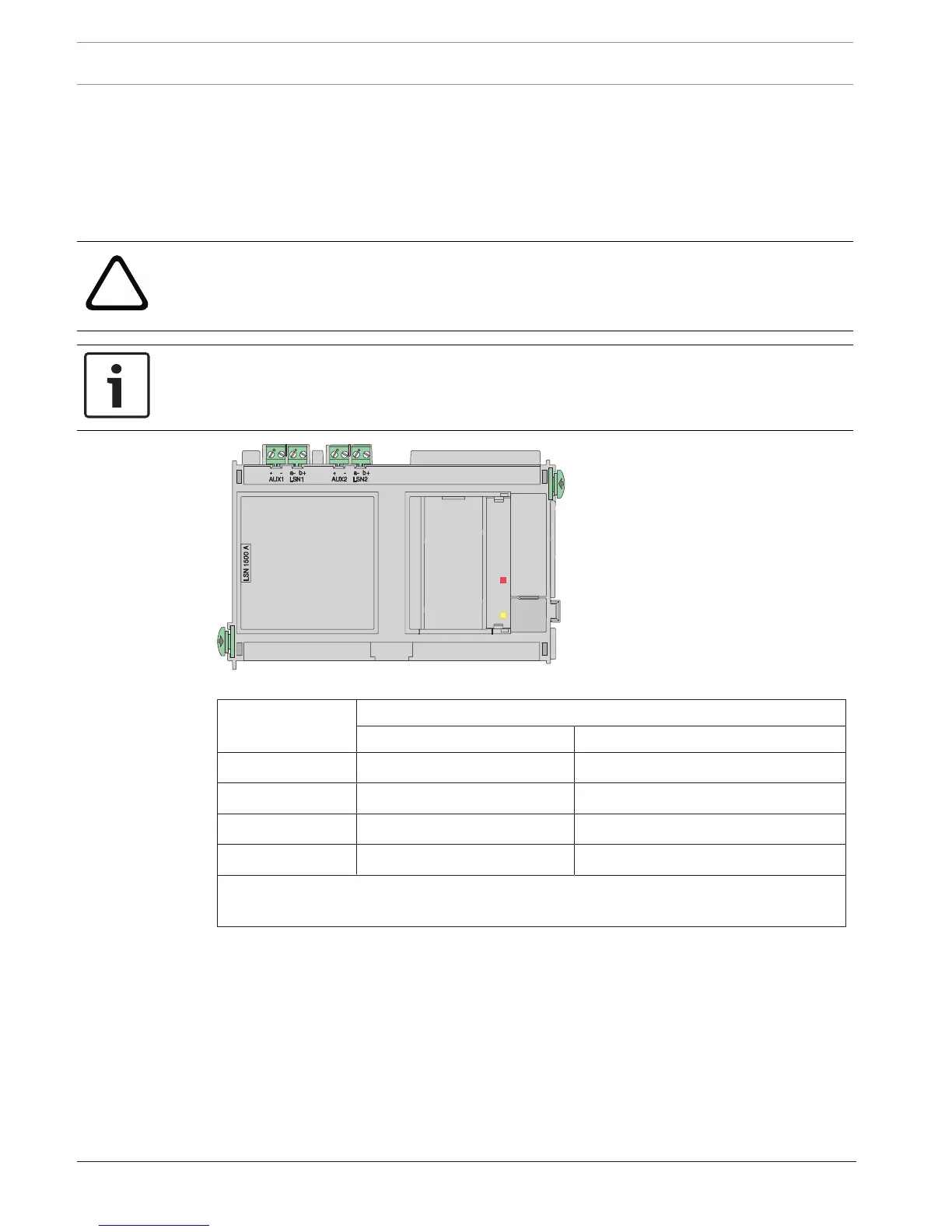

Figure4.67: LSN1500A LSN improved Module 1500mA
Labeling Connection
LSN loop LSN stub
AUX1 + | AUX1 - Auxiliary power supply Auxiliary power supply for stub1
LSN a1- | LSN b1+ LSNa1- / LSNb1+ outgoing Stub1 LSNa1-/stub 1 LSNb1+
AUX2 + | AUX2 - Auxiliary power supply* Auxiliary power supply for stub 2
LSN a2- | LSN b2+ LSNa2- / LSNb2+ incoming Stub2 LSNa2-/stub 2 LSNb2+
* The auxiliary voltage may only be fed back to AUX2 when isolators (ERT technology) are
used in the loop (suitable components include YBO-R/SCI isolators).
The technical data can be found in LSN1500A LSN improved Module 1500mA, page 154.

Bosch FPA-5000 Specifications

General

Max Number of Detectors per Loop	254
Display	LCD
Network Capability	Yes
Power Supply	24 V DC
Operating Temperature	-5°C to +50°C
Communication Ports	Ethernet
Humidity Range	95% non-condensing
