No mounting frame is required when using the 482.6mm installation kits.
Front Doors
The CPH0006A, MPH0010A and EPH0012A housings can be equipped with optional
transparent front doors made of impact-resistant plastic, with a lock on the left or right:
– FDT 0000A Front Door Transparent, lock right side
– FDT 0003A Front Door Transparent, lock left side
Scope of Delivery
Housing type Scope of delivery (each x 1)
CPH 0006 A - Housing, painted sheet steel
- Power supply bracket
- Sheet steel front panel with plastic cover
- Accessories pack with installation material
MPH 0010 A - Housing, painted sheet steel
EPH 0012 A - Housing, painted sheet steel
PSF 0002 A - Housing, painted sheet steel
- Power supply bracket
- Cable set for battery connection
PMF 0004 A - Housing, painted sheet steel
- Power supply bracket
- Cable set for battery connection
USF 0000 A - Housing, painted sheet steel
- Mounting plate
The technical data for the frame installation housings can be found in Housings for Frame
Installation, page 146.
2.5 Housings for Wall Mounting

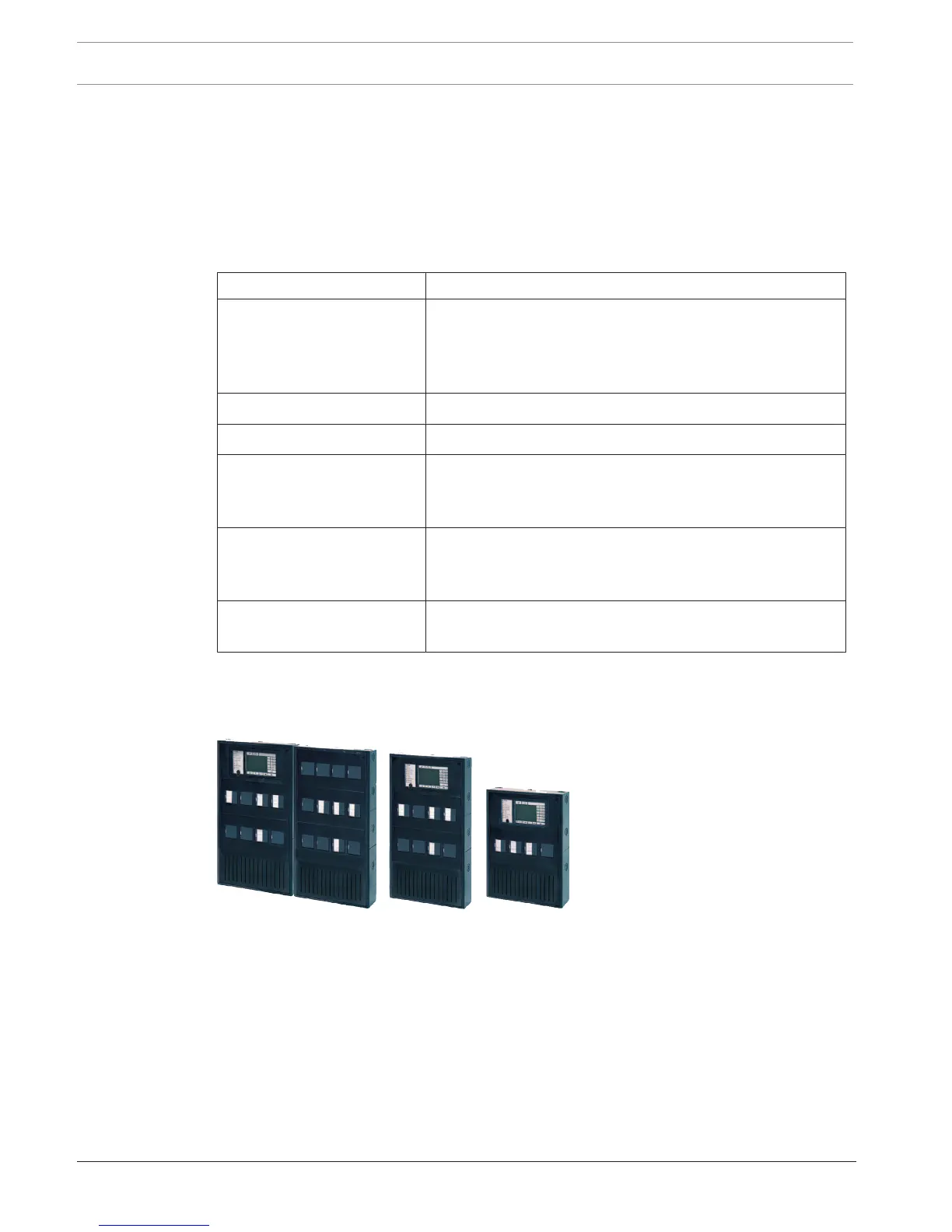

Figure2.6: Housings for wall mounting
Wall mounting housings are screwed directly onto the wall. This reduces the installation depth
by approx. 9cm, although the smaller 12V/28Ah batteries must be used as a result.
The modular system makes it easy to extend the system.
Housing Designs and Combinations
Two wall mounting housings are available as a base unit:
– HCP0006A (for 6 modules), and
– HBC0010A (for 10 modules)
These housings can accommodate an MPCPanel Controller with operating and display unit as
the central element.

Bosch FPA-5000 Specifications

General

Max Number of Detectors per Loop	254
Display	LCD
Network Capability	Yes
Power Supply	24 V DC
Operating Temperature	-5°C to +50°C
Communication Ports	Ethernet
Humidity Range	95% non-condensing
