Bosch FPA-5000 System Information Guide

164 en | Appendix Modular Fire Panel
09.2017 | 11.3 | F.01U.028.089 System Information Bosch Sicherheitssysteme GmbH
8.3 Special Applications
8.3.1 Controlling Extinguishing Systems
The FPA enables the activation of extinguishing systems via the extinguishing interface
described in VDE0833 Part2 or by the VdS (standard interface SST in line with VdS Guideline
2496). Connection occurs either at the panel using the RMH0002A Relay Module for mains
power or in the field via the FLM‑420‑RLE Interface Module.
For each panel, a maximum of 8 extinguishing panels can be activated in each case via an
RMH0002A Relay Module for mains power. For each LSN loop, a maximum of 8 extinguishing
systems can be activated in each case via an FLM‑420‑RLE Interface Module.
The requirement is for a maximum of one extinguishing area to fail in the case of a system
fault. This means that from the second extinguishing area, there must be a redundant MPC
panel controller.
If several FLM-420-RLE Interface Modules are used to control the extinguishing system in each
LSN loop, in addition to the redundant panel controller, the associated LSN0300A or
LSN1500A module must also be duplicated.
LSN 0300 A
AUX1 LSN1 AUX2 LSN2
+ – a– b+ + – a– b+
b1+ a- b2+
LSN
REL1
FB2
FB1
NO
COM
–
+
+
FLM-420-RLE-S
LSN 0300 A
AUX1 LSN1 AUX2 LSN2
+ – a– b+ + – a– b+
b1+ a- b2+
LSN
REL1
FB2
FB1
NO
COM
–
+
+
FLM-420-RLE-S

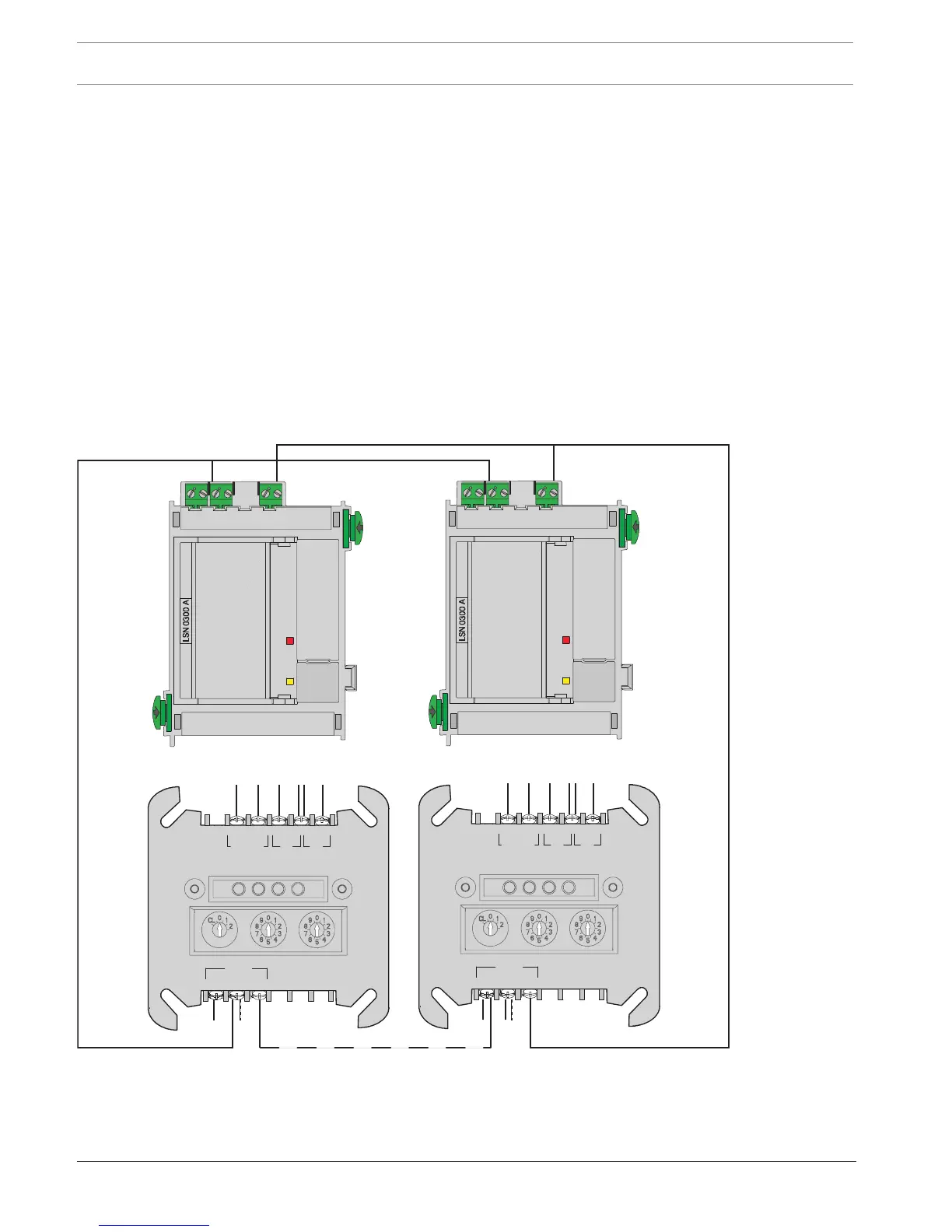

Figure8.1: Several FLM-420-RLE modules in the LSN loop

Bosch FPA-5000 Specifications

General

Max Number of Detectors per Loop	254
Display	LCD
Network Capability	Yes
Power Supply	24 V DC
Operating Temperature	-5°C to +50°C
Communication Ports	Ethernet
Humidity Range	95% non-condensing
